Metal Casing

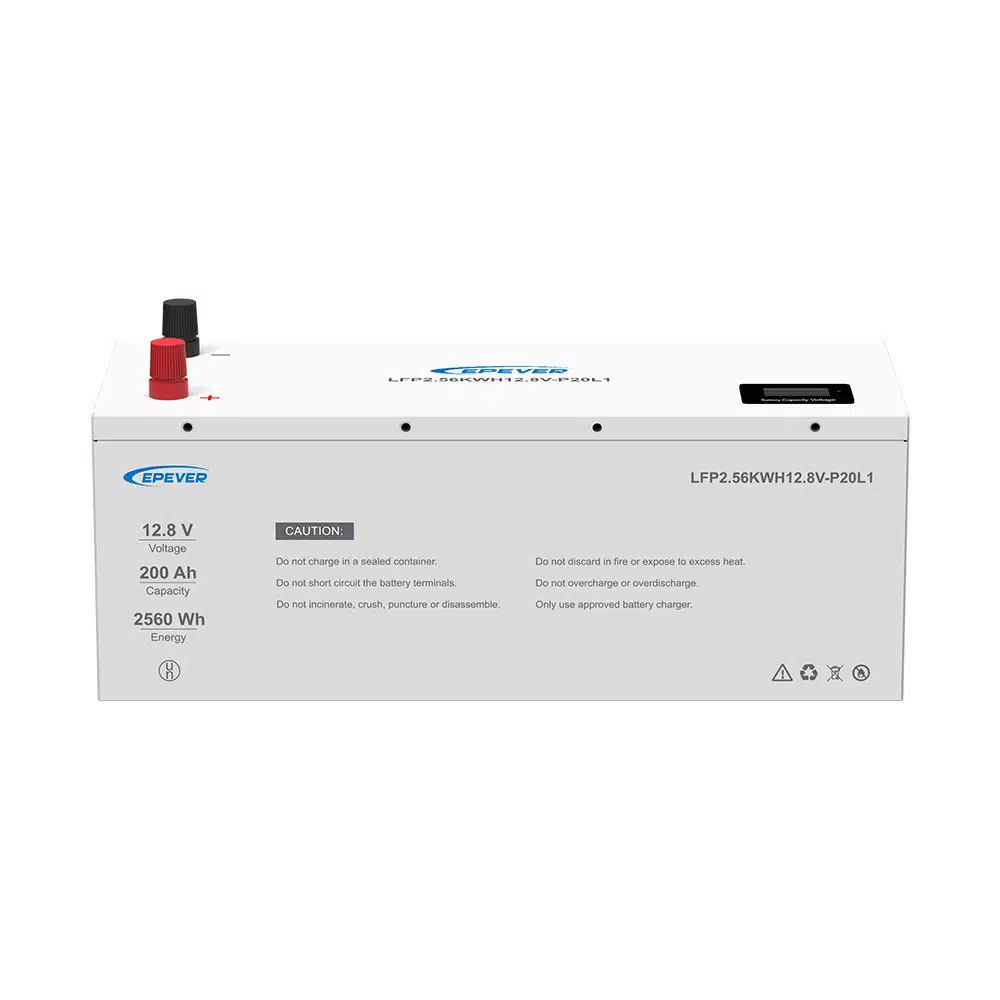

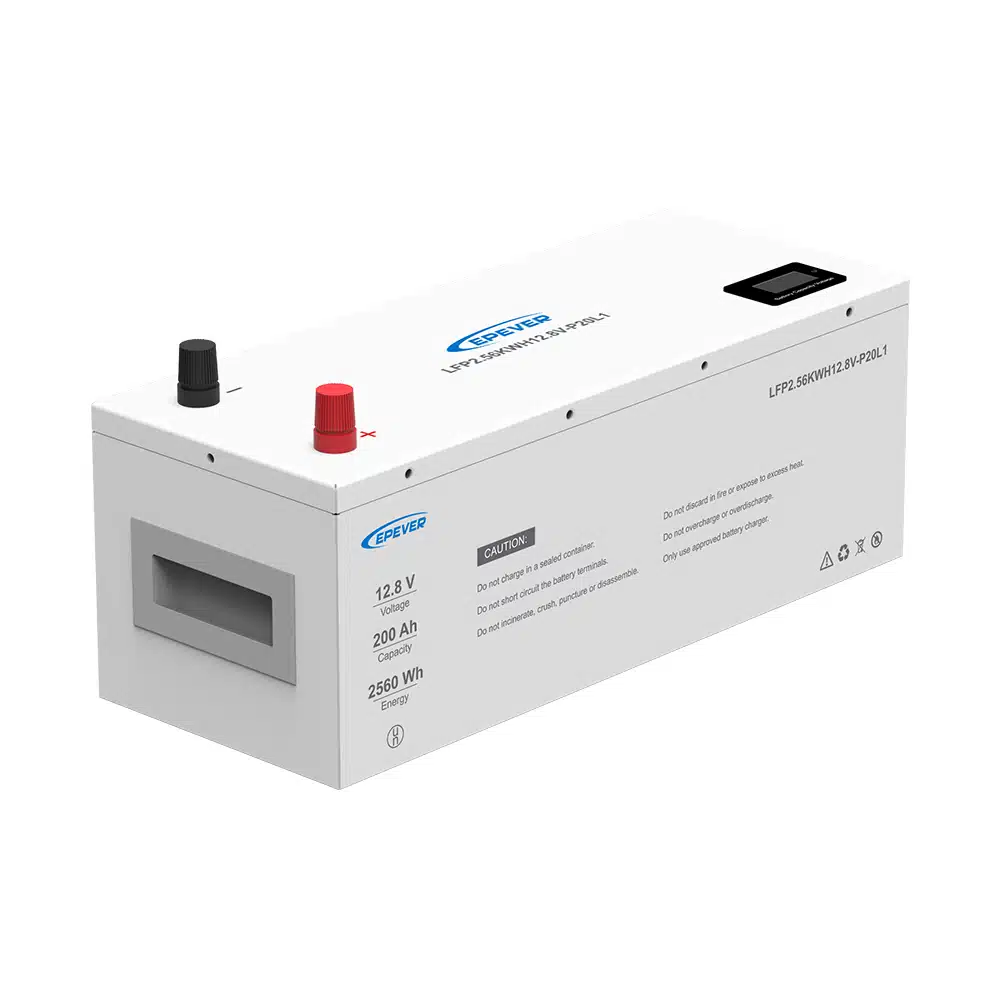

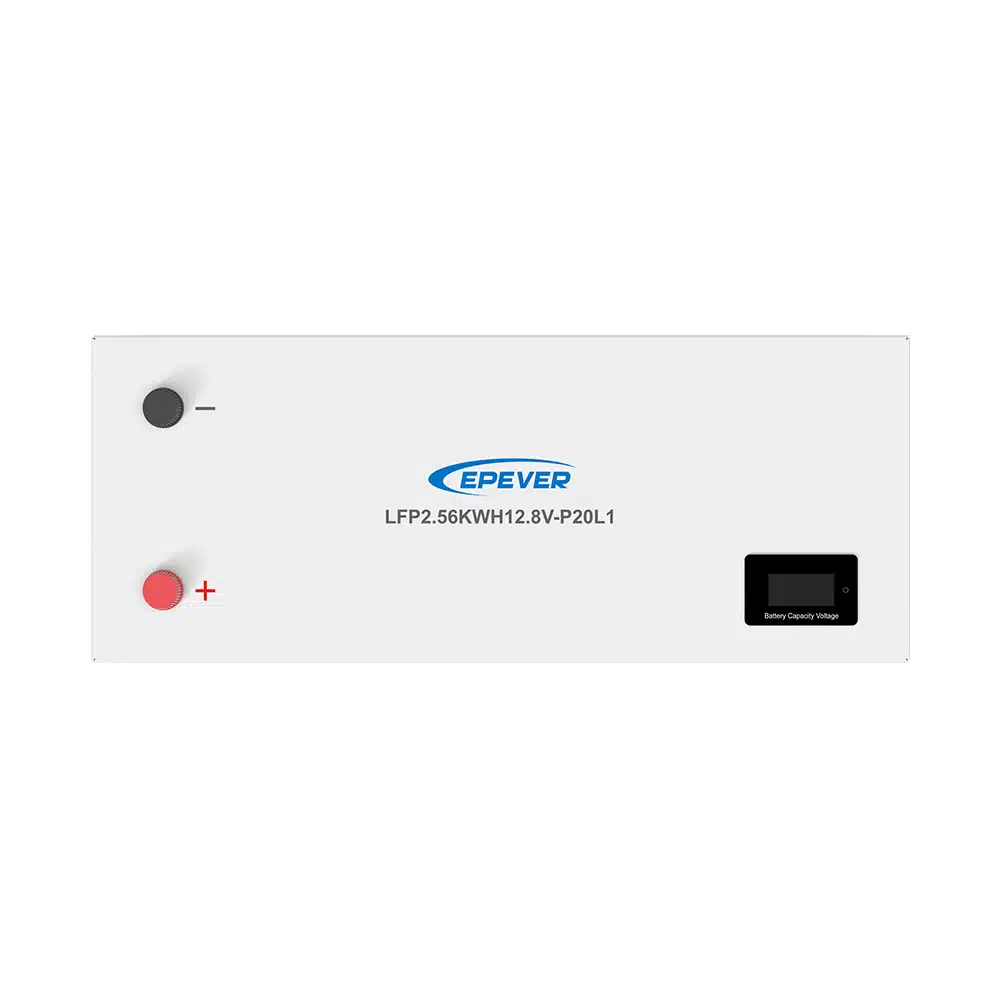

12.8V 200Ah Lithium Battery
EPEVER’s 12.8V 200Ah Lithium Battery: Featuring advanced LiFePO4 cells, offering over 4000 cycles, real-time monitoring capabilities, and comprehensive protection features. Elevate your energy storage to the next level.
Boost your energy storage potential with EPEVER's cutting-edge 12.8V 200Ah Lithium Battery. Crafted with high-grade prismatic LiFePO4 cells, this powerhouse guarantees over 4000 cycles at 80% Depth of Discharge (DOD), ensuring unwavering performance in diverse applications. Monitor state-of-charge (SOC), voltage, temperature, and receive real-time alerts through the intuitive LCD display screen. This battery integrates cell balance functionality and features a sturdy metal case for efficient heat dissipation and safety, offering comprehensive protection against overcharge, over-discharge, over-temperature, low temperature, overcurrent, and short circuits. Compliant with UN38.3, MSDS, IEC62619, and EN IEC61000-6-1/2/3/4 standards, it's a hassle-free, zero-maintenance solution that effortlessly supports up to 4 battery packs in series.
Perfect for solar battery banks, residential solar batteries, RVs, camping, marine applications, and more. Explore competitive home battery prices and connect with top lithium battery manufacturers. Elevate your energy storage game today.
| Model | LFP2.56KWH12.8V-P20L1 |
| Battery Type | LiFeP04 |
| Nominal Voltage (V) | 12.8 |
| Nominal Capacity (AH) | 200 |
| Energy (WH) | 2560 |
| Pack Mode | 4S2P |
| Continuous Discharge Current (A) | 50 |
| Charge Cut-off Voltage (V) | 14.4 |
| Discharge Cut-off Voltage (V) | 10.4 |
| Max.Charge Current (A) | 50 |
| Max.Discharge Current (A) | 100 |
| Peak Discharge Current (A) | 130@10S |
| Recommend Discharge Current (A) | 50 |
| Recommend Discharge Depth (%) | 80 |
| Cycle Life | ≥4000 cycles (25°C,0.5C ) 80％ DOD |
| Communication | —— |
| Display | LCD |
| Charge&Discharge Temperature (°C) | Charge: 0°C~+55°C I Discharge: -20°C~+60°C |
| Optimal Storage Temperature (°C) | 5°C ~ +35°C |
| Recommend Storage Humidity | 20%~80% |
| Terminal | M8 |
| Dimensions (W*H*D) (mm) | 450*180*166 |
| Weight (Kg) | 12±0.5 |
| Transportation | UN38.3, MSDS, IEC62619, EN IEC61000-6-1/2/3/4 |
| IP Class | IP20 |
DATASHEET
EPEVER_DataSheet_LFP2.56KWH12.8V-P20L1
MANUAL
EPEVER_Manual_LFP2.56KWH12.8V-P20L1
Product Highlights
A-grade brand-new prismatic LiFePO4 cells
≥4000 cycles @80% DOD(25℃, 0.5C)
LCD display screen to monitor cell SOC, voltage, temperature and alarm status
Cell balance function
Metal Case, excellent heat dissipation, more safety
Over charge, over discharge, over temperature, low temperature, over current and short circuit protection
Certificate: UN38.3, MSDS, IEC62619, EN IEC61000-6-1/2/3/4
Easy installation and maintenance free
Max 4 battery packs can be connected in series
