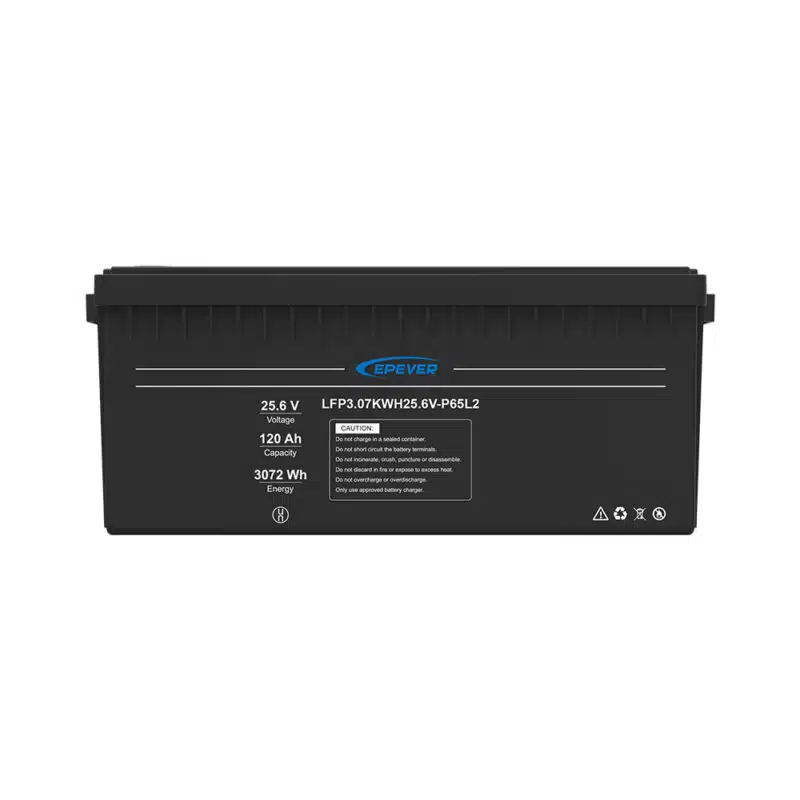

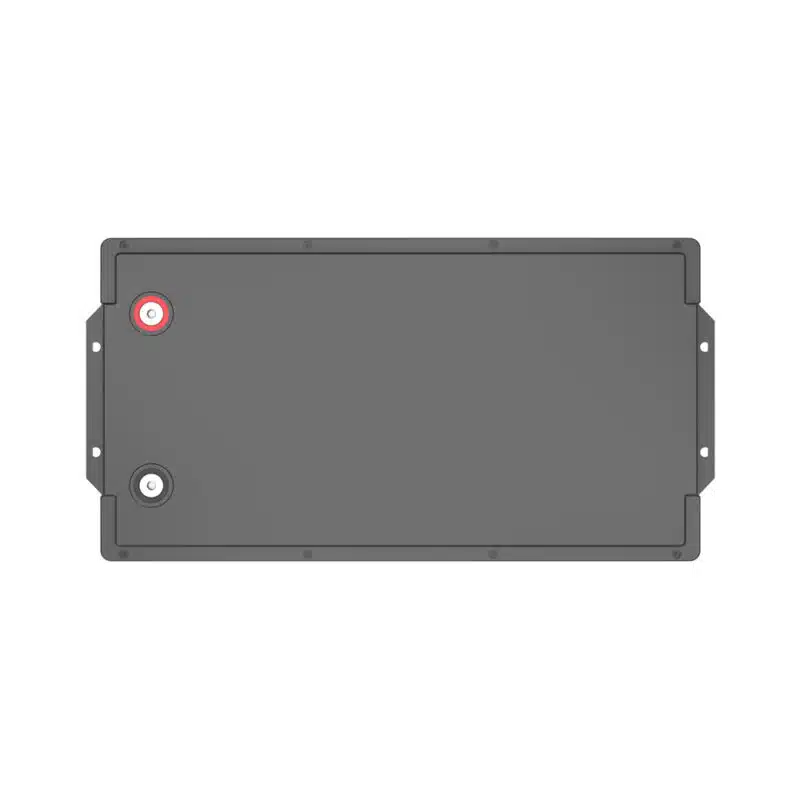

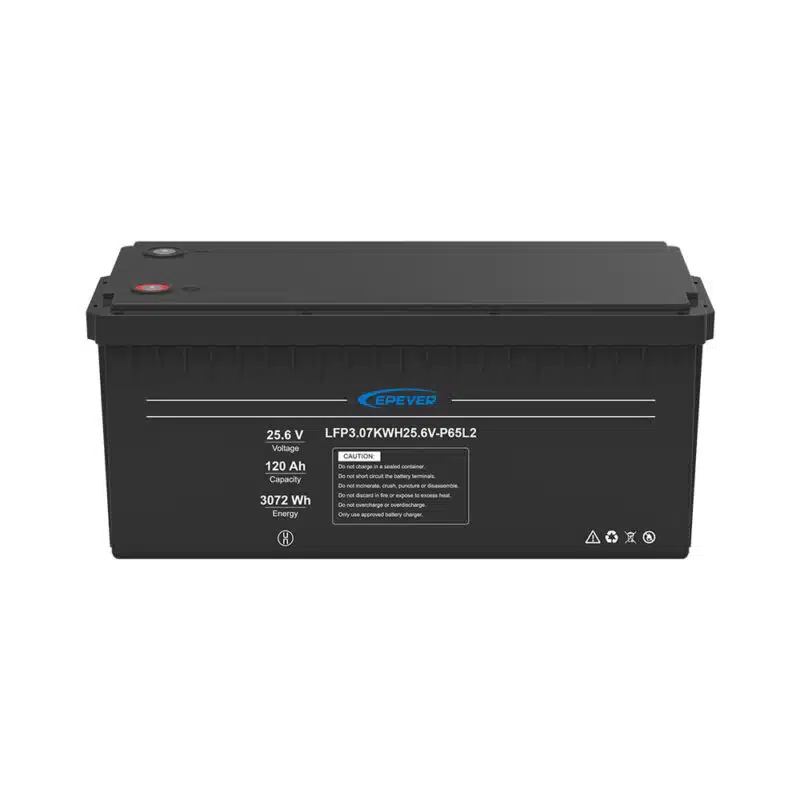

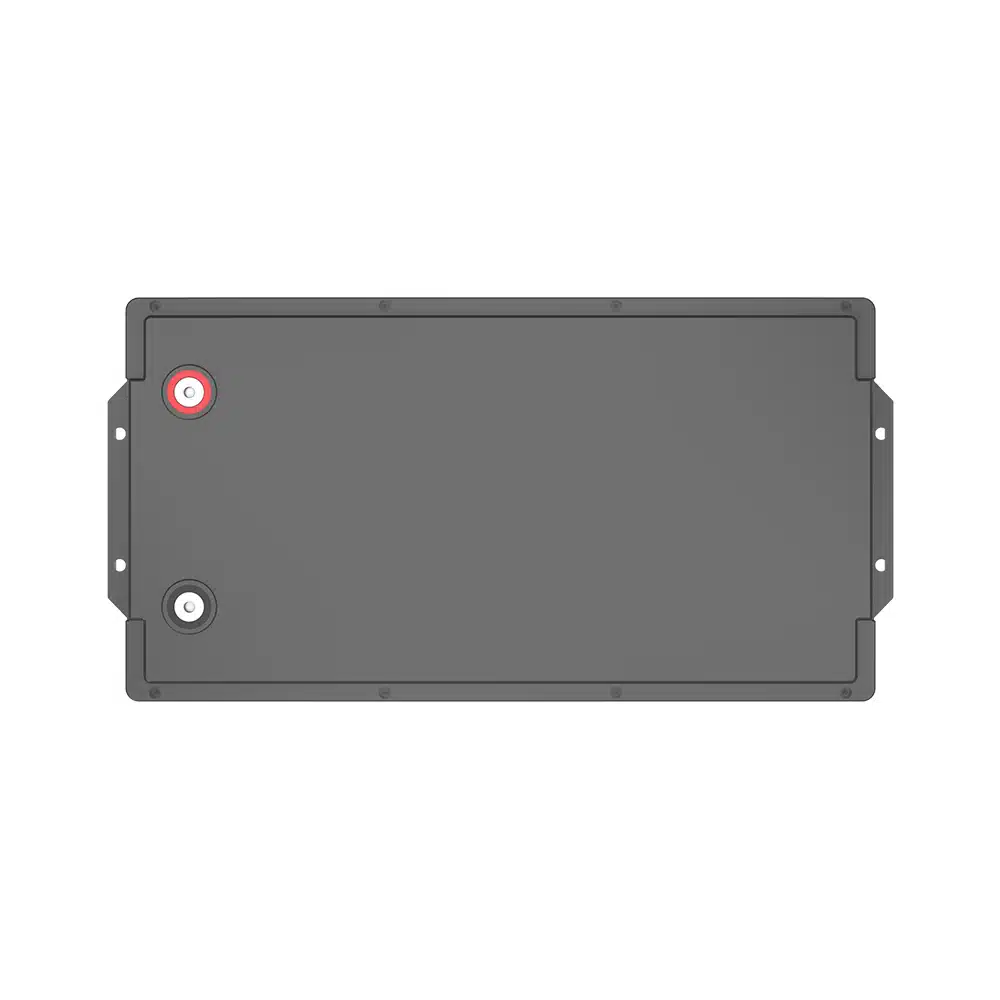

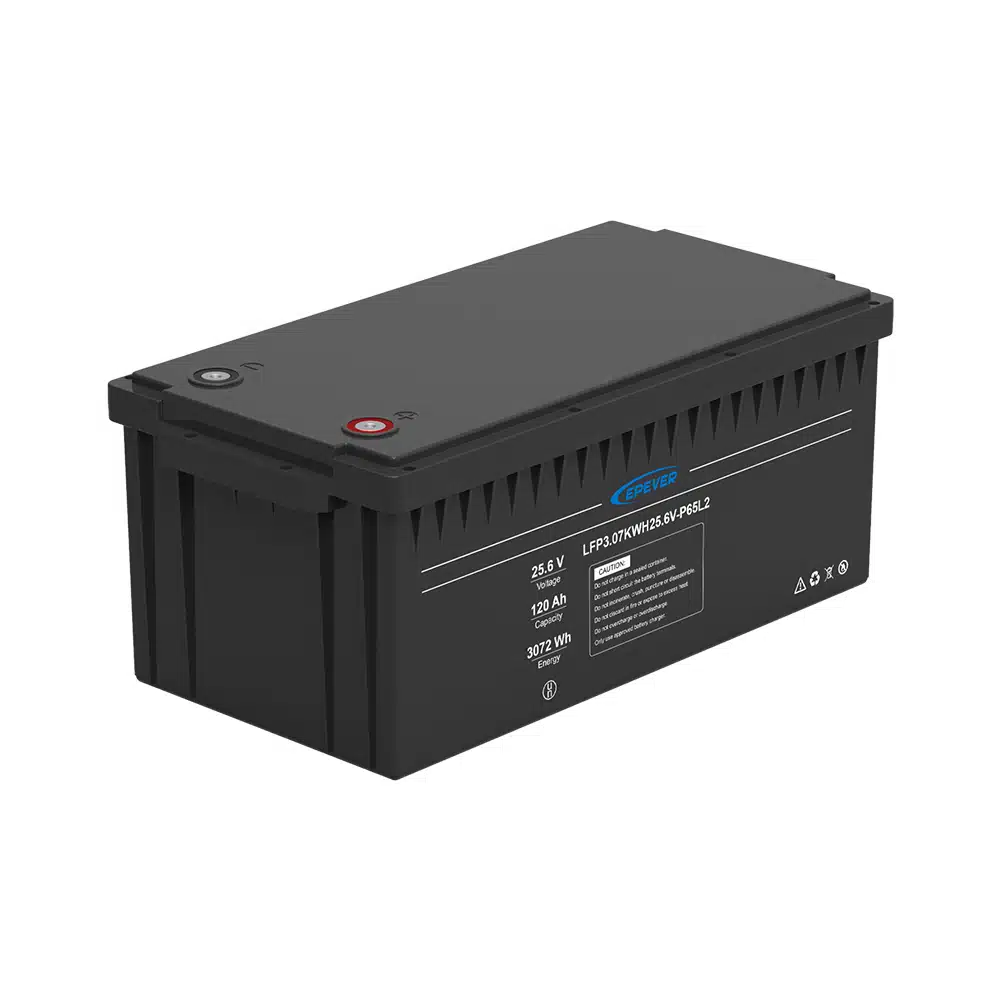

25.6V 120Ah Lithium Battery
Experience unrivaled power and safety with EPEVER’s 25.6V 120Ah Lithium Battery, offering over 4000 cycles, robust safety features, and support for series connectivity.
Unlock the potential of EPEVER premier 25.6V 120Ah Lithium Battery, meticulously crafted with A-grade prismatic LiFePO4 cells to ensure over 4000 cycles at 80% DOD (25℃, 0.5C). This high-performance battery guarantees balanced cell functionality and multiple protective measures, encompassing overcharge, over-discharge, over-temperature, low-temperature, over-current, and short-circuit safeguards. With seamless installation and maintenance, our IP65-rated battery delivers impeccable safety, certified by UN38.3 and MSDS. Elevate your capacity by connecting up to 2 battery packs in series, offering versatile scalability for diverse energy needs.
This advanced solution caters to various applications such as solar battery storage, home backup systems, residential solar applications, RVs, camping, marine, and emergency power setups, ensuring a reliable and sustainable power supply in diverse settings.
Renewable energy enthusiasts will appreciate its high-efficiency performance, durability, eco-friendly design, and extended life cycle. Discover the best-in-class technology, explore competitive pricing, and connect with EPEVER for the battery that guarantees optimal performance for your power solutions.
| Model | LFP3.07KWH25.6V-P65L2 |
| Battery Type | LiFeP04 |
| Nominal Voltage (V) | 25.6 |
| Nominal Capacity (Ah) | 120 |
| Energy (Wh) | 3072 |
| Pack Mode | 8S1P |
| Continuous Discharge Current (A) | 60 |
| Charge Cut-off Voltage (V) | 28.8 |
| Discharge Cut-off Voltage (V) | 20.8 |
| Max.Charge Current (A) | 50 |
| Max.Discharge Current (A) | 100 |
| Peak Discharge Current (A) | 130@10S |
| Recommend Discharge Current (A) | 60 |
| Recommend Discharge Depth (%) | 80 |
| Cycle Life | ≥4000 cycles (25°C,0.5C ) 80％ DOD |
| Communication | - |
| Charge&Discharge Temperature (°C) | Charge: 0°C~+55°C I Discharge: -20°C~+60°C |
| Optimal Storage Temperature (°C) | 5°C ~ +35°C |
| Recommend Storage Humidity | 20%~80% |
| Terminal | M8 |
| Dimensions (W*H*D) (mm) | 523*269*218 |
| Weight (Kg) | 29±0.5 |
| Transportation | UN38.3 MSDS |
| IP Class | IP65 |
DATASHEET
EPEVER_DataSheet_LFP3.07KWH25.6V-P65L2
MANUAL
EPEVER_Manual_LFP3.07KWH25.6V-P65L2
Product Highlights
A-grade brand-new prismatic LiFePO4 cells
≥4000 cycles @80% DOD(25℃, 0.5C)
Cell balance function
Over charge, over discharge, over temperature, low temperature, over current and short circuit protection
Easy installation and maintenance free
IP65, superior safety
Certificate: UN38.3, MSDS
Max 2 battery packs can be connected in series
