Colombian Certified

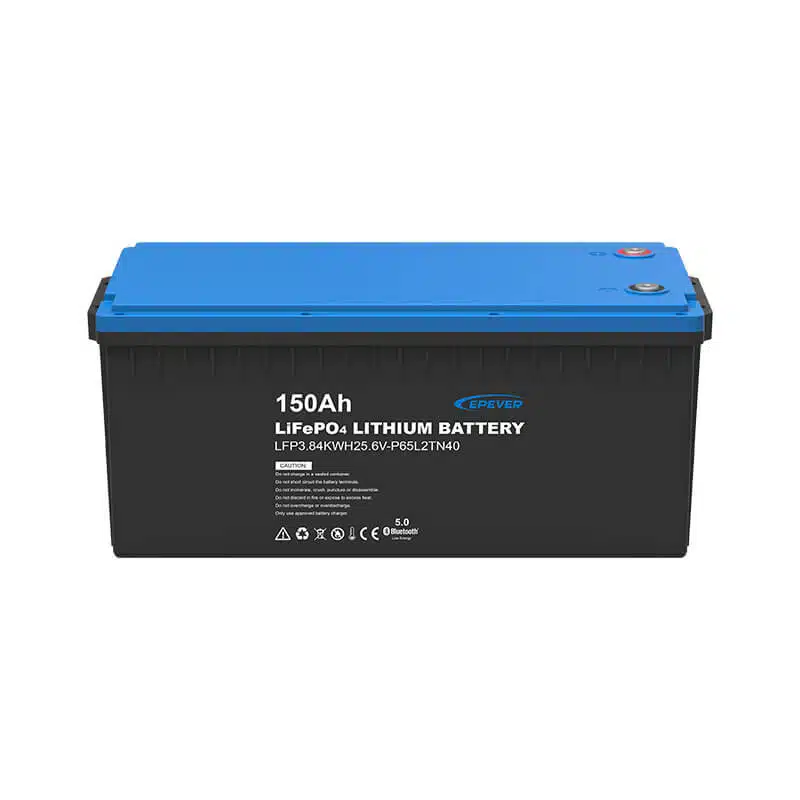

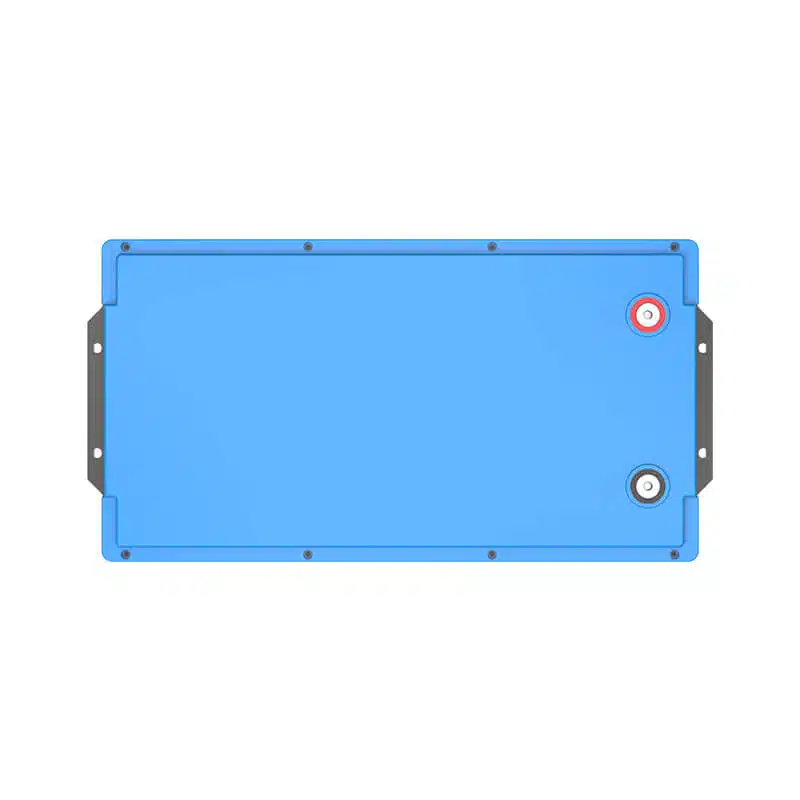

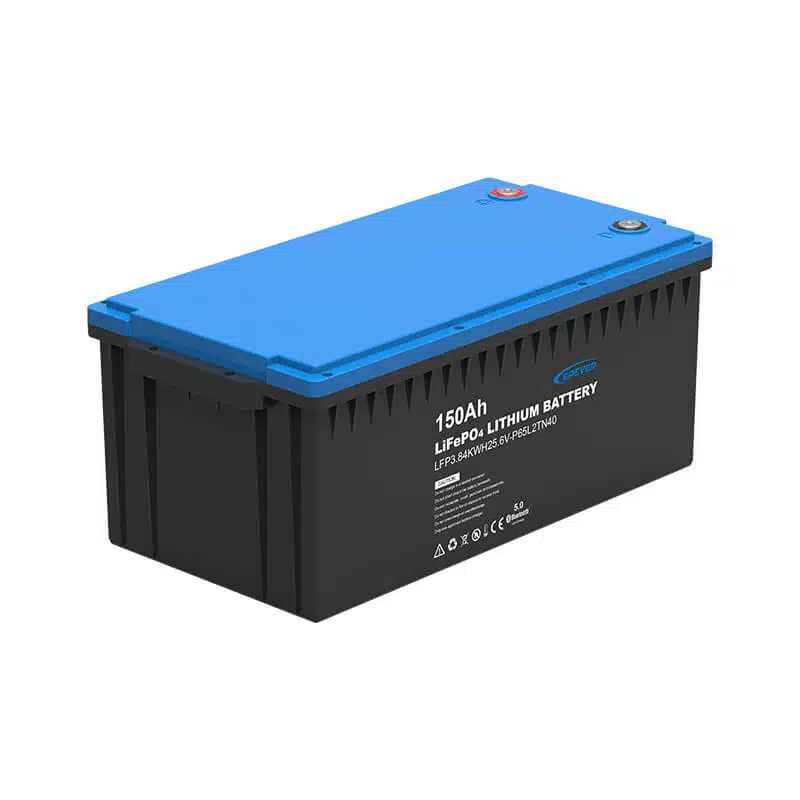

25.6V 150Ah Lithium Battery
Colombian-certified 25.6V 150Ah lithium battery, offering excellent performance and reliability.
This 25.6V 150Ah Lithium Battery is a powerful energy storage solution, boasting Colombian certification and built with a reliable ABS casing. Capable of delivering 100A continuous discharge current, it supports 4000 cycles, making it a durable choice for long-term use. With an IP65 rating, it offers excellent resistance to dust and water, ensuring reliable performance even in challenging environments. Equipped with Bluetooth connectivity, it enables easy system monitoring, and it meets key certifications like UN38.3, MSDS, IEC62619, and ROHS.
| Model | LFP3.84KWH25.6V-P65L2TN40 |
| Battery Type | LiFePO4 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 150Ah |
| Energy | 3840Wh |
| Continuous Discharge Current | 75A |
| Charge Cut-off Voltage | 28.8V |
| Discharge Cut-off Voltage | 20.8V |
| Maximum Charge Current | 150A |
| Maximum Discharge Current | 200A@30min |
| Peak Discharge Current | 240A@2S |
| Recommend Discharge Current | 75A |
| Work Voltage Range | 20.8V~29.2V |
| Open-circuit Voltage | 25.4V~26.8V |
| Internal Resistance | ≤20mΩ |
| Cycle Life | >4000 times (0.5C charge&discharge 80%DOD @25℃) |
| Number of series/parallel | Max 2 battery packs in series
Max 4 battery packs in parallel |
| Certification | UN38.3 MSDS IEC62619 CE-RED ROHS |
| Charge&Discharge Temperature | Charge: 0℃~+55℃
Discharge: -20℃~+60℃ |
| Storage Temperature Range① | -5℃~+0℃/35℃~+45℃ (≤2 months)
5℃~+35℃（≤3 months,optimum storage temperature) 15℃~+35℃ (≤6 months) |
| Relative Humidity | 60%±20% RH |
| Connect Terminal | M8 |
| Dimension (L x W x H) | 522mm*268mm*218mm |
| Net Weight | 30.7±0.5KG |
| IP Class | IP65 |
| Warranty | 3 years (See warranty agreement for details) |
DATASHEET
EPEVER_DataSheet_LFP3.84KWH25.6V-P65L2TN40-Colombia
MANUAL
EPEVER_Manual_LFP3.84KWH25.6V-P65L2TN40-Colombia
Product Highlights
A grade brand new prismatic LiFePO4 cells
Cell balance function
＞4000 cycles @80% DOD(25℃, 0.5C )
IP65, ABS case, more safety
Overcharge, over-discharge, over temperature, low temperature, over current and short circuit protection
Certificate: UN38.3, MSDS, IEC62619, CE-RED, ROHS
Easy installation and maintenance-free
Supports series and parallel connection
Supports Bluetooth communication
