Colombian Certified

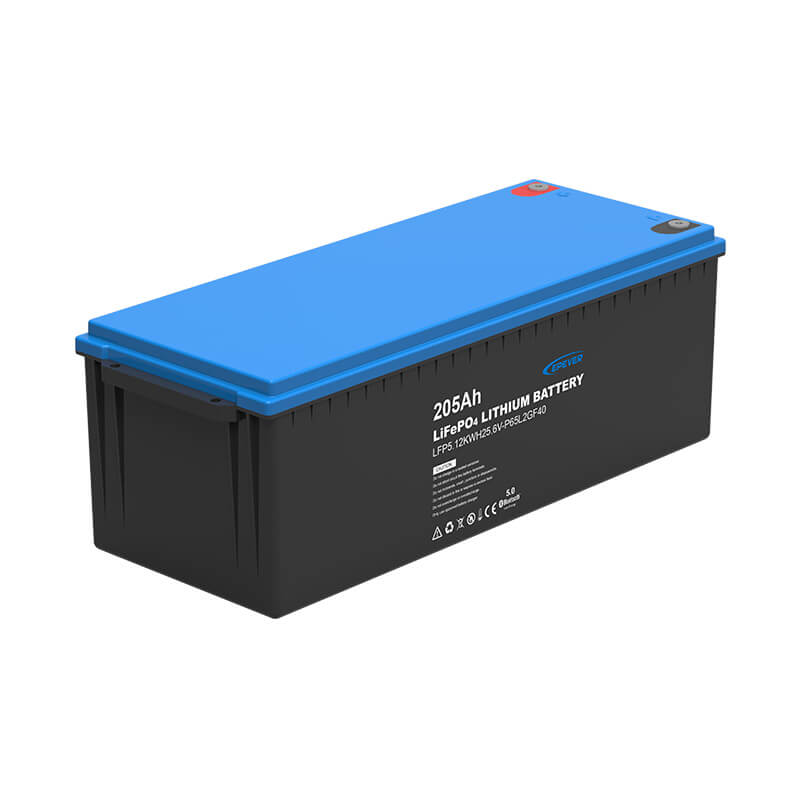

25.6V 205Ah Lithium Battery
Explore our 25.6V 205Ah Versatile Lithium Battery, suitable for a wide range of applications from home to industry.
The 25.6V 205Ah Lithium Battery is engineered for high-capacity energy storage with Colombian certification. Featuring a 100A continuous discharge current and a 4000-cycle life, this battery ensures consistent power delivery for demanding energy applications. Its IP65 rating provides protection from dust and water, making it suitable for both indoor and outdoor environments. Certified by UN38.3, MSDS, IEC62619, and ROHS, this battery offers reliable safety and performance for various energy storage needs.
| Model | LFP5.12KWH25.6V-P65L2GF40 |
| Battery Type | LiFePO4 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 205Ah |
| Energy | 5248Wh |
| Continuous Discharge Current | 100A |
| Charge Cut-off Voltage | 28.8V |
| Discharge Cut-off Voltage | 20.8V |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 200A@30min |
| Peak Discharge Current | 240A@2S |
| Recommend Discharge Current | 100A |
| Work Voltage Range | 20.8V~28.8V |
| Open-circuit Voltage | 25.4V~26.8V |
| Internal Resistance | ≤20mΩ |
| Cycle Life | >4000 times (0.5C charge&discharge 80%DOD @25℃) |
| Number of series/parallel | Max 2 battery packs in series
Max 4 battery packs in parallel |
| Certification | UN38.3 MSDS IEC62619 CE-RED ROHS |
| Charge&Discharge Temperature | Charge: 0℃~+55℃
Discharge: -20℃~+60℃ |
| Storage Temperature Range① | -5℃~+0℃/35℃~+45℃ (≤2 months)
5℃~+35℃（≤3 months,optimum storage temperature) 15℃~+35℃ (≤6 months) |
| Relative Humidity | 60%±20% RH |
| Connect Terminal | M8 |
| Dimension (L x W x H) | 636mm*245mm*218mm |
| Net Weight | 40.7±0.5KG |
| IP Class | IP65 |
| Warranty | 3 years (See warranty agreement for details) |
DATASHEET
EPEVER_DataSheet_LFP5.12KWH25.6V-P65L2GF40-Colombia
MANUAL
EPEVER_Manual_LFP5.12KWH25.6V-P65L2GF40-Colombia
Product Highlights
A grade brand new prismatic LiFePO4 cells
Cell balance function
＞4000 cycles @80% DOD(25℃, 0.5C )
IP65, ABS case, more safety
Overcharge, over-discharge, over temperature, low temperature, over current and short circuit protection
Certificate: UN38.3, MSDS, IEC62619, CE-RED, ROHS
Easy installation and maintenance-free
Supports series and parallel connection
Supports Bluetooth communication
