Rack-Mountable

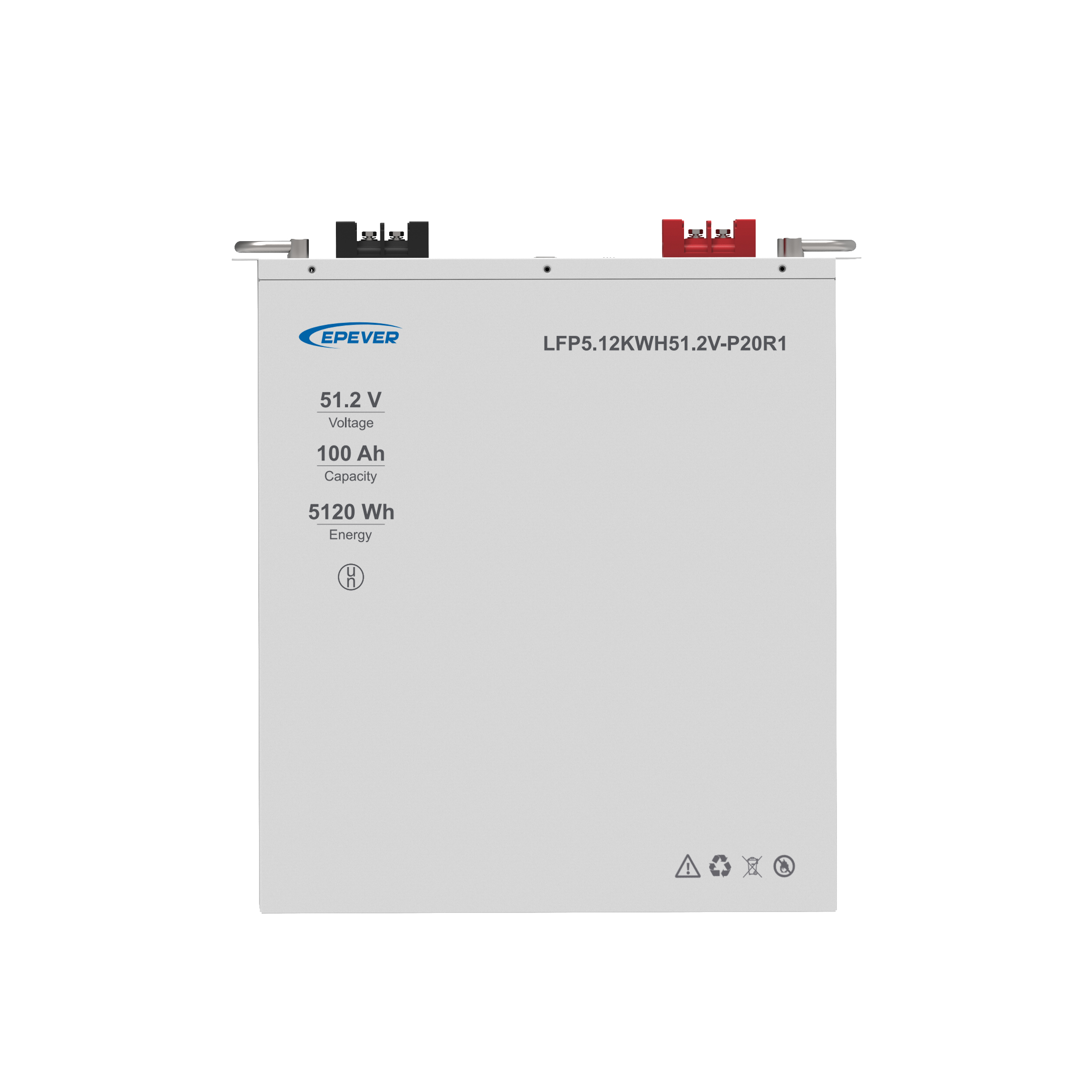

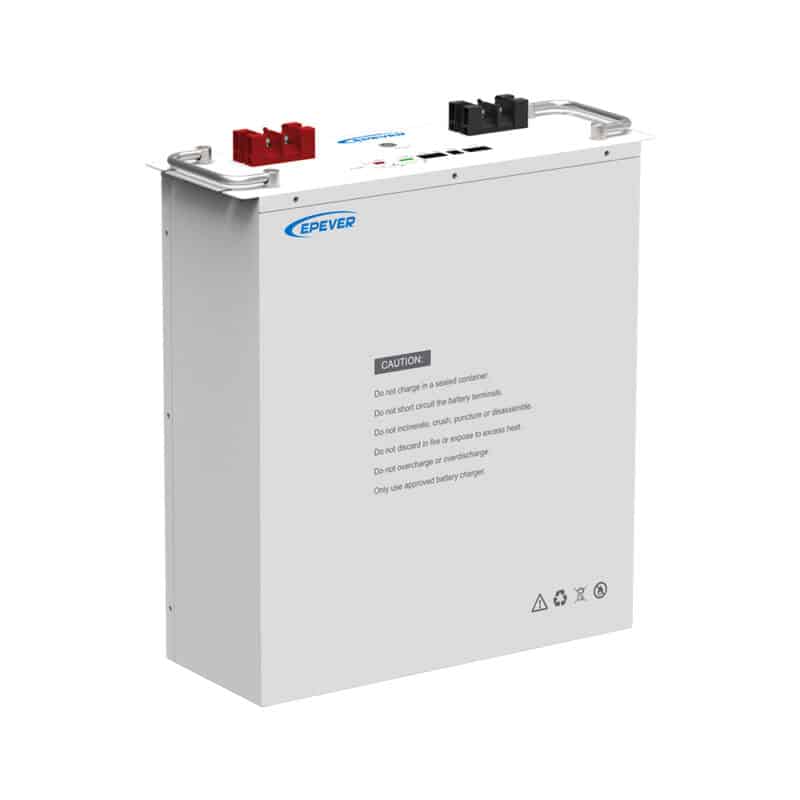

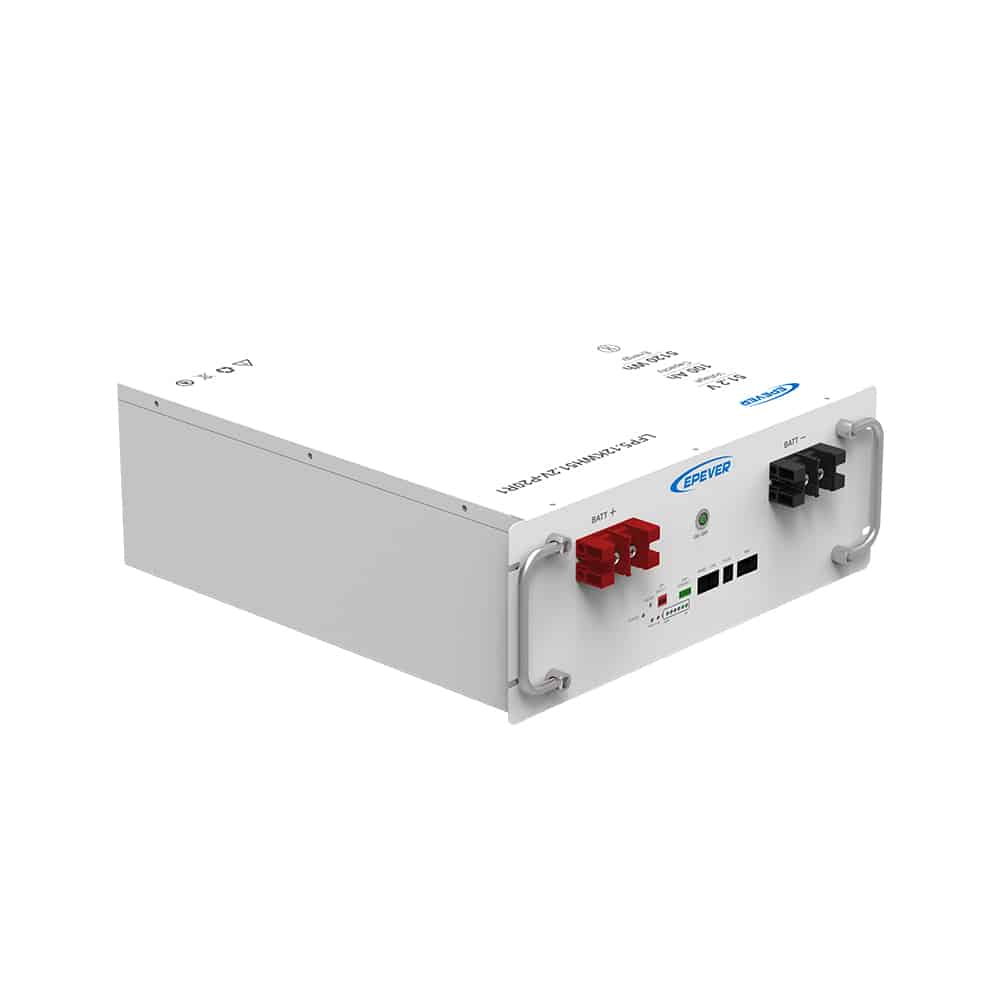

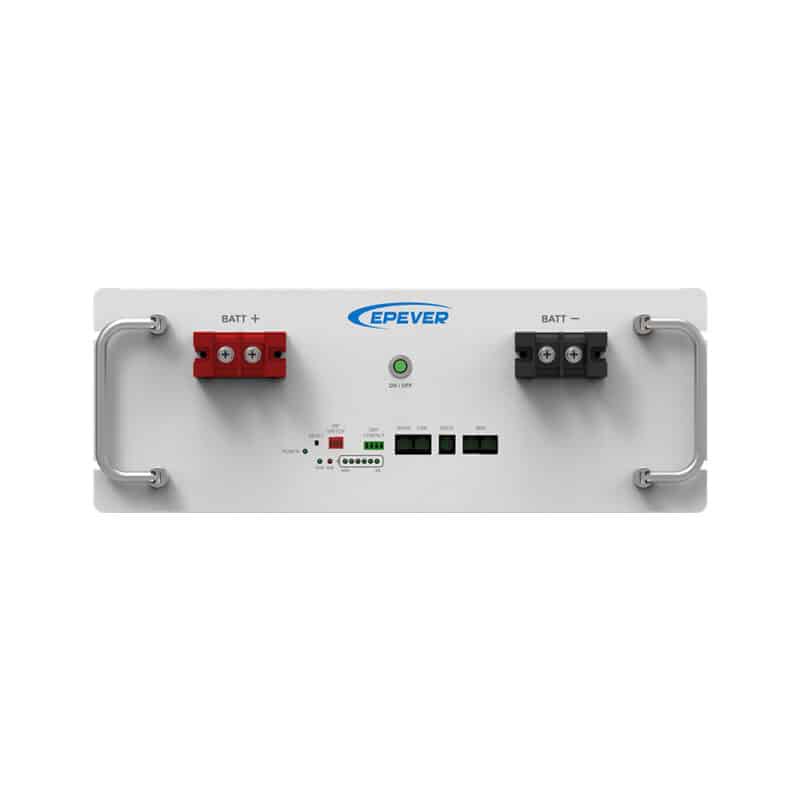

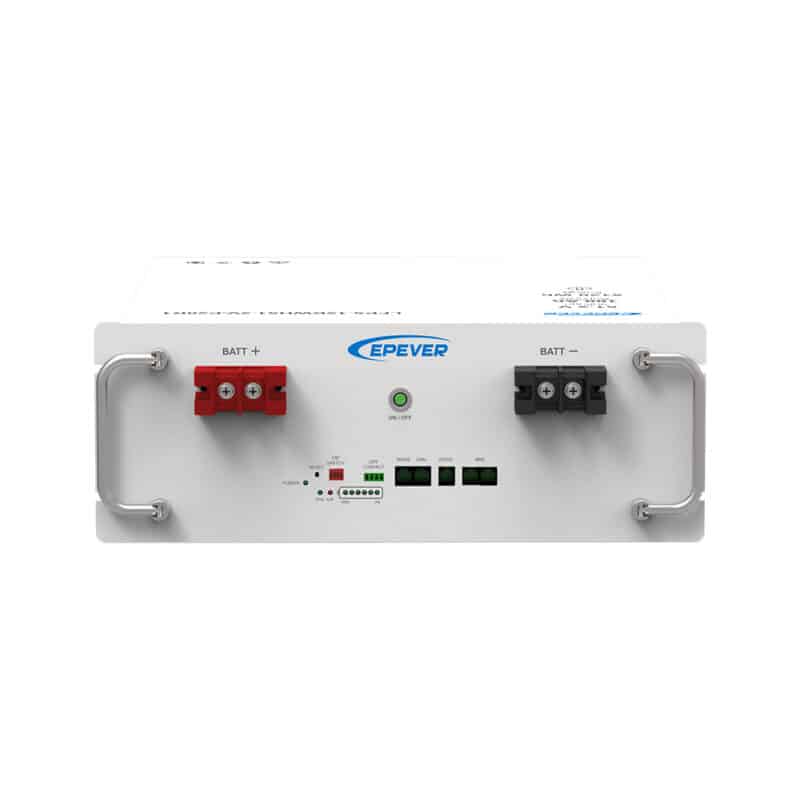

51.2V 100Ah Lithium Battery
Discover the unmatched power and safety of EPEVER 51.2V 100Ah Lithium Battery. With over 4000 cycles, robust safety features, and parallel connectivity support, this battery suits various applications like home battery backup, RV, camping, and emergency power systems. Experience its reliability and high performance for off-grid usage.
Unleash the unmatched potential of EPEVER's 51.2V 100Ah Lithium Battery. Crafted with premium prismatic LiFePO4 cells, it ensures enduring reliability, exceeding 4000 cycles at 80% DOD. This battery boasts intelligent cell balancing and a comprehensive safeguard suite, defending against overcharging, discharging, extreme temperatures, overcurrents, and short circuits. Seamless communication via RS485, CAN, and RS232 interfaces caters to scalable energy solutions, accommodating up to 8 parallel battery packs.
Ideal for solar panel battery banks, home battery backups, residential solar applications, RVs, camping, marine, and emergency power systems. This high-performance, eco-friendly battery comes with a warranty, offering off-grid reliability.
Find the best price from EPEVER, the top battery manufacturer offering maintenance-free solutions today!
| Model | LFP5.12KWH51.2V-P20R1 |
| Battery Type | LiFeP04 |
| Nominal Voltage (V) | 51.2 |
| Nominal Capacity (AH) | 100 |
| Energy (WH) | 5120 |
| Pack Mode | 16S1P |
| Continuous Discharge Current (A) | 50 |
| Charge Cut-off Voltage (V) | 57.6 |
| Discharge Cut-off Voltage (V) | 41.6 |
| Max.Charge Current (A) | 50 |
| Max.Discharge Current (A) | 100 |
| Peak Discharge Current (A) | 130@10S |
| Recommend Discharge Current (A) | 50 |
| Recommend Discharge Depth (%) | 80 |
| Cycle Life | >4000 cycles (25°C,0.5C ) 80％ DOD |
| Communication | RS485 CAN RS232 |
| Display | LED |
| Charge&Discharge Temperature (°C) | Charge: 0°C~+55°C I Discharge: -20°C~+60°C |
| Optimal Storage Temperature (°C) | 5°C ~ +35°C |
| Recommend Storage Humidity | 20%~80% |
| Terminal | M6 |
| Dimensions (W*H*D) (mm) | 502*482*176 |
| Weight (Kg) | 49±1 |
| Transportation | UN38.3, MSDS, IEC62619, EN IEC61000-6-1/2/3/4 |
| IP Class | IP20 |
DATASHEET
EPEVER_DataSheet_LFP5.12KWH51.2V-P20R1
MANUAL
EPEVER_Manual_LFP5.12KWH51.2V-P20R1
Product Highlights
A-grade brand-new prismatic LiFePO4 cells
>4000 cycles @80% DOD(25℃, 0.5C)
Cell balance function
Support RS485, CAN，RS232 communication
Overcharge, over-discharge, over temperature, low temperature, over current, and short circuit protection
Max 8 battery packs can be connected in parallel
