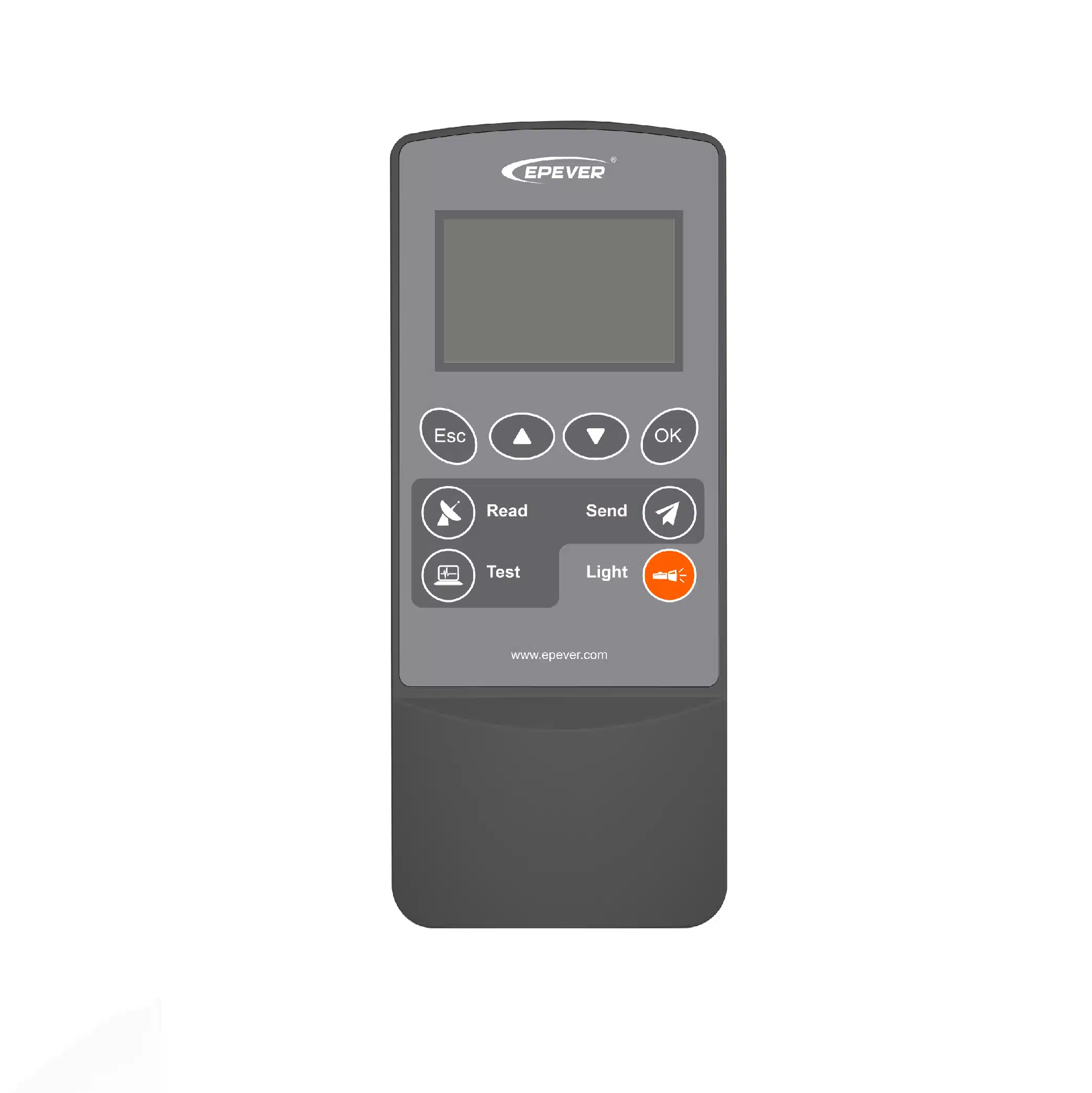

RC-11 2.4G Remote Controller
The RC11, a 2.4G LCD remote controller, is compatible with EPEVER solar street light controllers. It can program the control parameters and check the working status.
2.4G remote controller is an accessory that is compatible with the road solar controller. The function is to set the system voltage, battery type, control parameters, working time and current of LED lamp, etc, and view the working status of the system and load test function.
| Item | RC-11 | ||||||
| Apply to model | LS-LPLI series Tracer-LPLI series LS-LPLIR series | LS-LPLW series Tracer-LPLW series | |||||
| Battery | 2 batteries (size AA) | ||||||
| Power supply voltage | 3VDC | ||||||
| Communication distance | IrDA ≤10m | Wireless ≤20m | |||||
| Self-consumption | 20uA | ||||||
| Sending consumption | 37mA | ||||||
| Backlight consumption | 3mA | ||||||
| LED consumption(flashlight) | 11mA | ||||||
| Environment temperature | 0～45℃ | ||||||
| Enclosure | IP40 | ||||||
| Overall dimension | 138 × 58 × 21mm | ||||||
| Net weight | 72g | ||||||
EPEVER-Datasheet-RC-11
EPEVER-Datasheet-RC-11
RC11-Manual-EN-V2.0
RC11-Manual-EN-V2.0
Product Highlights
Setting parameter via 2.4G wireless communication
Support 2.4G and IR communication
Fast and easy parameter setting by one-key
Compatible with multi-series solar controllers
Designed with dot-matrix LCD
Equipped with load test mode
