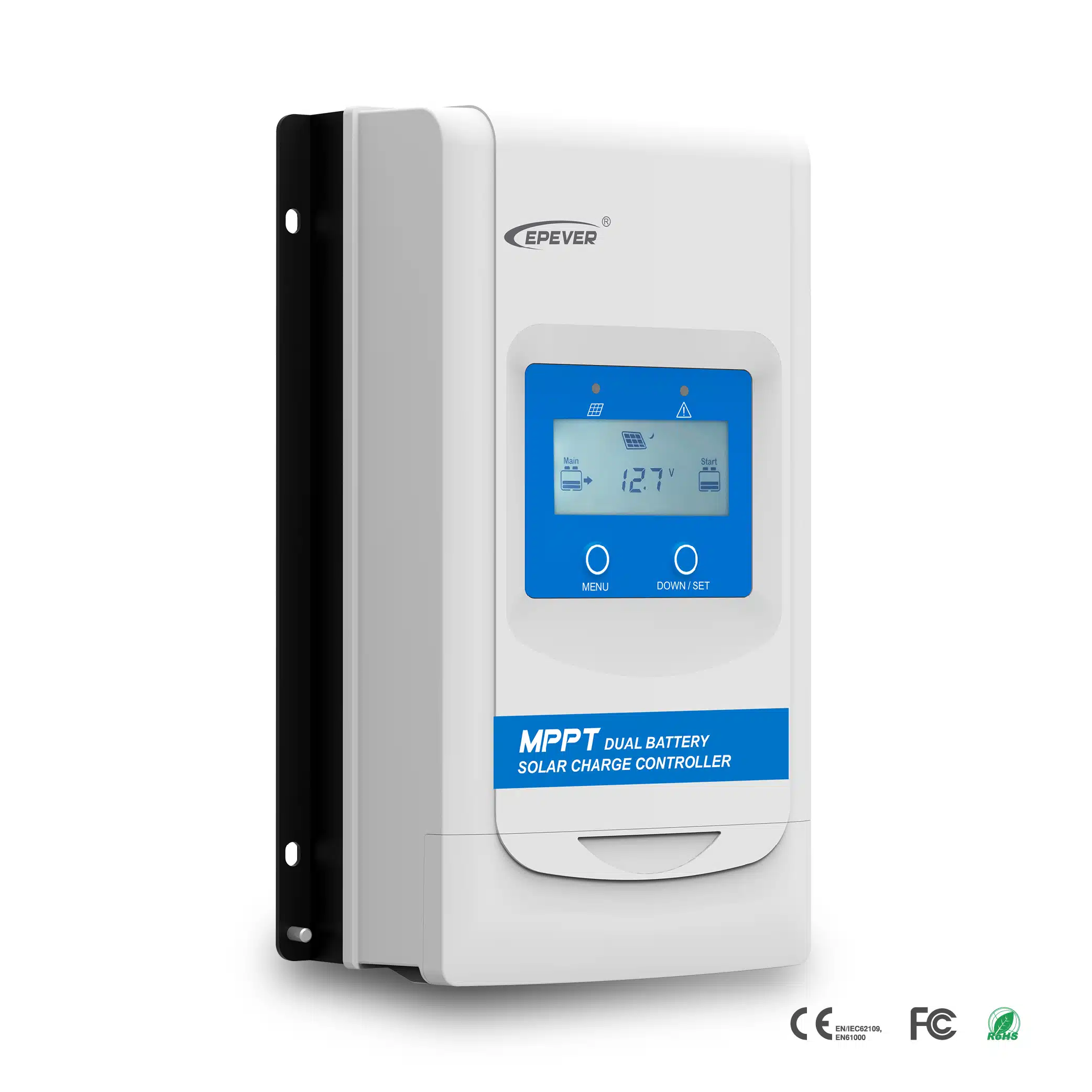

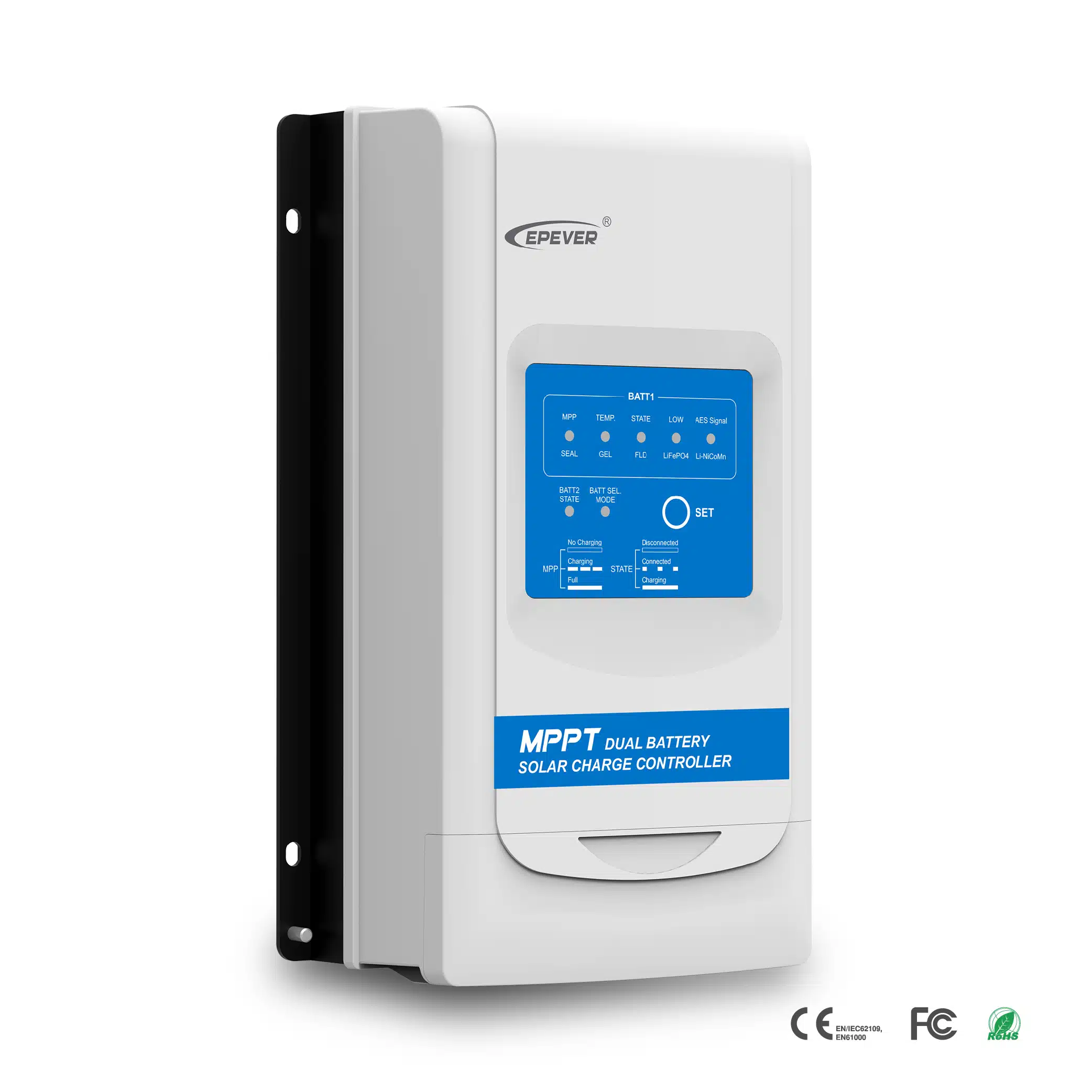

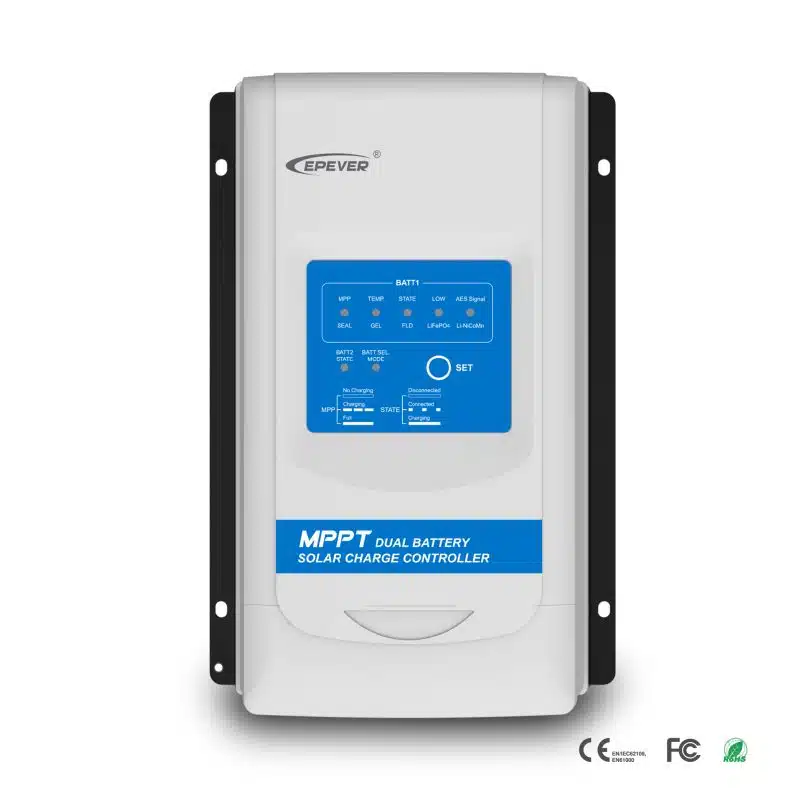

DuoRacer Series(10~30A) Dual Battery MPPT Charge Controller
Dual battery charge controller supports trickle charging(max. 1A) to the start battery(BATT2) of vehicles.
DuoRacer series is perfect for off-grid solar system such as motorhome, RVs, campers, boats, and so on. It charges the main battery (BATT1)for living, and supports trickle charging(max. 1A) to the start battery(BATT2) of vehicles at the same time.
| Model | DR1106N-DDB/DDS | DR2106N-DDB/DDS | DR3106N -DDB/DDS | DR1206N -DDB/DDS | DR2206N -DDB/DDS | DR3206N -DDB/DDS | DR2210N -DDB/DDS | DR3210N -DDB/DDS |
| BATT1 rated voltage | 12VDC | 12VDC | 12VDC | 12/24VDC | 12/24VDC | 12/24VDC | 12/24VDC | 12/24VDC |
| BATT2 rated voltage | 12VDC | 12VDC | 12VDC | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto | 12/24VDC/Auto |
| BATT1 rated charge current | 10A | 20A | 30A | 10A | 20A | 30A | 20A | 30A |
| BATT2 rated charge current | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Battery input voltage range | 8.5๏ฝ16V | 8.5๏ฝ16V | 8.5๏ฝ16V | 8.5๏ฝ32V (*1) | 8.5๏ฝ32V | 8.5๏ฝ32V | 8.5๏ฝ32V | 8.5~32V |
| Max. PV open circuit voltage | 60V๏ผAt minimum operating environment temperature๏ผ(*2) 46V๏ผAt 25โ environment temperature ๏ผ(*3) |
100V๏ผAt minimum operating environment temperature๏ผ(*2) 92V ๏ผAt 25โ environment temperature ๏ผ(*3) |
||||||
| MPP voltage range | (Battery Voltage+2V)๏ฝ36V | (Battery Voltage+2V)๏ฝ72V | ||||||
| Rated charge power | 130W/12V | 260W/12V | 390W/12V | 130W/12V 260W/24V |
260W/12V 520W/24V |
390W/12V 780W/24V |
260W/12V 520W/24V |
390W/12V 780W/24V |
| Max. conversion efficiency | 96.30% | 96.90% | 97.40% | 97.40% | 97.50% | 98% | 97.50% | 98% |
| Full load efficiency | 95.50% | 94.60% | 94.20% | 97% | 96% | 96% | 96% | 96% |
| Self-consumption | 12mA/12V;ย 6mA/12V (Low-power mode) | ย 12mA/12V; 6mA/12V (Low-power mode) | ย 12mA/12V; 6mA/12 (Low-power mode) | 12mA/12V;8mA/24V;4mA/12V;3mA/24V (Low-power mode) |
12mA/12V;8mA/24V;4mA/12V;3mA/24V (Low-power mode) |
12mA/12V;8mA/24V;4mA/12V;3mA/24V (Low-power mode) |
26mA/12V;15mA/24V;19mA/12V;10mA/24V (Low-power mode) |
26mA/12V;15mA/24V;19mA/12V;10mA/24V (Low-power mode) |
| Temperature compensation (*4) | โ3mV/โ/2V(default) | |||||||
| Grounding | Common negative | |||||||
| BATT2 full voltage | 13.8V/12V | 13.8V/12V | 13.8V/12V | 13.8V/12V; 27.6V/24V(default) |
13.8V/12V; 27.6V/24V(default) |
13.8V/12V; 27.6V/24V(default) |
13.8V/12V; 27.6V/24V(default) |
13.8V/12V; 27.6V/24V(default) |
| BATT2 charge return voltage | 13V/12V | 13V/12V | 13V/12V | 13V/12V; 26V/24V(default) |
13V/12V; 26V/24V(default) |
13V/12V; 26V/24V(default) |
13V/12V; 26V/24V(default) |
13V/12V; 26V/24V(default) |
- *Warning: When the lithium battery of 12V is used and the BMS is protected, the lithium battery voltage may increase up to 17V(DR*106N) or 35V (DR*206NใDR*210N) which may damage the load, so please consider the loadโs voltage
- *At minimum operating environment temperature.
- *At 25โ environment temperature.
- *The Temperature compensation coefficient is zero and not changeable when the main battery type is a lithium battery.
| Environmental Parameters | ||||||||
| Operating temperature range |
-20โ~+50โ(DDS)ย -30โ๏ฝ+50โ(DDB) |
-20โ~ +50โ(DDS) -30โ๏ฝ+50โ(DDB) |
-20โ๏ฝ+50โ(DDS) -30โ๏ฝ+50โ(DDB) |
-20โ๏ฝ+50โ(DDS) -30โ๏ฝ+50โ(DDB) |
-20โ๏ฝ+50โ(DDS) -30โ๏ฝ+50โ(DDB) |
-20โ๏ฝ+45โ(DDS) -30โ๏ฝ+45โ(DDB) |
-20โ๏ฝ+50โ(DDS) -30โ๏ฝ+50โ(DDB) |
-20โ๏ฝ+45โ(DDS) -30โ๏ฝ+45โ(DDB) |
| Enclosure | IP33 | |||||||
| Mechanical Parameters | ||||||||
| Dimension(LxWxH)(mm) | 227.2ร143ร58 | 243.7ร158ร63 | 247.2ร165ร68.5 | 227.2ร143ร58 | 243.7ร158ร63 | 247.2ร165ร68.5 | 243.7ร158ร63 | 247.2ร165ร68.5 |
| Net weight | 0.8kg | 1.1kg | 1.4kg | 0.8kg | 1.1kg | 1.4kg | 1.1kg | 1.4kg |
Datasheet
EPEVER-Datasheet-DuoRacer
Manual
DuoRacer-Manual-EN-V2.5
Certificates
Certificate ROHS DuoRacer
Certificates
Certificate FCC DuoRacer
Product Highlights
Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5%
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
The wider range of the MPP operation voltage to improve the PV module utilization
Charging power & charging current limit function(BATT1)
High quality and low failure rate components
Digital circuit control of adaptive three-stage charging mode
BATT1 type can be set via LED/LCD.
Product runs into the low self-consumption mode if PV voltage is lower than 5V and there is no manual operation for some time.
100% charging and discharging in operation environmental temperature range.
LED and LCD display units optional
Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.
It doesn't matter if both are 12V batteries. If both are 24V batteries, it is required to connect the Bat2 first and the Rated Voltage Level of Bat1 has to be set as 24V, or there will be System Voltage Error alarm.
Bat1 can be a lead-acid battery and lithium battery, and Bat2 has to be the lead-acid battery.
Bat1 and Bat 2 can be different types. But both batteries should have the same rated voltage, i.e., both are 12V batteries or 24V batteries.
