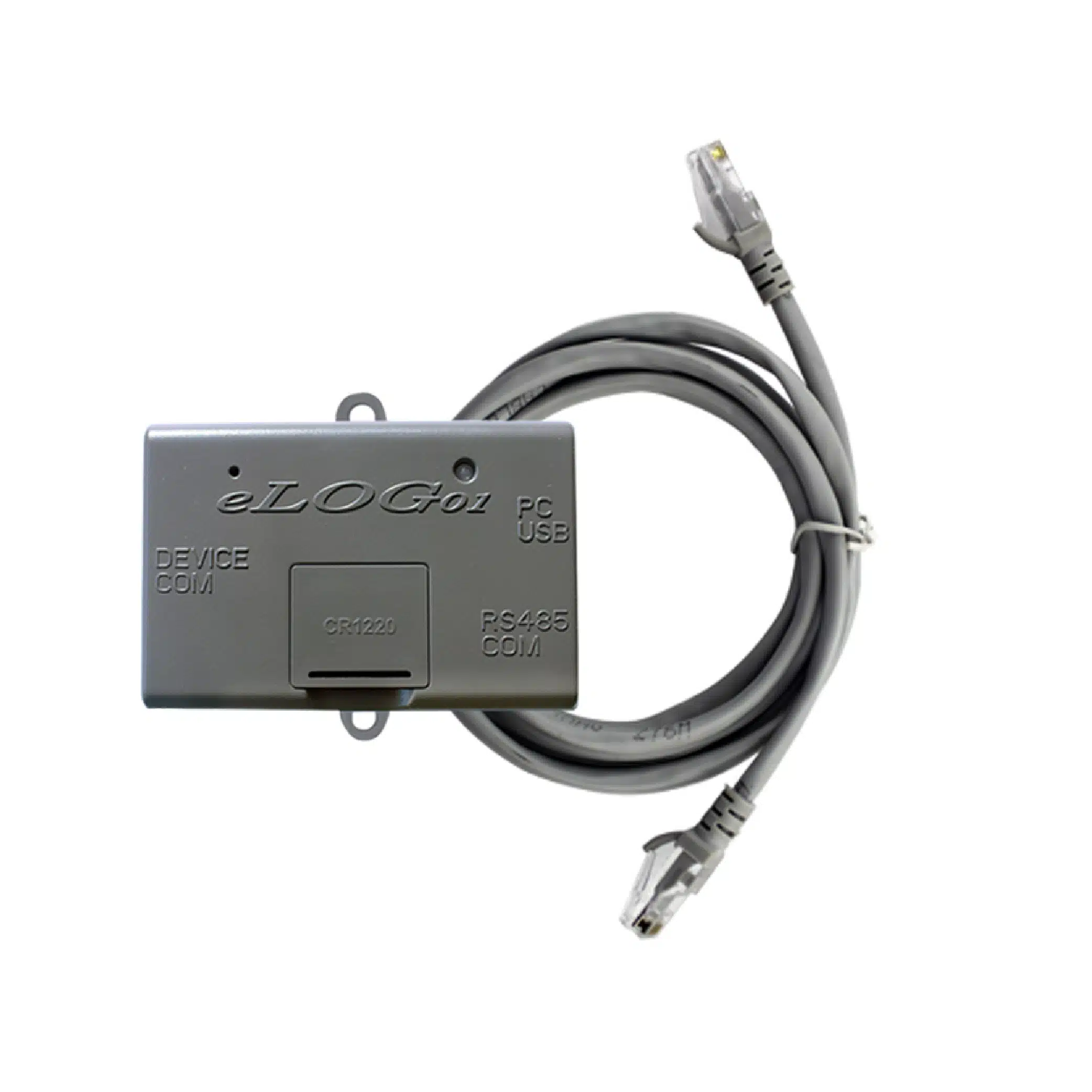

eLOG-01 Logger
eLOG01 is a record accessory matched with the controller of RS485 interface, it has record and monitor functions.
eLOG01 is a record accessory matched with controller of RS485 interface, It can record solar system working data, and also real-time monitor system status via PC software or MT50. Default record interval is every 10 minutes, with a record range of 4 months.
| Item | eLOG01 | |||
| Input Voltage | 4～10VDC Powered up by RS485 interface | |||
| Average power consumption | 0.3W | |||
| Baud rate | 115200 | |||
| Communication | RS485 | |||
| Interface type | 2 RJ45 1 Micro USB | |||
| Record interval | 10 minutes | |||
| Record capacity | 20000 points | |||
| Dimensions | 71×67.62×25.8mm | |||
| Mounting dimension | 57.6mm | |||
| Mounting hole size | Φ4.5 | |||
| Working temperature | -25℃～75℃ | |||
| Humidity | 5-95% (N.C.) | |||
| Enclosure | IP30 | |||
| Net weight | 42g | |||
| Warranty | 2 years | |||
EPEVER-Datasheet-eLOG-01
EPEVER-Datasheet-eLOG-01
eLog-01-SMS-EL-V1.0
eLog-01-SMS-EL-V1.0
Product Highlights
Compatible with PC software & MT50 for real-time monitoring
Connect to PC via USB interfaces with high compatibility
Powered up by controller communication interface
Record capacity: 20000 points(MAX)
LED Indicator design, more intuitive display
