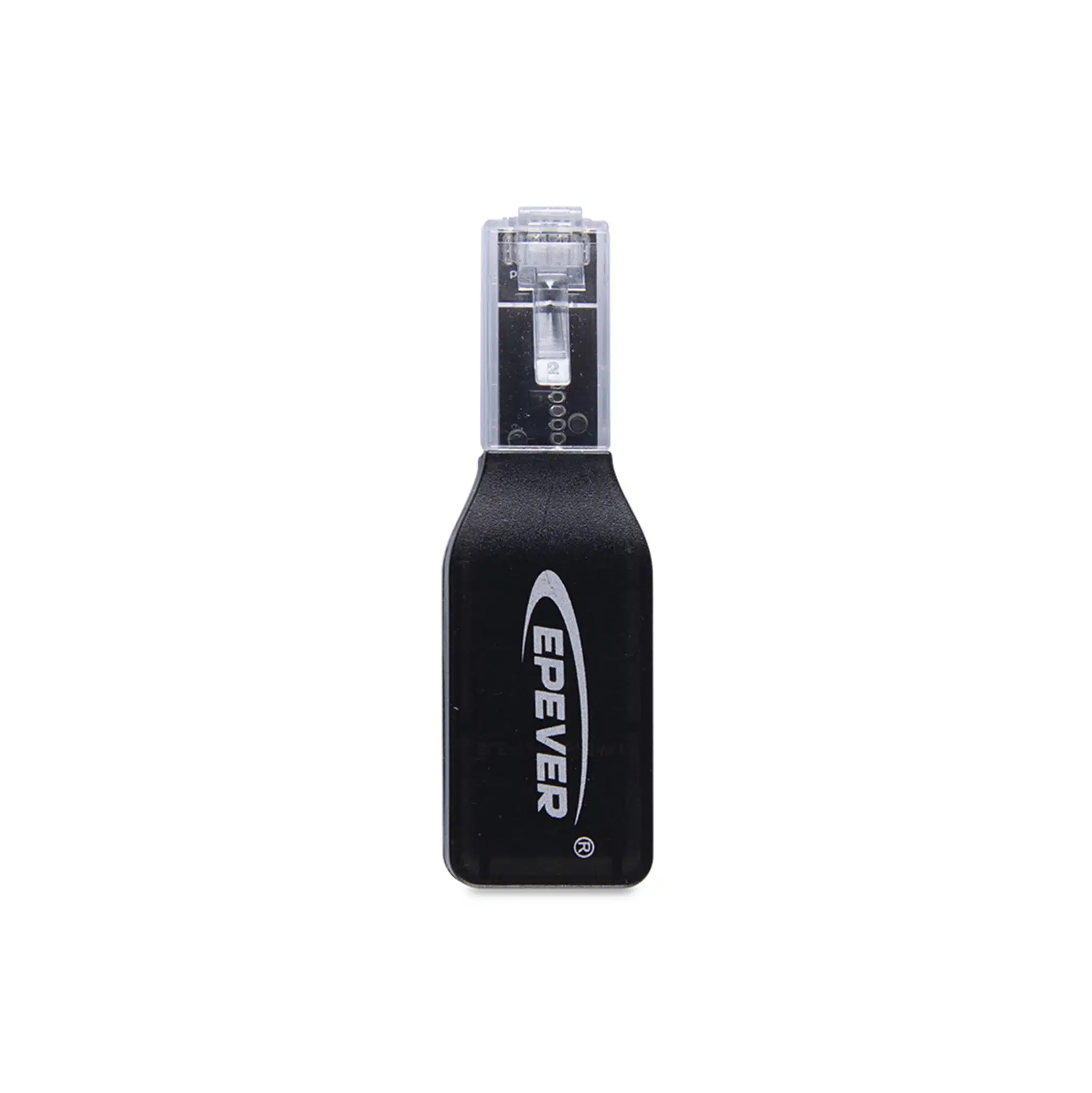

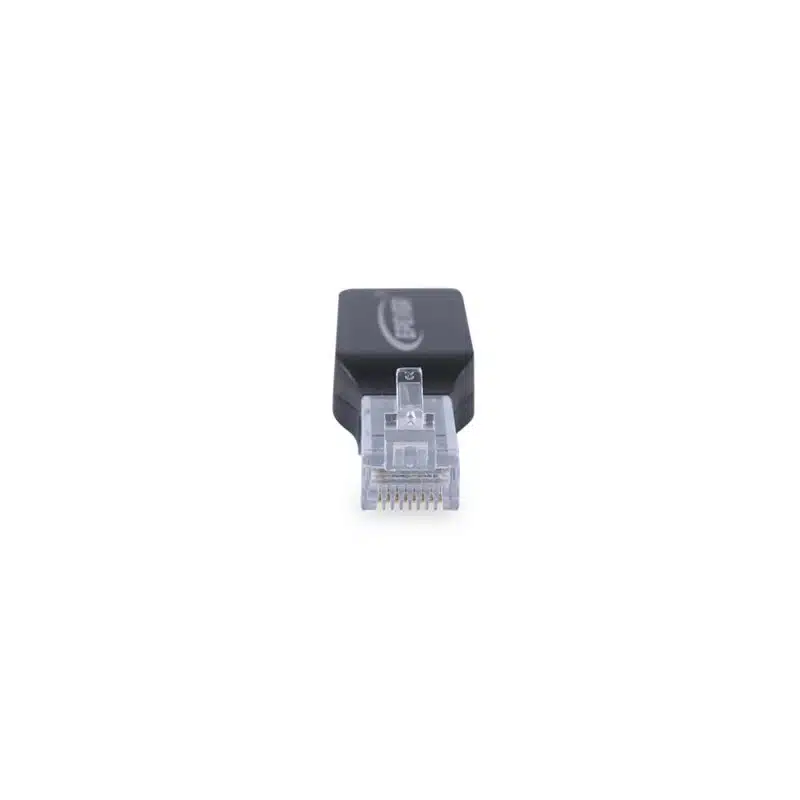

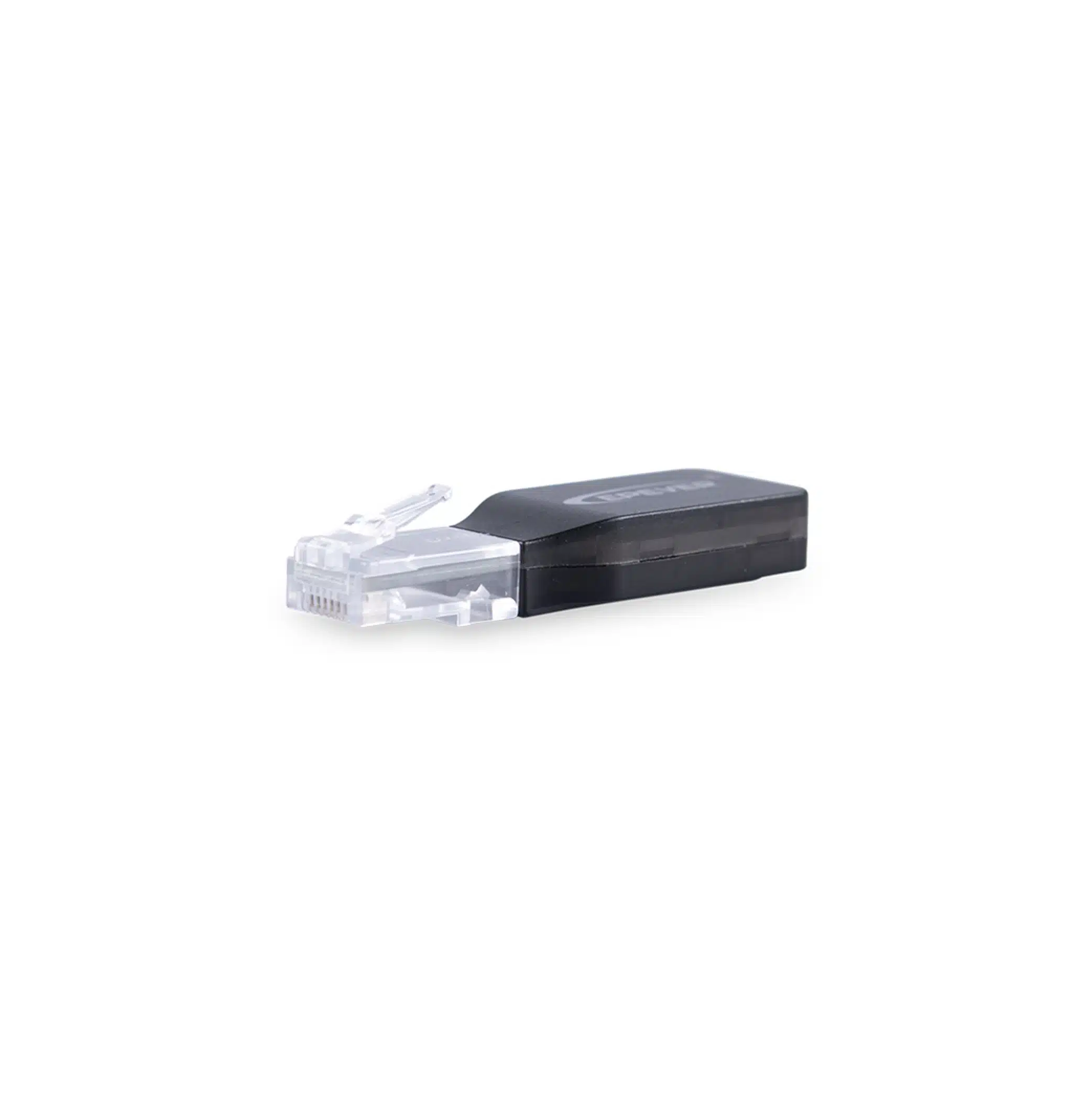

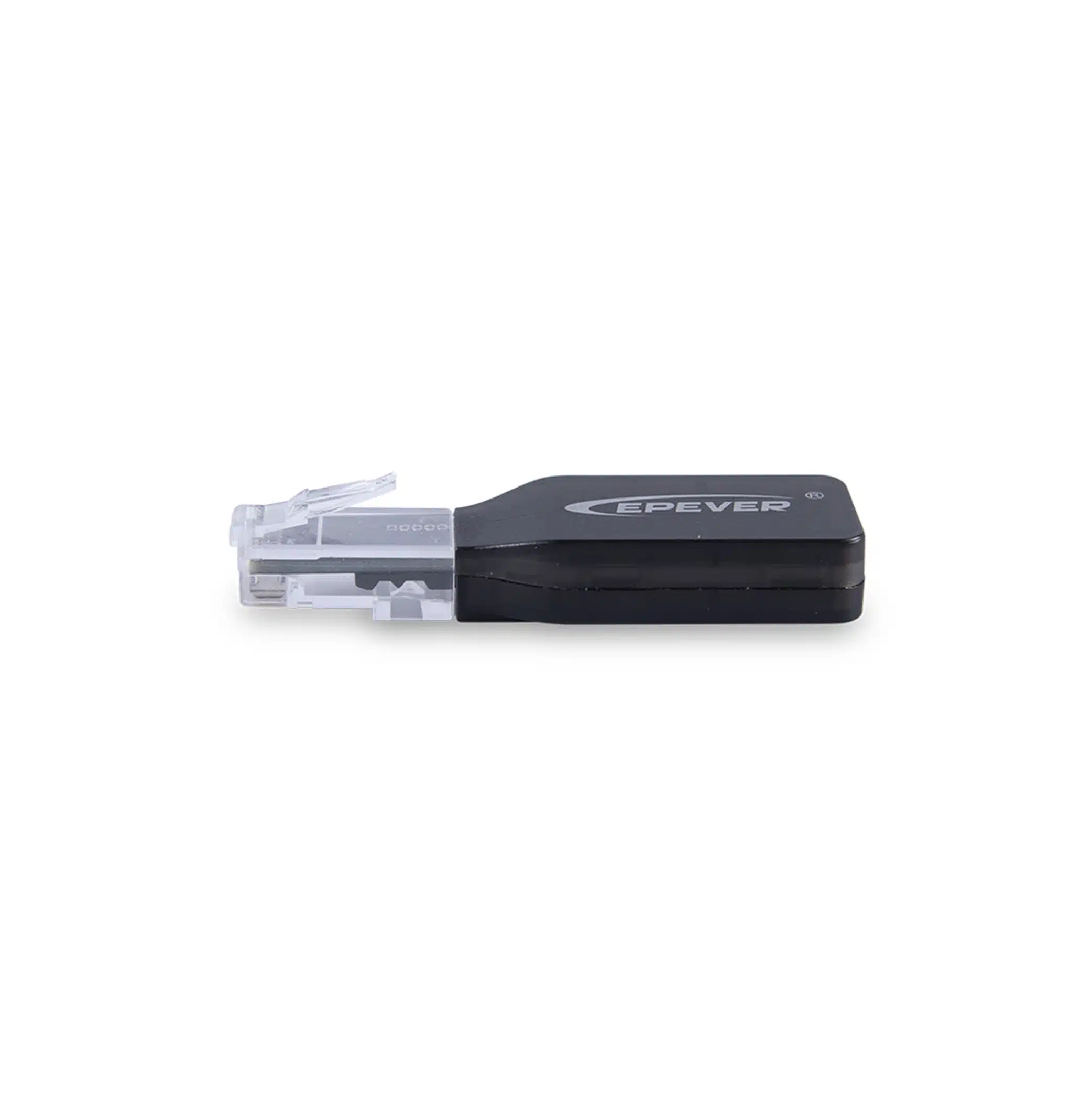

EPEVER BLE RJ45 D
Adopting the Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology, EPEVER BLE RJ45 D enables data collection, communication, and wireless monitoring of connected devices.
Adopting the Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology, EPEVER BLE RJ45 D enables data collection, communication, and wireless monitoring of connected devices.
| Parameter | EPEVER BLE RJ45 D |
| Working voltage | 5V± 0.5V (Powered by RJ45 port) |
| Power consumption | Average: 5V@10mA; Peak: 5V@60mA |
| Communication distance | ≤ 10m |
| Serial port baud rate | 115200bps |
| Communication method | RS485 to Bluetooth |
| Connection port | RJ45 |
| Bluetooth protocol | Bluetooth 5.0 |
| Dimension (L x W x H) | 63mm x 19mm x 13.8mm |
| Work temperature | -20℃~70℃ |
| Enclosure | IP30 |
| Net Weight | 8.0g |
EPEVER BLE RJ45 D-DATASHEET
EPEVER BLE RJ45 D-DATASHEET
EPEVER BLE RJ45 D- Manual
EPEVER BLE RJ45 D- Manual
Product Highlights
- Support communication via phone APP
- Support data encryption
- Use immediately after connecting; easy and convenient operation
- Feature fast communication and strong anti-interference ability
- Directly powered by the communication port
- Up to 10 meters of communication distance
