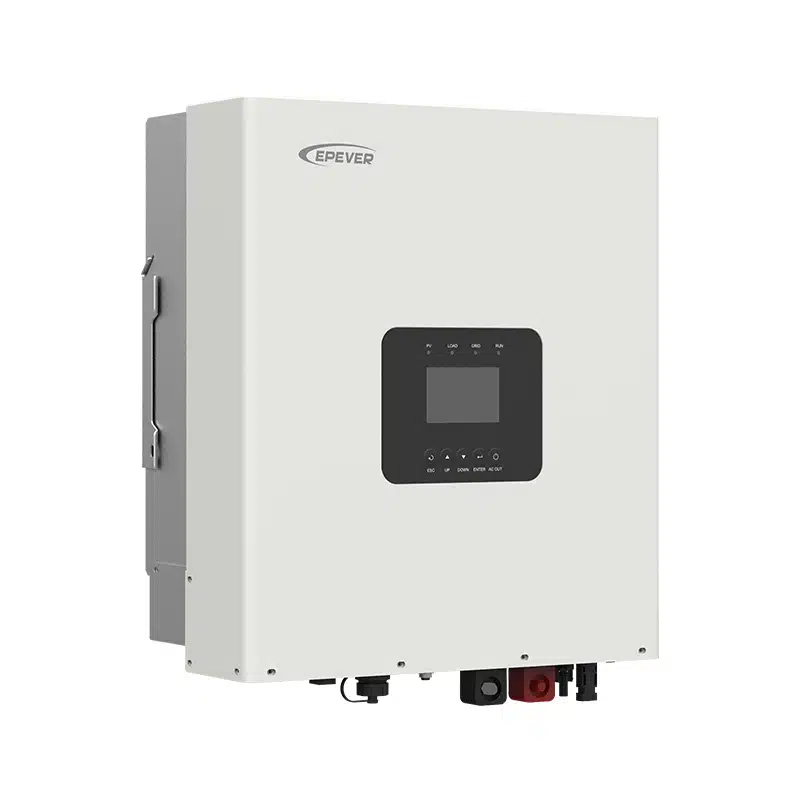

HP Series 30A (220/230VAC) 3500W/5500W Inverter/Charger
Introducing the HP Series 30A Inverter/Charger: A versatile solution for seamless integration of solar and grid power, offering reliability and efficiency for hybrid energy systems.
The HP Series 30A is an advanced hybrid inverter/charger engineered for diversified energy systems. It integrates practical parallel operation capabilities with unparalleled reliability and versatile charging modes. Equipped with an LCD display and Modbus communication protocol, it offers efficient energy management while maximizing solar energy utilization with optimized MPPT technology. The HP-AHP30A features an IP30 protection level, ensuring a premium, stable, and reliable electricity supply in indoor environments. With its noise level below 45dB, it provides a quiet operation ideal for settings where a low noise profile is essential. With these features, the HP-AHP30A is a reliable solution suitable for various environments and applications.
| Model | HP3522-AH1250P30A | HP3542-AH0650P30A | HP5542-AH1050P30A |
| Utility input | |||
| Utility Input Voltage | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | |
| Utility Input Frequency | 45Hz~65Hz | 45Hz~65Hz | |
| Maximum Utility Charging Current | 110A | 60A | 100A |
| Switch Response Time | Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms |
Switch Response Time – Inverter to Utility: 10ms Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms |
|
| Inverter output | |||
| Inverter Rated Power (@30℃) | 3500W | 3500W | 5500W |
| 3-second Transient Surge Output Power | 7000W | 7000W | 8500W |
| Inverter Output Voltage | 220/230VAC±3% | 220/230VAC±3% | |
| Inverter Frequency | 50/60Hz±0.2% | 50/60Hz±0.2% | |
| Output Voltage Waveform | Pure Sine Wave | Pure sine wave | |
| Load Power Factor | 0.2~1(VA ≤ Rated output power) | 0.2~1(VA ≤ Rated output power) | |
| THDu (Total Harmonic Voltage Distortion) | ≤3% (24V resistive load) | ≤3% (48V resistive load) | |
| Maximum Load Efficiency | 89% | 92% | 91% |
| Maximum Inverter Efficiency | 93% | 94% | 94% |
| Solar controller | |||
| PV Maximum Open-circuit Voltage | 500V (At minimum operating environment temperature) 440V (At 25℃) |
500V (At minimum operating environment temperature) 440V (At 25℃) |
|
| MPPT Voltage Range | 85~400V | 85~400V | |
| Number of MPPTs | 1 | 1 | 2 |
| PV Maximum Input Current | One way, 20A/way | One way, 20A/way | Two ways, 2x15A |
| PV Maximum Input Power | 4000W | 4000W | 2×3000W |
| PV Maximum Charging Current | 120A | 60A | 100A |
| MPPT Maximum efficiency | ≥99.0% | ≥99.5% | |
| Battery | |||
| Battery Rated Voltage | 24VDC | 48VDC | |
| Battery Work Voltage Range | 21.6VDC~32.0VDC | 43.2VDC~64VDC | |
| Battery Maximum Charging Current | 120A | 60A | 100A |
| Others | |||
| No-load Losses | <1.3A | <0.6A | <1.0 A |
| Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @24V input | Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input | ||
| Standby Current | <0.3A Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @24V input | <0.15A Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input | |
| Work Temperature Range | -20℃~+55℃ (When the environment temperature exceeds 35℃, the actual output power is reduced appropriately) | -20℃~+55℃ (When the environment temperature exceeds 35℃, the actual output power is reduced appropriately) |
|
| Storage Temperature Range | -25℃~+60℃ | -25℃~+60℃ | |
| Enclosure | IP30 | IP30 | |
| Relative Humidity | < 95% (N.C.) | < 95% (N.C.) | |
| Altitude | <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | |
| Mechanical parameters | |||
| Dimension (Length x Width x Height) | 541mm × 414mm × 228mm | 513mm × 414mm × 224mm | 541mm × 414mm × 228mm |
| Mounting Size (Length x Width) | 340mm x 130mm | 340mm x 130mm | 340mm x 130mm |
| Mounting Hole Size | Φ10mm | Φ10mm | Φ10mm |
| Net Weight | 23.2kg | 20.4kg | 24.4kg |
Manual
EPEVER-Manual-HP Series 30A
DataSheet
EPEVER-DataSheet-HP Series 30A
Product Highlights
Pure sine wave output
AC output supports parallel operation of multiple units (configurable for single-phase or three-phase), expandable up to 12 times the system capacity
Supports battery or non-battery mode
Equipped with BMS communication interface for safe charge and discharge control of lithium batteries
PFC technology provides power factor, reducing grid capacity consumption
Supports charging from various types of generators
Lithium battery self-activation
MPPT technology with a maximum tracking efficiency greater than 99.5%
Advanced MPPT technology, with Max. tracking efficiency higher than 99.5%
HP5542-AH1050P30A supports two PV inputs to improve PV utilization
RS485 communication interface, optional 4G, WIFI modules for remote monitoring
Features a historical data recording function with a storage capacity of 25,000 entries, configurable recording intervals from 1 to 3600 seconds
Comprehensive electronic protection functions to maximize system reliability
Noise reduction design with noise level below 45dB
-20℃~55℃ operating temperature range to meet more environmental requirements
