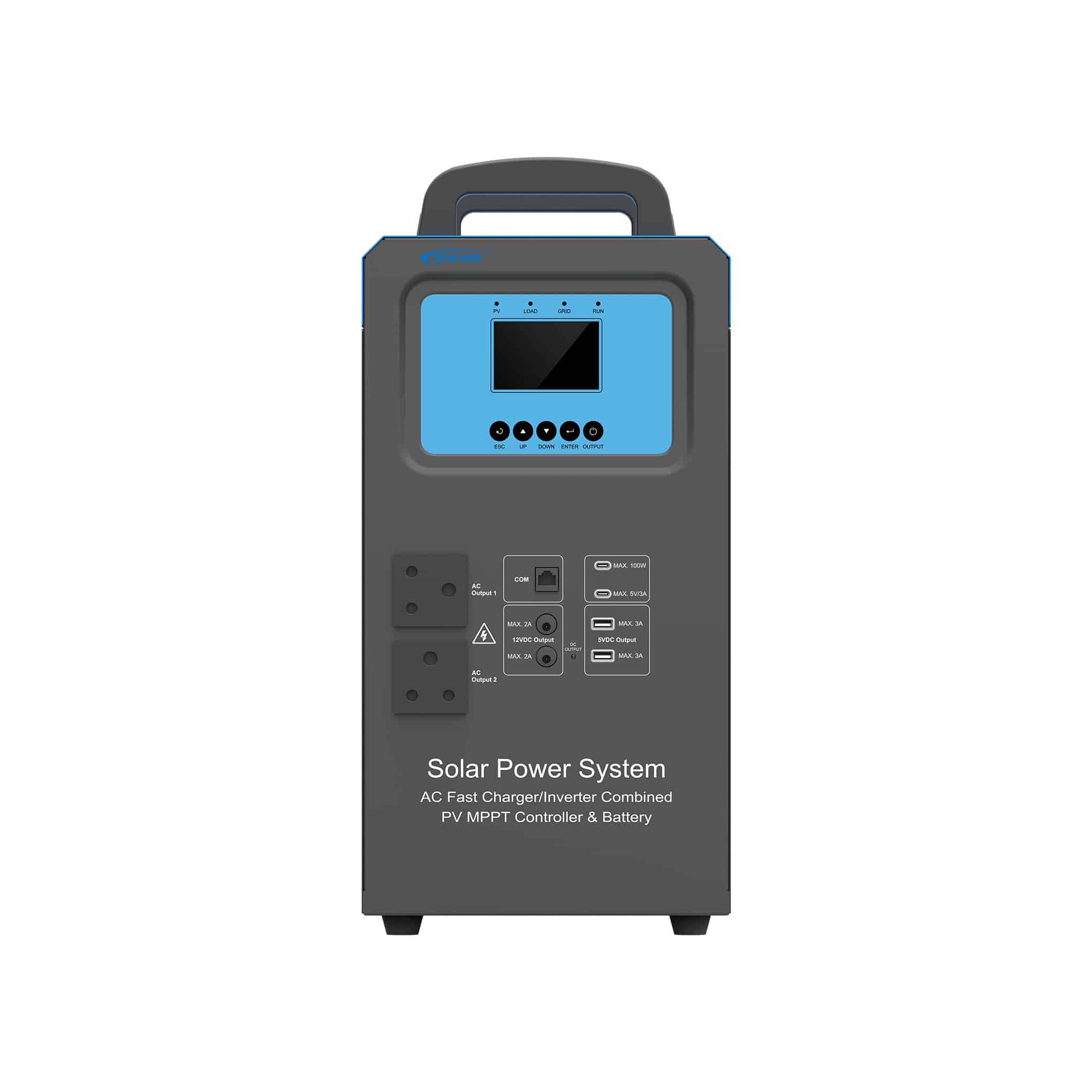

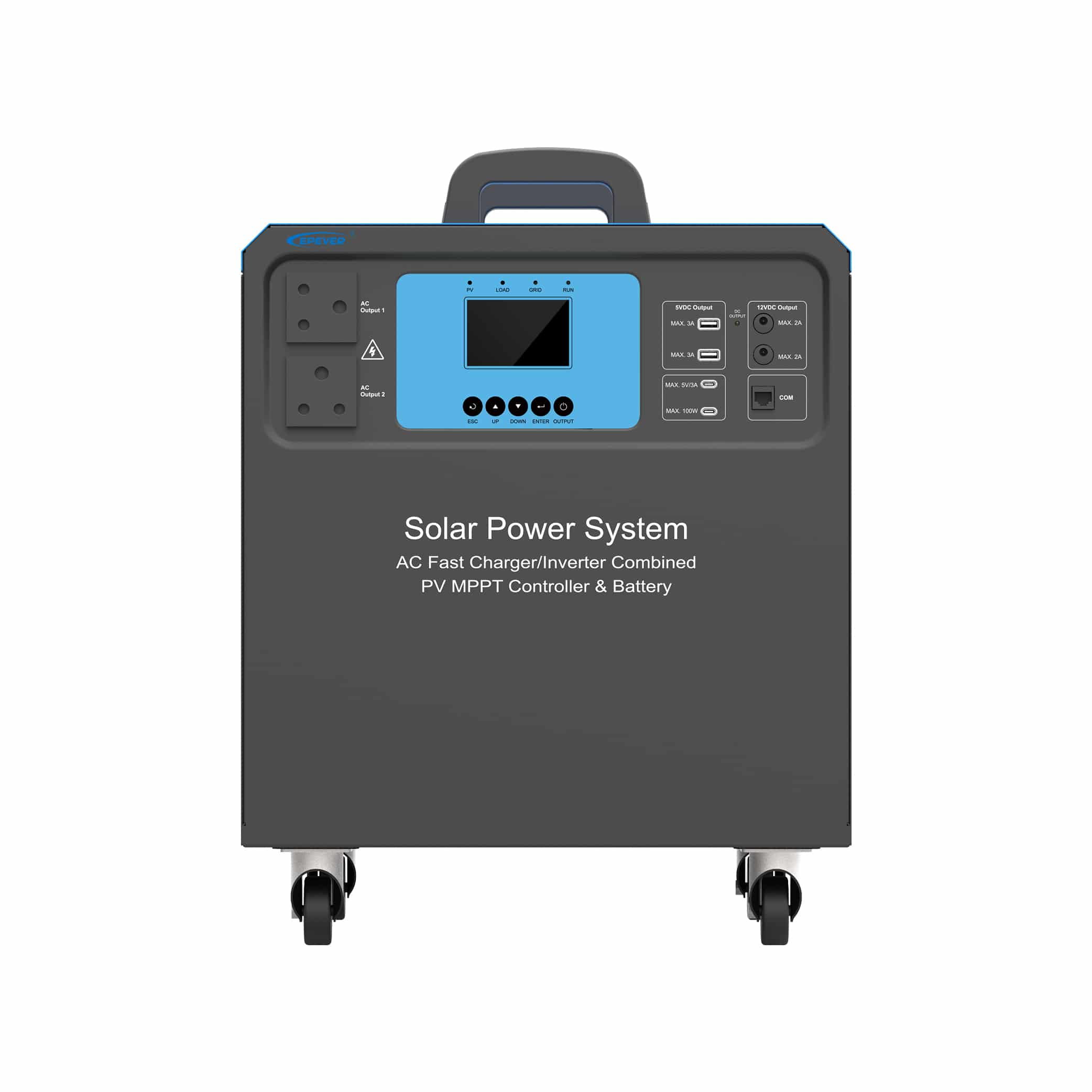

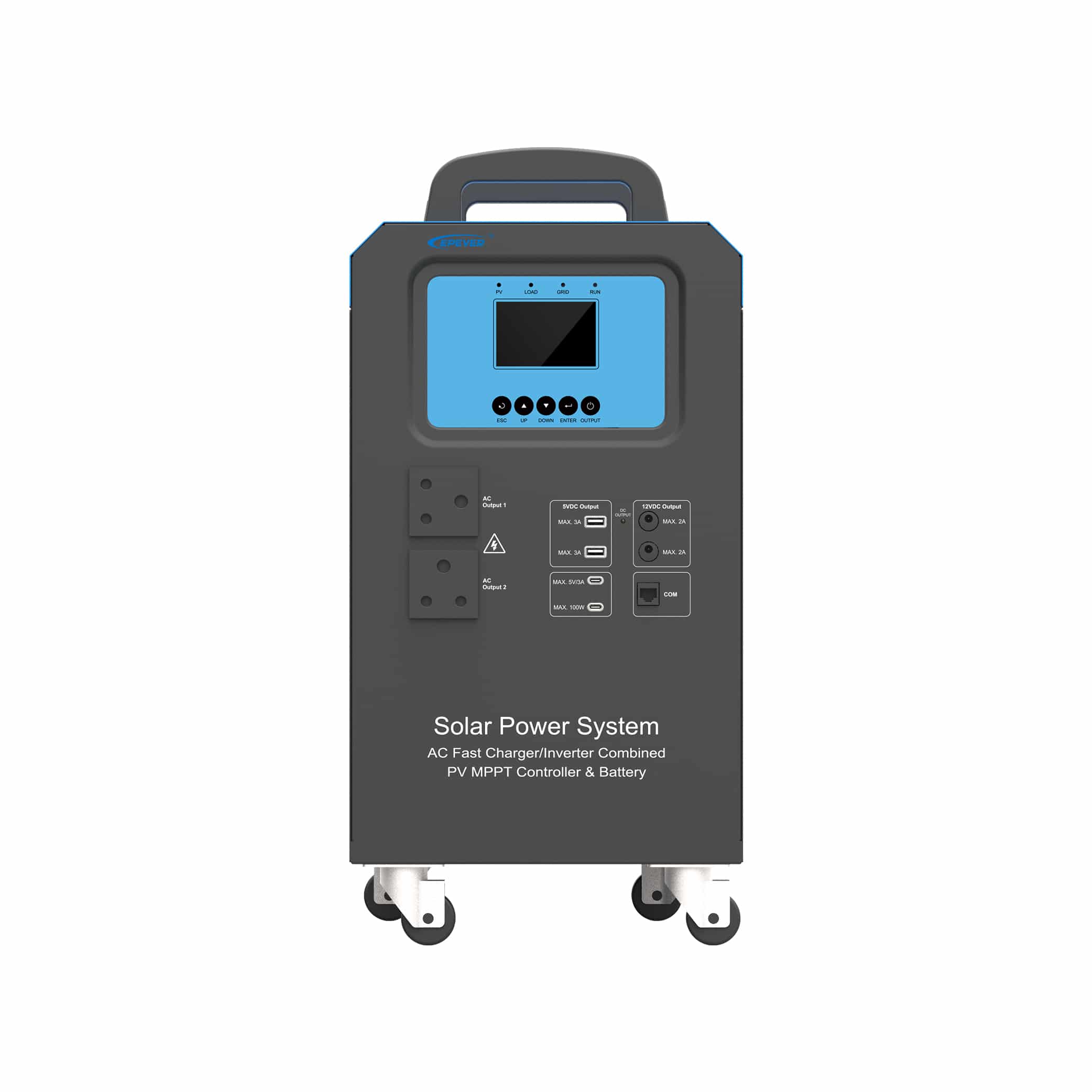

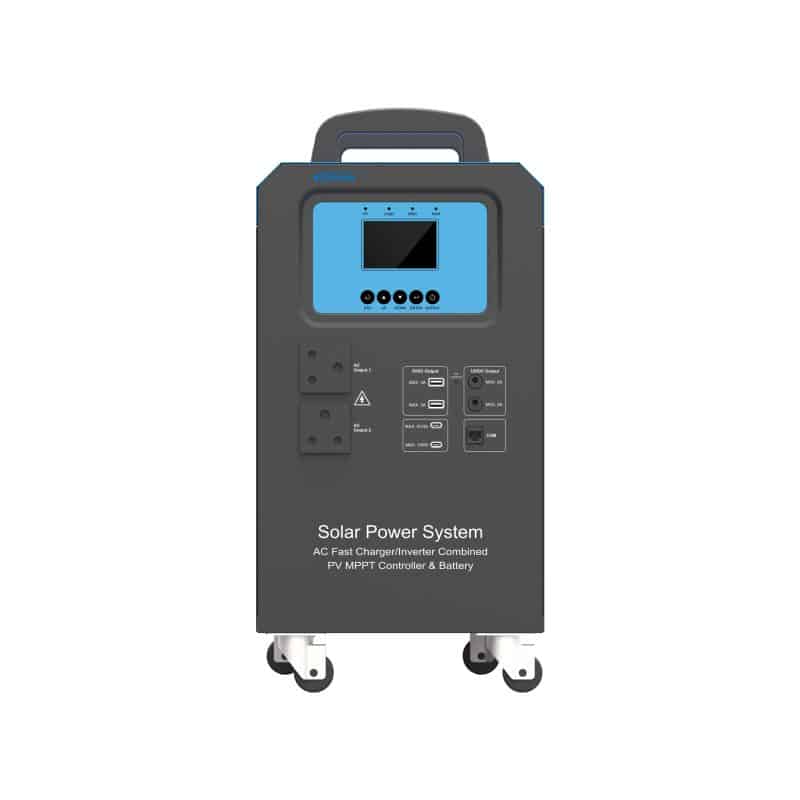

HPS-AL Series(1000~2500W) Solar Power System
Efficient household energy storage solution with solar and utility charging options, DC to AC inverter output, and advanced DSP chip for high response speed and reliable conversion.
The HPS-AL series is a household energy storage product, with a built-in battery. It supports solar and utility charging options, as well as a DC-to-AC inverter output. Advanced DSP chip with its control algorithm ensures high response speed, reliability, and conversion efficiency. The unique compartment design isolates the heat dissipation channels from the components, providing superior resistance to dust, moisture, and fog. Customers can achieve efficient energy utilization by flexibly using solar energy or utility power via customized settings. Most importantly, this product ensures a stable power supply and is widely used in low or no-power areas.
| Item | HPS1022-AL0210 | HPS1522-AL0210 | HPS2522-AL0315 | |
| Utility input | Rated Utility work voltage | 220VAC | ||
| Utility work voltage range | 176VAC~285VAC | |||
| Utility input frequency range | 45Hz-65Hz | |||
| Max. Utility work current (Charging + Bypass) |
2.2A for charging+4.5A for bypass@220VAC | 2.8A for charging+6.8A for bypass@220VAC | 3.5A for charging+11.4A for bypass@220VAC | |
| Utility transfer time | Utility bypass to Inverter output: <10ms; Inverter output to Utility bypass: 0ms | |||
| AC input overload relay | HAVE | |||
| Inverter output | Rated output power (@25℃) | 1000W | 1500W | 2500W |
| Surge output power (5s) | 1500W | 2000W | 4000W | |
| Rated output voltage | 220VAC±3% | |||
| Rated output frequency | 50Hz/60Hz±0.2% | |||
| Output wave | Pure sine wave | |||
| Output distortion THD | ≤3% (Resistive load) | |||
| Output soft start | HAVE | |||
| Solar controller | Max. PV input withstand voltage | 95V | 95V | 145V |
| Solar controller type | MPPT | |||
| MPPT efficiency | ＞99.5% | |||
| MPPT voltage range | 30V~80V | 30V~80V | 30V~120V | |
| MPPT ways | One way | |||
| Max. PV output charging current | 16.5A | 21A | 30A | |
| Battery | Battery type | GEL | ||
| Rated battery voltage | 24VDC | |||
| Battery work voltage range | 21VDC -30VDC | |||
| Battery work temperature range | Discharging Mode: -20℃ ~ 55℃; Charging Mode: 0℃ ~ 40℃ | |||
| Rated battery capacity | 55Ah*2 | 70Ah*2 | 120Ah*2 | |
| DC output | DC 12V port | 12V2A*2 | ||
| USB-A port | 5V3A*2 | |||
| TYPE C (USB-C) port | TYPE C-100W * 1pcs (support PD3.0 and multiple protocols) TYPE C-5V/3A * 1pcs |
|||
| DC output switch | HAVE | |||
| Others | Work temperature range | -20℃~55℃ (when environment temperature exceeds 25℃, the charging power and load power will be reduced appropriately; working of full load is not supported.) | ||
| Enclosure | IP20 | |||
| Communication method | RS485, BlueTooth (GRPS/WiFi optional) | |||
| LCD | Monochrome LCD, English interface | |||
| Warranty | Two years | |||
| Dimension (Length x Width x Height) | 255x406x541mm (with floor mats and handles) |
288x449x586mm (with floor mats and handles) |
435x504x574.5mm (with wheels and handles) |
|
| Net weight | 55kg | 65kg | 107kg | |
Datasheet
EPEVER-Datasheet-HPS-AL-Series
Manual
EPEVER-Manual-HPS-AL-Series
Product Highlights
Built-in GEL battery.
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%.
PFC technology reduces the demand on the power grid capacity.
Pure sine wave output.
Strong anti-impact performance to apply to various types of load.
Support multiple types of generators.
Fast transfer between inverter and utility output less than 20ms.
Multiple DC output ports.
Built-in Bluetooth to adjust settings through EPEVER APP.
4.5-inch LCD display for better status monitoring.
Comprehensive electronic protections
All-in-one, easy connection, easy use.
Unique compartment design provides outstanding protective performance.
RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring.
- Offers efficient backup for both DC and AC loads.
- Significantly reduces electricity bills through solar energy utilization.
- Versatile energy source, supporting solar, utility power, and generator input.
- Incorporates advanced Maximum Power Point Tracking (MPPT) technology, ensuring over 99.5% tracking efficiency.
- Allows users to choose between solar and utility power based on availability and preference.
- Optimizes energy consumption with smart energy management features.
The HPS-AL Series is capable of storing energy in its built-in Gel batteries, providing a reserve of power for use when solar irradiance is insufficient or during non-sunny days. The battery can also be charged by an alternate power source (utility/Generator).
2.5KW, 1.5KW and 1KW models support 850W, 600W and 500W solar input power respectively.
During grid outages, the HPS-AL series seamlessly (Switch Response Time – Utility to Inverter: <15ms, Inverter to Utility: 0ms) switches to battery power, using its built-in Gel battery for backup. It supports solar charging, ensuring uninterrupted power supply even without utility power.
- HPS AL Series does not need to be fixed(placed on the ground directly). And the placed location is required to be no water, flat, strong, and clean.
- Connect the energy storage system in the order of “❶grounding >❷l load >❸ PV array > ❹Utility or generator > ❺optional accessories
Yes it can be monitored and controlled by Solar Guardian APP and PC interface.
By supporting solar charging, the HPS-AL series allows batteries to be charged during the day using solar energy. This energy can then be used to power loads during peak hours, reducing reliance on and costs from the grid.
Advanced MPPT technology, with maximum tracking efficiency higher than 99.5%.
It is suitable for household appliances, power tools, industrial equipment, audio systems, and other electronics.
With the built in Gel battery HPS AL series run the load and it supports utility charging, oil generator charging options to perform during low light conditions.
The system can be remotely monitored using the Solar Guardian mobile app. This app allows users to keep track of system performance, monitor energy usage, and adjust settings, offering a convenient and user-friendly way to manage the solar power system.
When there is excess solar energy, the HPS-AL Series prioritizes it for charging the built-in Gel batteries and powering connected loads. This approach maximizes the use of solar power, reducing dependence on external power sources and optimizing energy efficiency.
