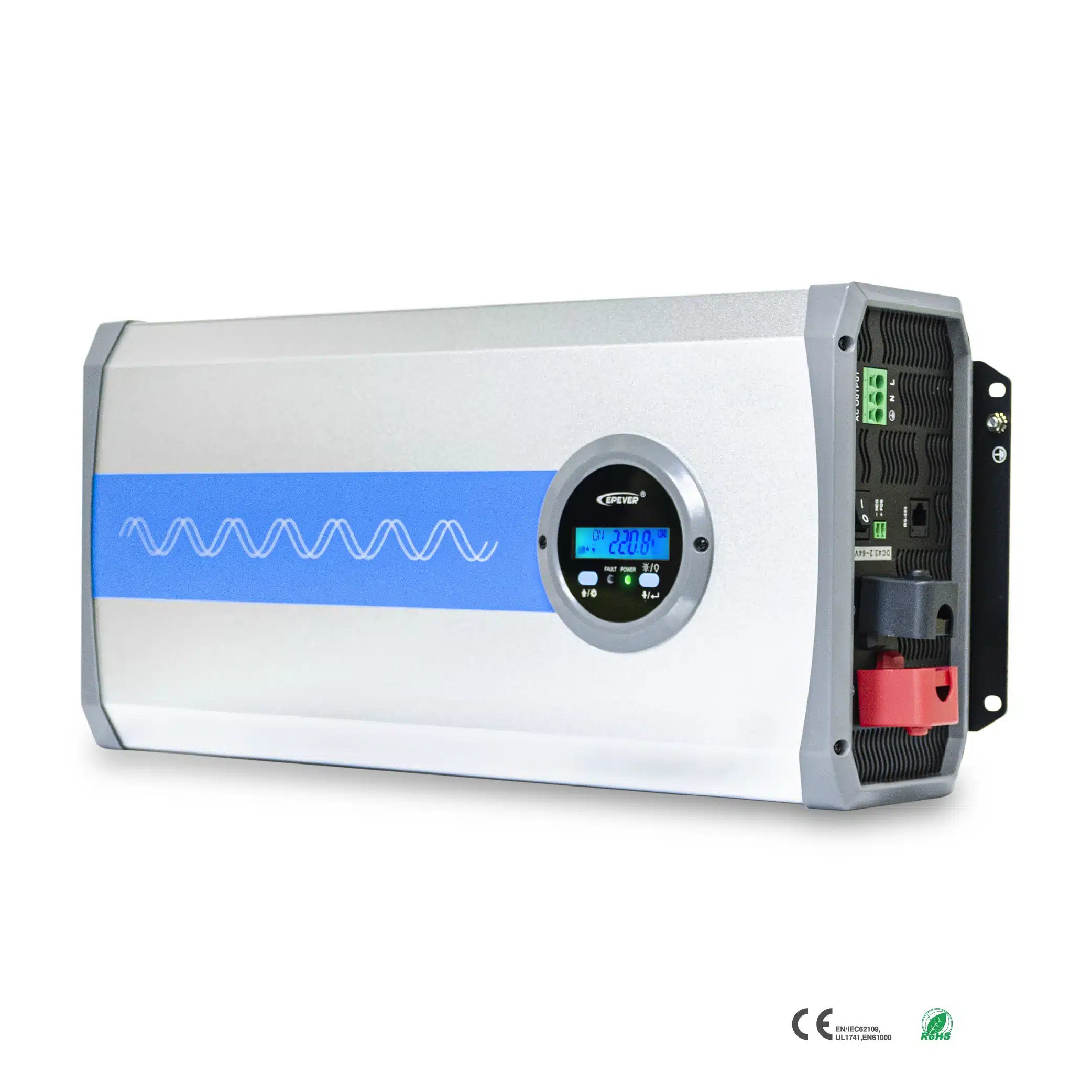

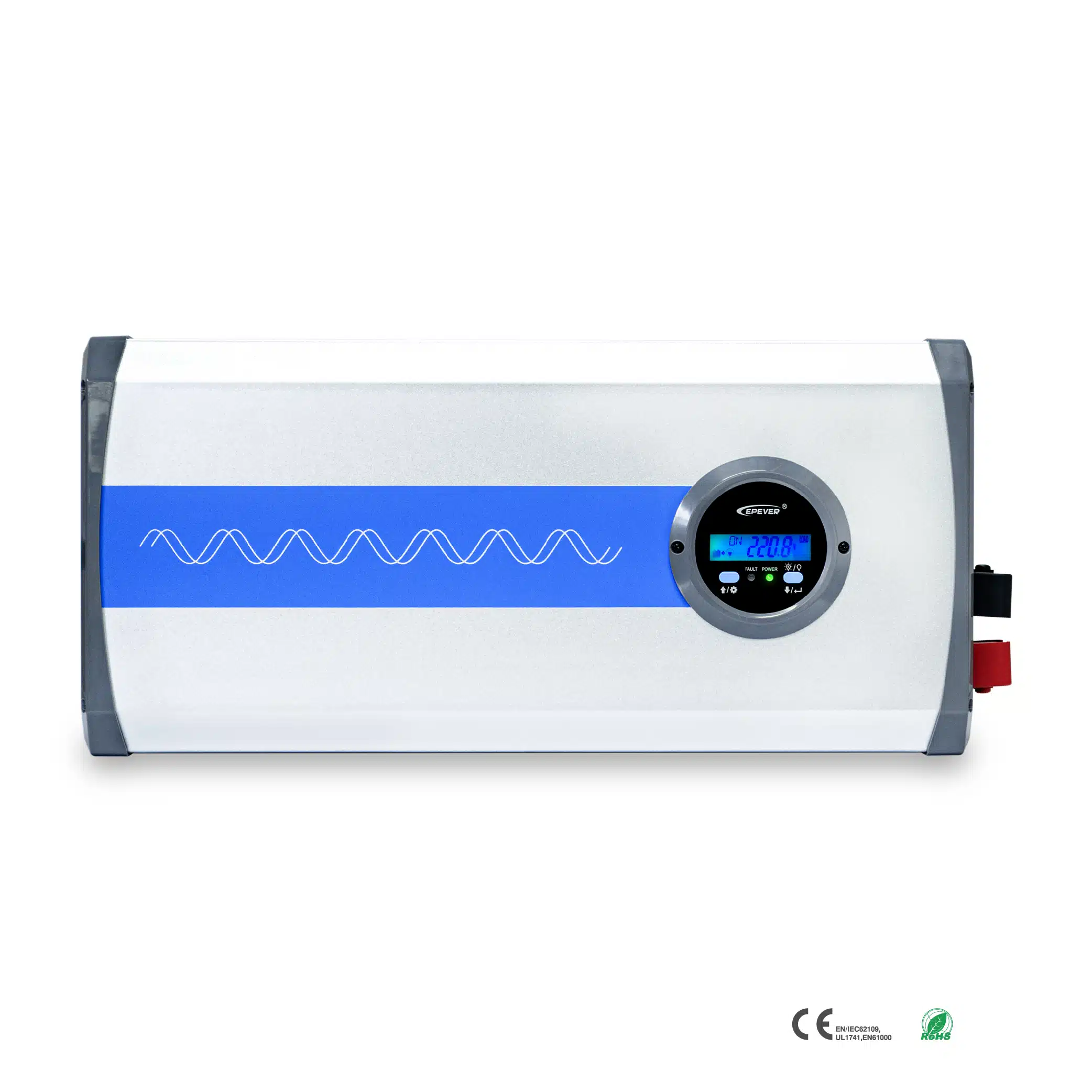

IPower-Plus Series(220/230VAC) 350~5000W Pure Sine Wave Inverter
Compatible with a lithium-ion battery
- Description
- Additional Information
- Additional Information 2
- Download
- Highlights
- FAQ
- Online Submit
- Reviews 2
IPower-Plus is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 220/230V AC and power the AC loads. It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 5000W, Ipower-Plus is compatible with lithium-ion batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places where require high-quality electrical power.
| Parameters | IP2000-12-Plus | IP2000-22-Plus | IP2000-42-Plus | IP3000-12-Plus | IP3000-22-Plus | IP3000-42-Plus | IP4000-42-Plus | IP5000-42-Plus |
| Continuous output power | 2000W | 2000W | 2000W | 3000W | 3000W | 3000W | 4000W | 5000W |
| Surge power | 4000W@5S | 4000W@5S | 4000W@5S | 6000W@5S | 6000W@5S | 6000W@5S | 8000W@5S | 8000W@5S |
| Surge current when power on | ๏ผ100A | ๏ผ100A | ๏ผ50A | ๏ผ100A | ๏ผ100A | ๏ผ65A | ๏ผ65A | ๏ผ65A |
| Output voltage | 220VAC(ยฑ3%); 230VAC(-7%~+3%) | |||||||
| Output frequency | 50/60Hzยฑ0.2% | |||||||
| Output wave | Pure sine wave | |||||||
| Output distortion THD | THDโค3%(Resistive load) | |||||||
| Load power factor | 0.2-1(Load VA โค Continuous output power) | |||||||
| Rated input voltage | 12VDC | 24VDC | 48VDC | 12VDC | 24VDC | 48VDC | 48VDC | 48VDC |
| Input voltage range | 10.8~16.0VDC | 21.6~32.0VDC | 43.2~64.0VDC | 10.8~16.0VDC | 21.6๏ฝ32.0VDC | 43.2~64.0VDC | 43.2~64VDC | 43.2~64.0VDC |
| Rated output efficiency | ๏ผ88% | ๏ผ91% | ๏ผ92.5% | ๏ผ87% | ๏ผ90% | ๏ผ92.5% | ๏ผ91% | ๏ผ91% |
| Max. output efficiency | ๏ผ94%(30% loads) | ๏ผ93%(30% loads) | ๏ผ94.5% (30% loads) | ๏ผ94% (30% loads) | ๏ผ94% (30% loads) | ๏ผ94.5% (30% loads) | ๏ผ94%(30% loads) | ๏ผ94%(30% loads) |
| No-load current | ๏ผ1.2A | ๏ผ1.0A | ๏ผ0.5A | ๏ผ1.6A | ๏ผ1A | ๏ผ0.5A | ๏ผ0.6A | ๏ผ0.8A |
| USB output | 5VDC/Max.1A | 5VDC/ Max.1A | / | 5VDC/Max.1A | 5VDC/Max.1A | / | / | / |
| RS485 com. port | 5VDC/ 200mA | 5VDC/ 200mA | 5VDC/ 200mA | 5VDC/ 200mA | 5VDC/ 200mA | 5VDC/ 200mA | 5VDC/ 200mA | 5VDC/ 200mA |
| Dimension(LxWxH) | 420ร231.5ร123mm | 421ร231.5ร123mm | 421ร231.5ร123mm | 557ร231.5ร123mm | 521ร274ร148mm | 491ร231.5ร123mm | 516ร231.5ร123mm | 531ร231.5ร123mm |
| Mounting dimension | 395ร145mm | 395ร145mm | 395ร145mm | 532ร145mm | 495ร145mm | 465ร145mm | 490ร145mm | 505ร145mm |
| Net Weight | 8kg | 6.5kg | 6.5kg | 10.5kg | 8kg | 7kg | 8kg | 9kg |
| Operating temperature range | -20โ~+60โ(Refer to the derating curve) | |||||||
| Relative humidity | < 95%(N.C.) | |||||||
| Enclosure | IP20 | |||||||
| Parameters | IP500-12-Plus | IP500-22-Plus | IP1000-12-Plus | IP1000-22-Plus | IP1500-12-Plus | IP1500-22-Plus | IP1500-42-Plus |
| Continuous output power | 500W | 500W | 1000W | 1000W | 1500W | 1500W | 1500W |
| Surge power | 1000W@5S | 1000W@5S | 2000W@5S | 2000W@5S | 3000W@5S | 3000W@5S | 3000W@5S |
| Surge current when power on | ๏ผ50A | ๏ผ50A | ๏ผ100A | ๏ผ100A | ๏ผ100A | ๏ผ100A | ๏ผ50A |
| Output voltage | 220VAC(ยฑ3%); 230VAC(-7%~+3%) | ||||||
| Output frequency | 50/60Hzยฑ0.2% | ||||||
| Output wave | Pure sine wave | ||||||
| Output distortion THD | THDโค3%(Resistive load) | ||||||
| Load power factor | 0.2-1(Load VAย โคย Continuous output power) | ||||||
| Rated input voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 48VDC |
| Input voltage range | 10.8~16.0VDC | 21.6~32VDC | 10.8~16.0VDC | 21.6~32.0VDC | 10.8~16.0VDC | 21.6~32.0VDC | 43.2~64.0VDC |
| Rated output efficiency | ๏ผ89.5% | ๏ผ91.5% | ๏ผ89% | ๏ผ90% | ๏ผ89% | ๏ผ90% | ๏ผ92.5% |
| Max. output efficiency | ๏ผ90% (40% loads) | ๏ผ92% (40% loads) | ๏ผ93% (40% loads) | ๏ผ93% (30% loads) | ๏ผ93%(30% loads) | ๏ผ93.5%(30% loads) | ๏ผ94%(30% loads) |
| No-load current | ๏ผ0.9A | ๏ผ0.6A | ๏ผ1.1A | ๏ผ0.9A | ๏ผ1.2A | ๏ผ0.9A | ๏ผ0.5A |
| USB output | 5VDC/Max.1A | 5VDC/Max.1A | 5VDC/Max.1A | 5VDC/Max.1A | 5VDC/Max.1A | 5VDC/Max.1A | / |
| RS485 com. port | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA |
| Dimension(LxWxH) | 286ร163.5ร78mm | 286ร163.5ร78mm | 371ร231.5ร123mm | 371ร231.5ร123mm | 387ร231.5ร123mm | 387ร231.5ร123mm | 387ร231.5ร123mm |
| Mounting dimension | ฮฆ5mm | ฮฆ5mm | ฮฆ6mm | ฮฆ6mm | ฮฆ6mm | ฮฆ6mm | ฮฆ6mm |
| Net Weight | 2.2kg | 2.2kg | 5.8kg | 5kg | 6kg | 6kg | 6kg |
| Operating temperature range | `-20โ~+60โ(Refer to the derating curve) | ||||||
| Relative humidity | < 95%(N.C.) | ||||||
| Enclosure | IP20 | ||||||
Datasheet
EPEVER-DataSheet-IP-Plus-220-230-240VAC
Manual
IPower-Plus-Manual-EN-V3.3
Certificate
Certificate-Rohs-IPower-Plus
Remote Switch Cable Wiring
IPower-Plus Remote Switch Cable Wiring
Product Highlights
Pure sine wave output
Input to output electrical isolation
Digital dual closed-loop control of voltage and current
Input surge current suppression for lithium battery systems
Output power factor up to 1

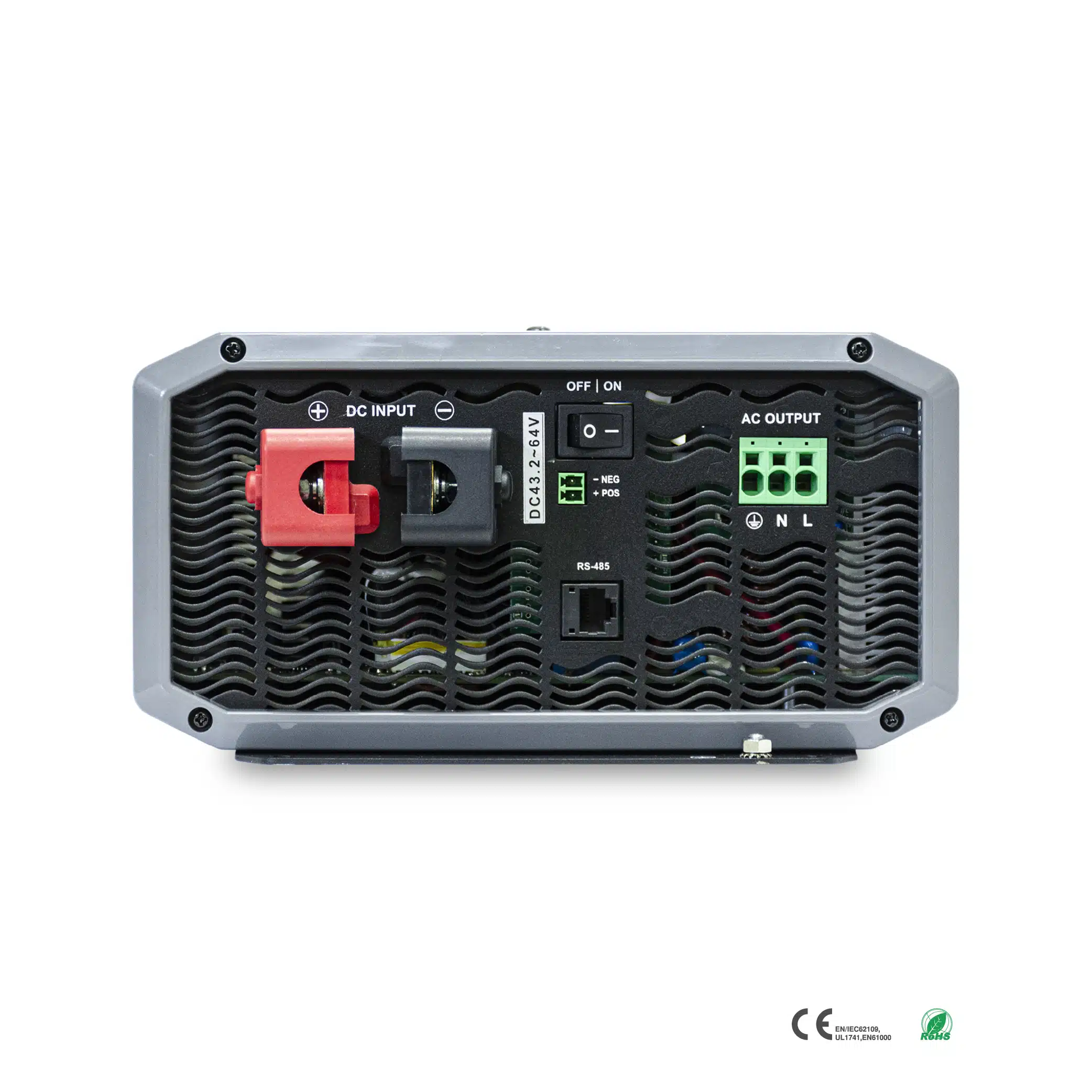

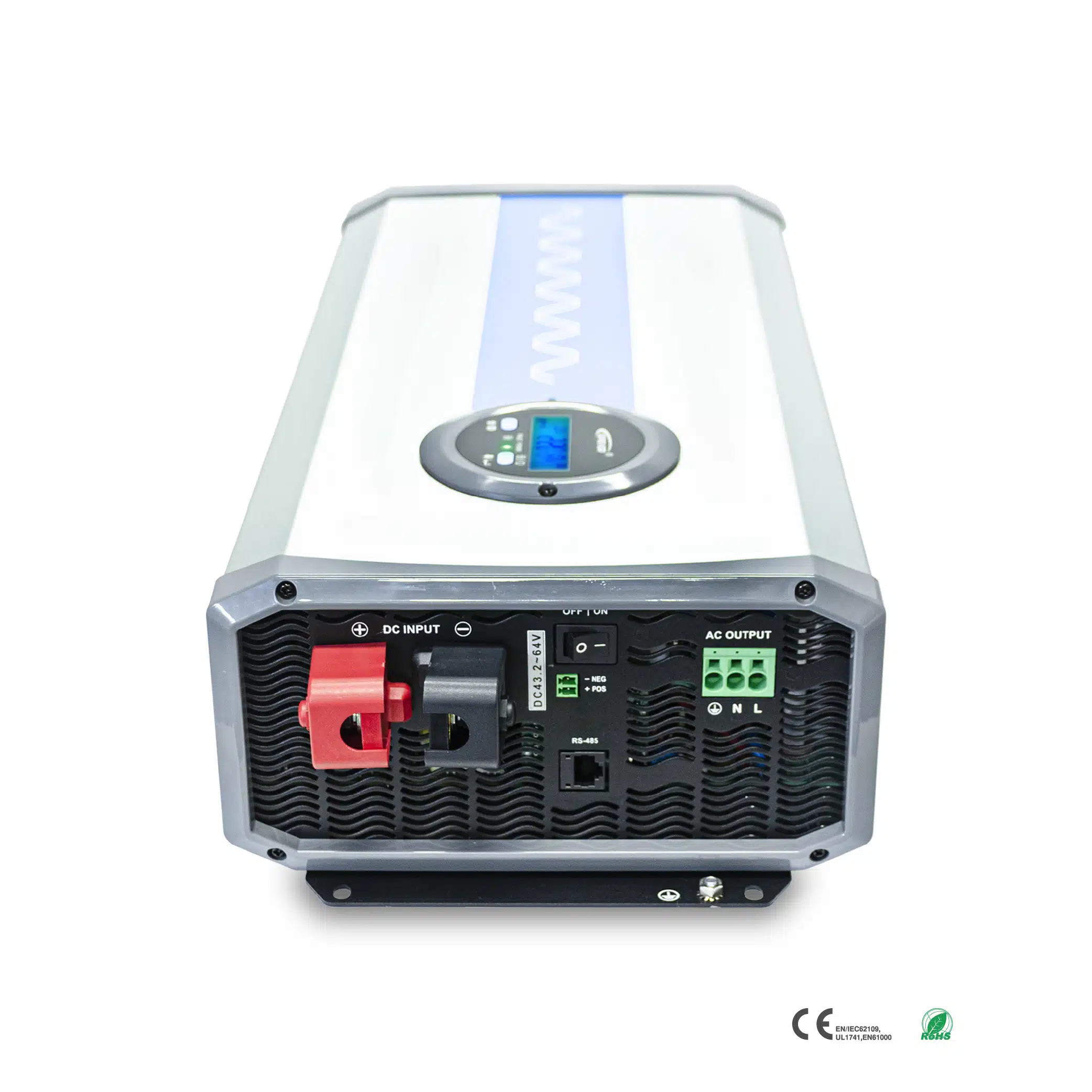

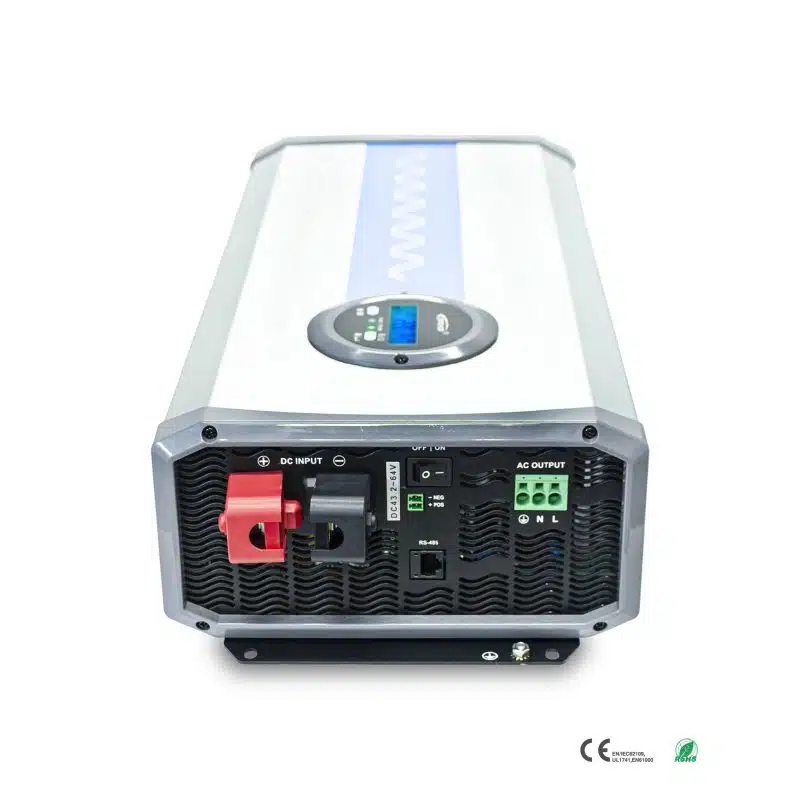

Simple system wiring & 180 degrees rotating LCD
Input Protection: Reverse polarity, Low-voltage, Over-voltage
Output Protection: Overload, Short circuit, Overheating
Phone and PC remote control through RS485 port
Extra external switch port
Safety (EN/IEC62109) & EMC approved by international standards
No. The Ipower-plus supports a LiFePO4 lithium battery. It is not compatible with Li(NiCoMn)O2. Because the battery voltage range is too low to work with the inverter.
Yes, all parameters can be set via the LCD and buttons on the inverter.
It is used to turn on/off the inverter remotely,e.g., a wall switch. It is paralleled with the ON/OFF switch on the inverter. So the local ON/OFF switch should be off when an External Switch is used.
AgoMago –
Extremely powerful and very stable. Monitoring via computer software or remotely, also lot of parametrs can be set via software or from display panel. Using it to feed my whole house with no problems. It can be directly conected to dry contact in Epever Tracer AN series charge controllers to switch inverter off at preset voltage to limit batteries discharge. What i dont like much is the output wiring system that has no screws but a cheap pressure spring.
mason@epever.com –
Hi Sir, thanks for reaching us. The pressure spring is a VDE and UL certified product, If you don’t like this type of terminal, our products also have other socket types of output options.
ะะพะปั –
ะะพะฑัะธะน ะฒะตััั ัะธ ะทะฐััะดะถะฐััััั ะฒัะด ัะฝะฒะตััะพัะฐ ะฐะบัะผัะปััะพั ะฒัะด ะผะตัะตะถั,ัะธ ะฟะพัััะฑะฝะพ ะบัะฟะปััะธ ะทะฐััะดะฝั ััะฐะฝััั?
mason@epever.com –
Hi Sir, thanks for reaching us. The IPower-Plus series can’t charge the battery by the main. EPEVER inverter/charger can using the electricity from the utility.
