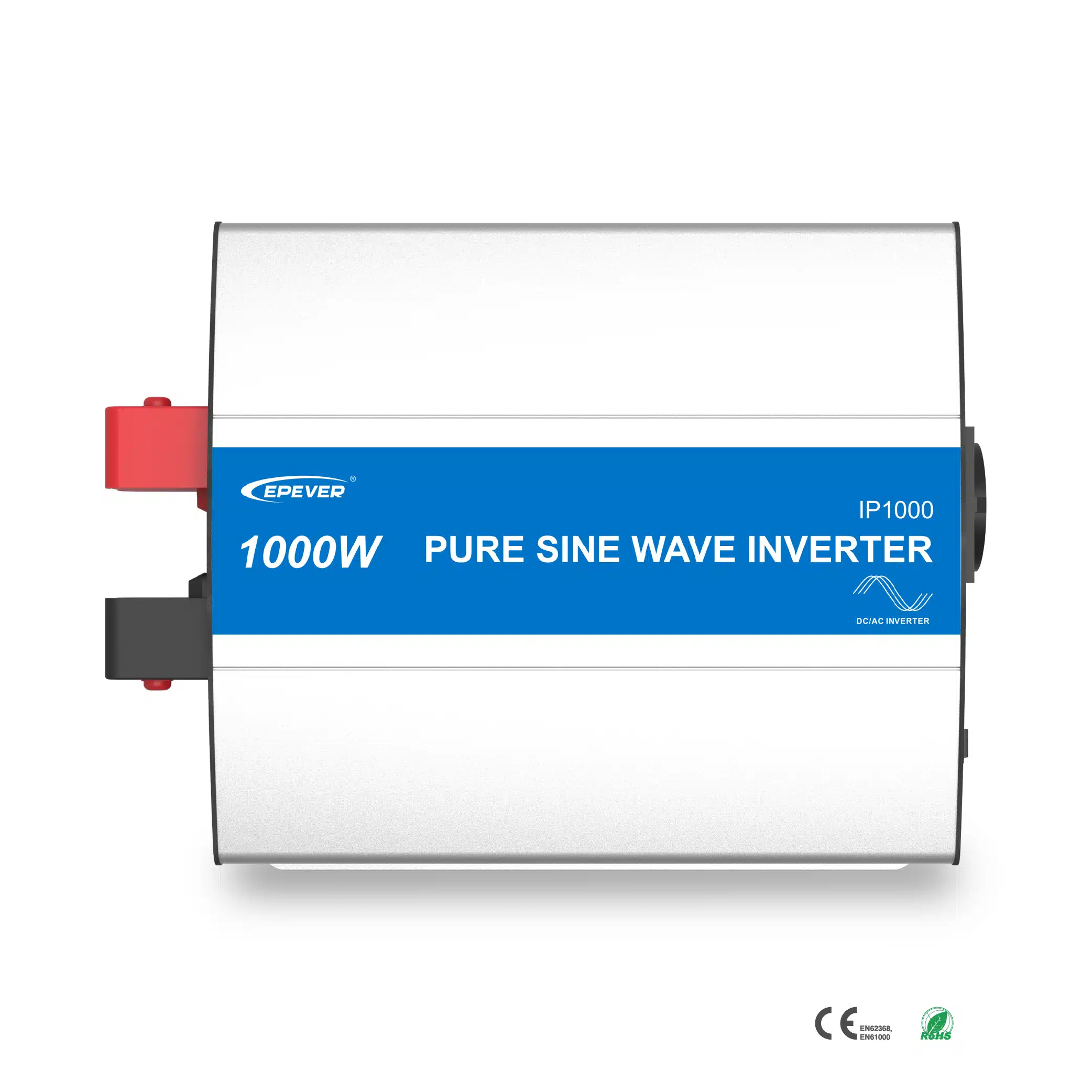

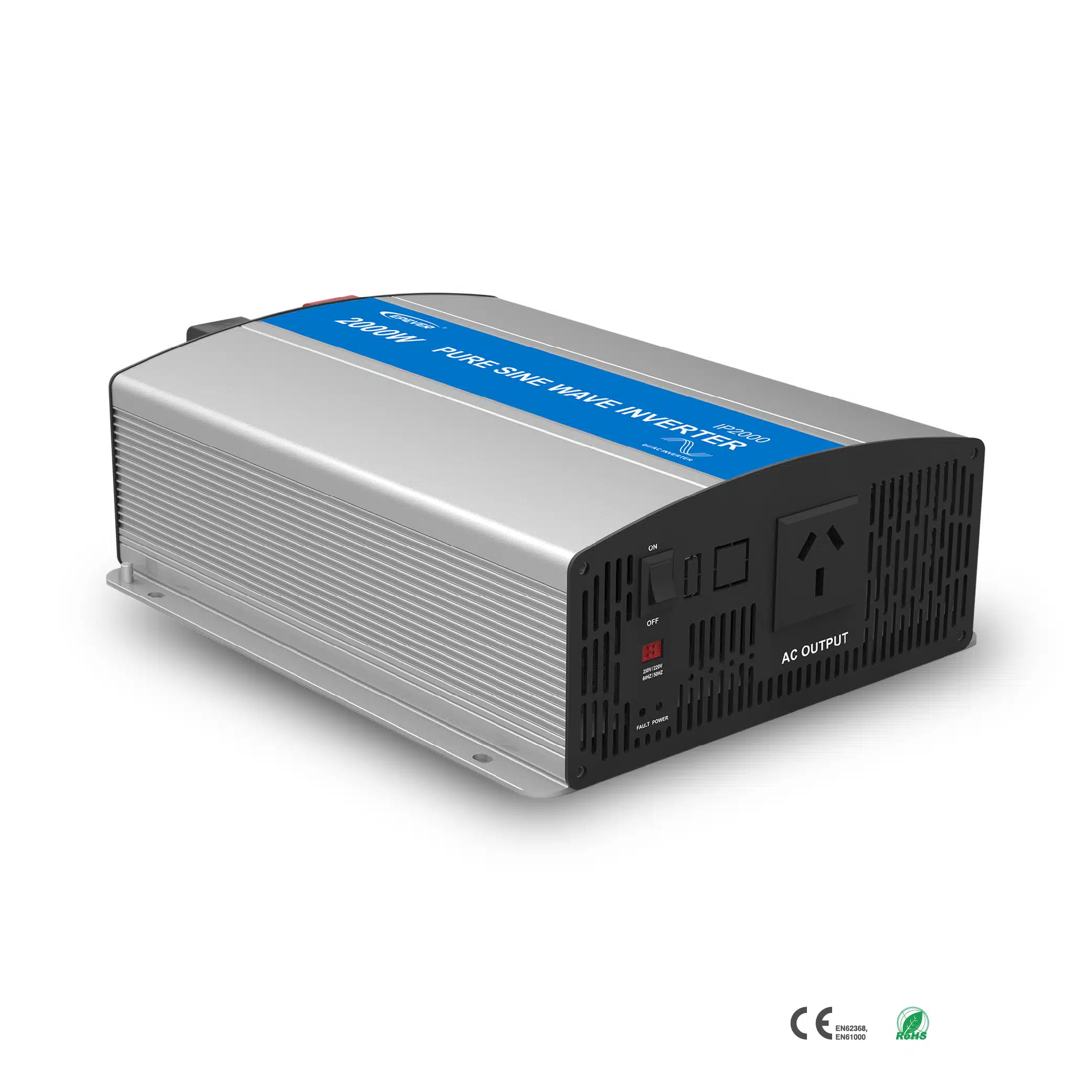

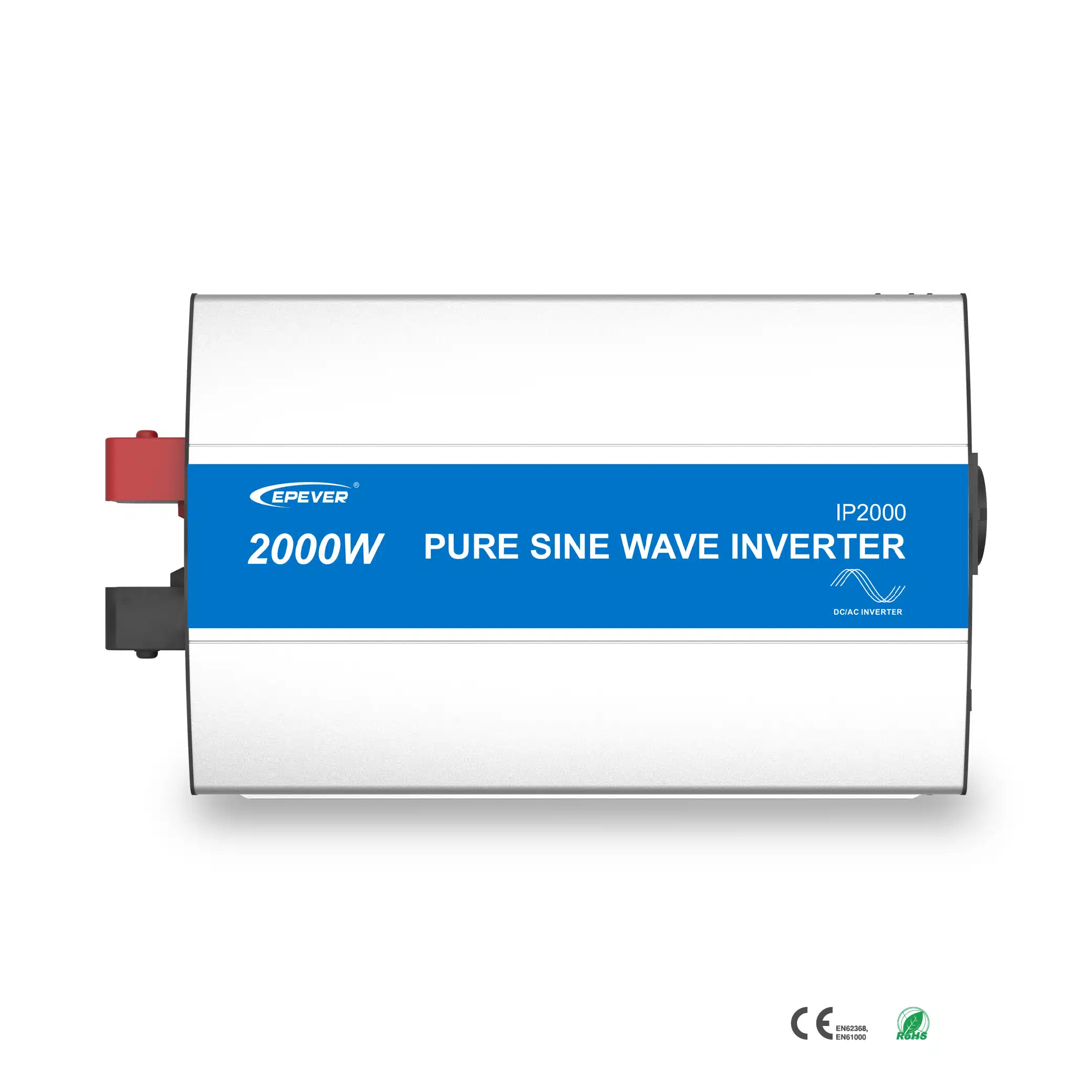

IPower Series(110/120VAC) 350~2000W Pure Sine Wave Inverter
Ipower pure sine wave inverter converts 12/24/48VDC to 110/120VAC to power the AC appliance.
IPower series is a pure sine wave inverter that can convert 12/24/48VDC to 110/120VAC. The power is from 350VA to 2000VA. The inverter can be applied in many fields. Its wide input voltage range is ideal for solar system applications.
| Item | IP350-11 | IP350-21 | IP500-11 | IP500-21 | IP1000-11 | IP1000-21 | IP1500-11 | IP1500-21 | IP2000-21 | IP2000-41 |
| Continuous output power | 280W | 280W | 400W | 400W | 800W | 800W | 1200W | 1200W | 1600W | 1600W |
| Output power 15 min. | 350W | 350W | 500W | 500W | 1000W | 1000W | 1500W | 1500W | 2000W | 2000W |
| Surge power | 750W | 750W | 1000W | 1000W | 1600W | 1600W | 2400W | 2400W | 3200W | 3200W |
| Output voltage | 110VAC(±5%) 120VAC(-10%～+5%) |
110VAC(±5%) 120VAC(-10%～+5%) |
110VAC(±5%) 120VAC(-10%～+5%) |
110VAC(±5%) 120VAC(-10%～+5%) |
110VAC 120VAC(±3%) |
110VAC 120VAC(±3%) |
110VAC(±3%) 120VAC(-7%～+3%) |
110VAC(±3%) 120VAC(-7%～+3%) |
110VAC(±5%) 120VAC(-10%～+5%) |
110VAC(±5%) 120VAC(-10%～+5%) |
| Output frequency | 50/60±0.1Hz | |||||||||
| Output wave | Pure sine wave | |||||||||
| Output distortion THD | THD≤5% | |||||||||
| Load power factor | 0.2-1(Load VA ≤ Continuous output power) | |||||||||
| Rated input voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 24VDC | 48VDC |
| Input voltage range | 10.8～16VDC | 21.6～32VDC | 10.8～16VDC | 21.6～32VDC | 10.8～16VDC | 21.6～32VDC | 10.8～16VDC | 21.6～32VDC | 21.6～32VDC | 43.2～60VDC |
| Input surge voltage | ＜32VDC | ＜44VDC | ＜32VDC | ＜44VDC | ＜20VDC | ＜44VDC | ＜20VDC | ＜40VDC | ＜40VDC | ＜80VDC |
| Max. output efficiency | 90% | 91% | 91% | 91% | 92.50% | 92.50% | 93% | 94% | 94% | 94% |
| No-load current | ＜0.7A | ＜0.5A | ＜0.9A | ＜0.5A | ＜0.8A | ＜0.5A | ＜1.0A | ＜0.6A | ＜0.6A | ＜0.4A |
| USB output | 5VDC/Max.1A | |||||||||
| RS485 com. port | / | / | / | / | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA | 5VDC/200mA |
| Dimension(LxWxH) | 214×105.5×57.7mm | 214×105.5×57.7mm | 232.2×132×74.5mm | 232.2×132×74.5mm | 298.3×231.5×98.5mm | 284.7×231.5×98.5mm | 326.1×231.5×98.5mm | 284.7×231.5×98.5mm | 326.1×231.5×98.5mm | 326.1×231.5×98.5mm |
| Mounting dimension | 185.5×76.7mm | 185.5×76.7mm | 205×102mm | 205×102mm | 183×220mm | 163×219.5mm | 208×220mm | 163×219.5mm | 208×219.5mm | 208×219.5mm |
| Net weight | 1.0kg | 1.0kg | 1.7kg | 1.7kg | 3.9kg | 3.6kg | 4.6kg | 3.9kg | 4.6kg | 4.6kg |
| Operating temperature range | -20℃~ +45℃ | |||||||||
| Relative humidity | < 95%(N.C.) | |||||||||
| Enclosure | IP20 | |||||||||
Datasheet
EPEVER-Datasheet-IPower-110V
Datasheet
EPEVER-Datasheet-IPower-220V
Manual
IPower-Manual-EN-V2.3
Certificates
Certificate LVD60950 IPower
Product Highlights
Safe design with input and output electrical isolation
Adoption of advanced SPWM technology, pure sine wave output
Optional output voltage220/230VAC (or 110/120VAC ), setted by DIP switch
Output frequency 50/60Hz, setted by DIP switch
LED indicators for working and fault status
Lower No-load consumption
Max. efficiency up to 95%
Input protection: Over voltage protection, low voltage protection
Output protection: Over load protection, short circuit protection
Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when over temperature.
IP series has no input polarity reverse protection. Never connect the battery positive(+) and negative(-) reversely, or the fuse will be burnt and even inverter damaged.
