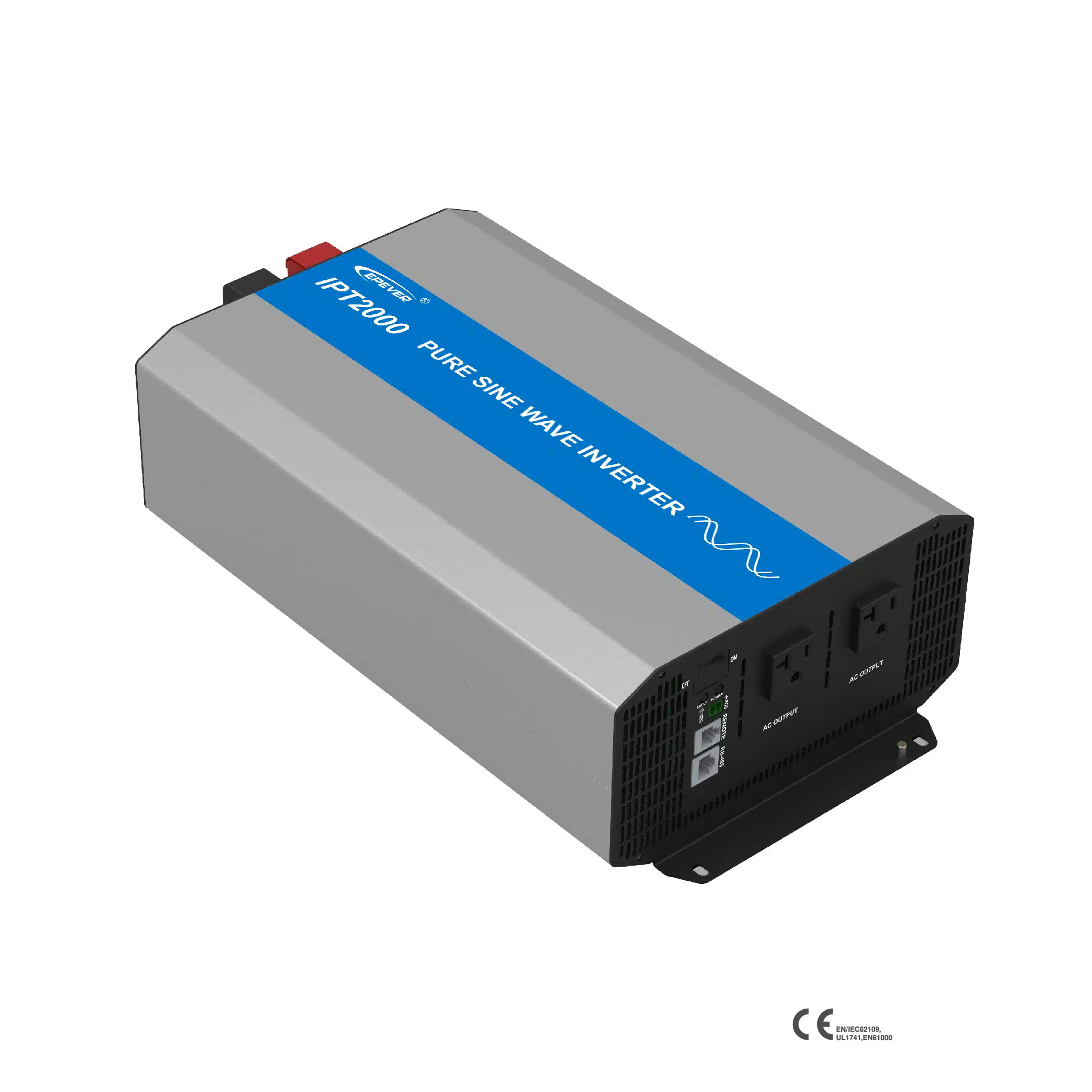

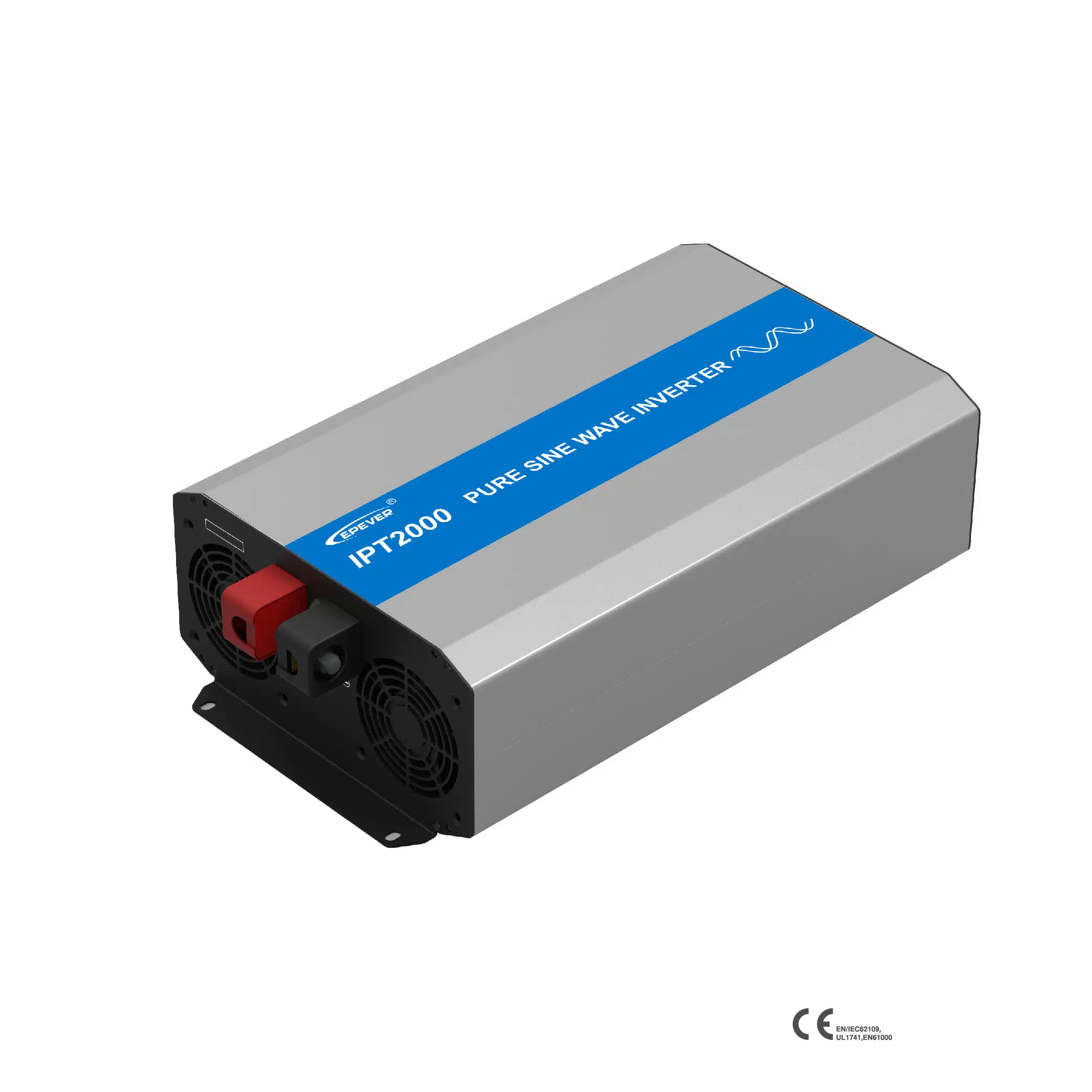

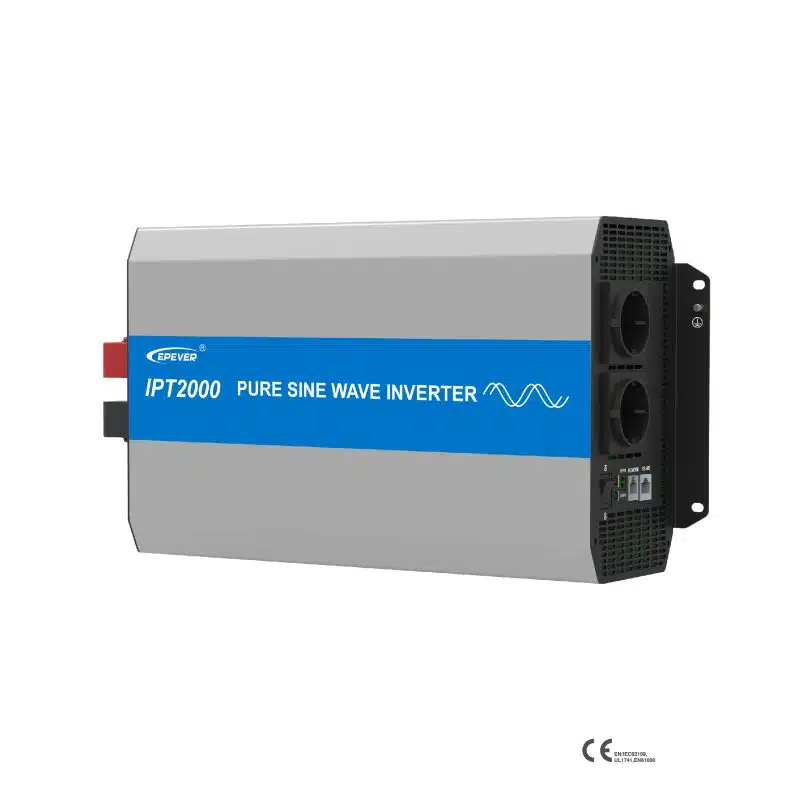

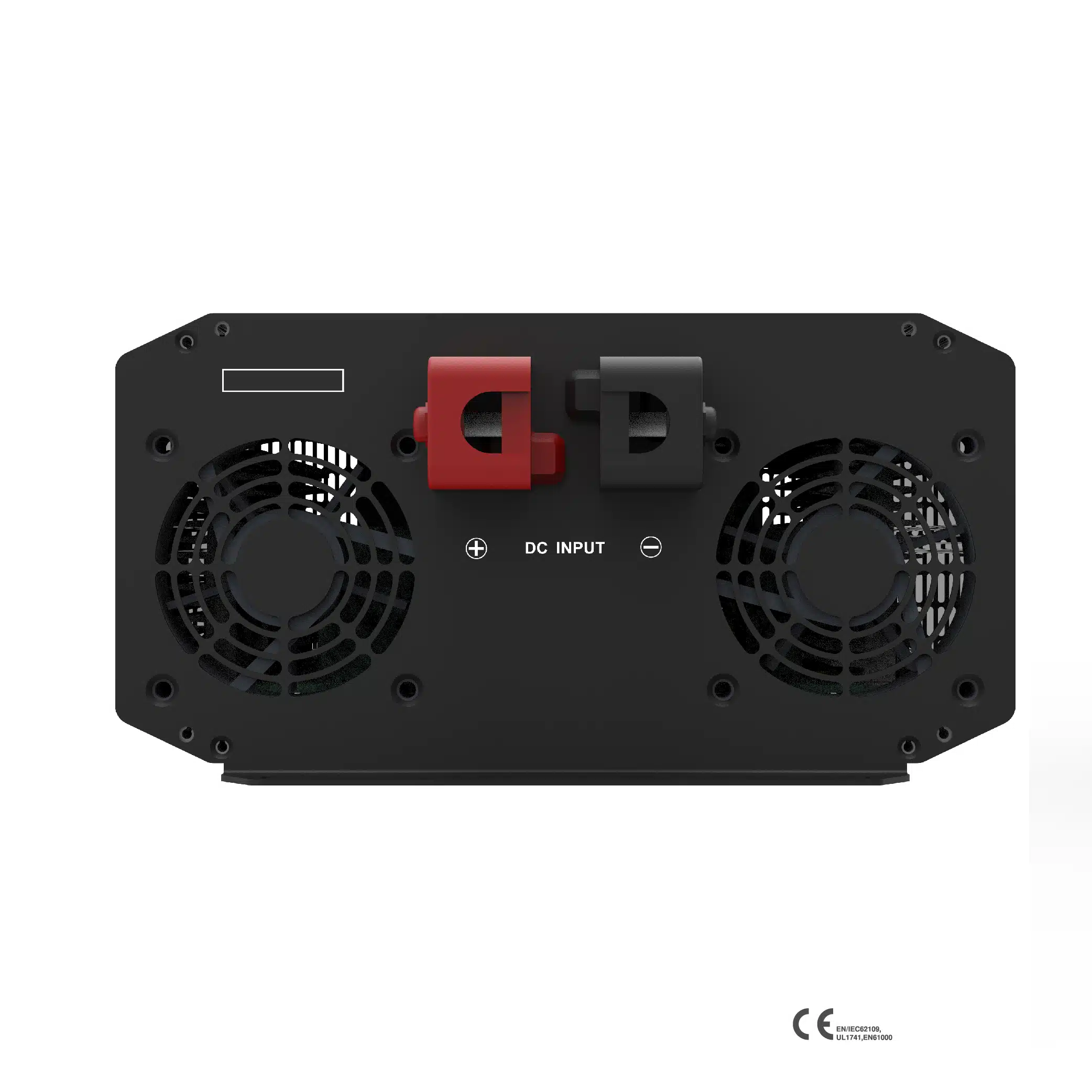

IPT Series (220/230VAC) 350~5000W Pure Sine Wave Inverter
IPT pure sine wave inverter converts 12/24/48VDC to 220/230VAC to power the AC appliance.
- Description
- Additional Information
- Additional Information 2
- Download
- Highlights
- Online Submit
- Reviews 4
The IPT series, a high-frequency sine wave inverter, adopts a fully digital intelligent design and voltage-current dual closed-loop control algorithm. Featured with fast response, high conversion efficiency, low Total Harmonic Distortion(THD), and high reliability running, this series can be widely used in the DC-AC off-grid systems (such as vehicle systems, security monitoring systems, emergency lighting systems, household power systems, field power systems, and other systems requiring higher power quality).
| Parameter | IPT350-12 | IPT350-22 | IPT500-12 | IPT500-22 | IPT1000-12 | IPT1000-22 | IPT1500-12 | IPT1500-22 | IPT1500-42 | |||||||||
| Continuous output power | 350W | 500W | 1000W | 1500W | ||||||||||||||
| Surge power | 700W@5S | 1000W@5S | 2000W@5S | 3000W@5S | ||||||||||||||
| Output voltage | 220VAC (±3%); 230VAC (-7%~+3%) | 220VAC (±3%); 230VAC (-7%~+3%) | ||||||||||||||||
| Output frequency | 50/60Hz ± 0.2% | 50/60Hz ± 0.2% | ||||||||||||||||
| Output wave | Pure Sine Wave | Pure Sine Wave | ||||||||||||||||
| Output distortion THD | THD ≤ 3% (Resistive load) | THD ≤ 3% (Resistive load) | ||||||||||||||||
| Load power factor | 0.2 ~ 1 (Load power ≤ Continuous output power) | 0.2 ~ 1 (Load power ≤ Continuous output power) | ||||||||||||||||
| Rated input voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 48VDC | |||||||||
| Input voltage range | 10.8 ~ 16.0VDC | 21.6 ~ 32VDC | 10.8 ~ 16.0VDC | 21.6 ~ 32VDC | 10.8 ~ 16.0VDC | 21.6 ~ 32.0VDC | 10.8 ~ 16.0VDC | 21.6 ~ 32.0VDC | 43.2 ~ 64.0VDC | |||||||||
| Rated output efficiency | > 89.0% | > 90.0% | > 89.5% | > 91.5% | > 89.0% | > 90.0% | > 89.0% | > 90.0% | > 92.5% | |||||||||
| Max. output efficiency | > 90.0% (70% loads) |
> 91.5% (70% loads) |
> 91.0% (40% loads) |
> 92.0% (40% loads) |
> 93.0% (40% loads) |
> 93.0% (30% loads) |
> 93.0% (30% loads) |
> 93.5% (30% loads) |
> 94.0% (30% loads) |
|||||||||
| Idle current | < 0.15A | < 0.10A | < 0.15A | < 0.10A | < 0.2A | < 0.15A | < 0.2A | < 0.15A | < 0.1A | |||||||||
| No-load current | < 0.9A | < 0.4A | < 0.9A | < 0.6A | < 1.1A | < 0.9A | < 1.2A | < 0.9A | < 0.5A | |||||||||
| RS485 com. port | 5VDC/200mA | 5VDC/200mA | ||||||||||||||||
| Mechanical parameters | ||||||||||||||||||
| Input terminal | M6 | M6 | M6 | M6 | ||||||||||||||
| Dimension (L x W x H) | 229 × 160 × 73mm | 286 × 160 × 73mm | 371 × 228 × 118mm | 387 × 228 × 118mm | ||||||||||||||
| Mounting size | 205 × 75mm | 262 × 75mm | 345 × 145mm | 361 × 145mm | ||||||||||||||
| Mounting hole size | Φ5mm | Φ5mm | Φ6mm | Φ6mm | ||||||||||||||
| Net Weight | 1.5kg | 2.3kg | 4.8kg | 5.8kg | ||||||||||||||
| Environment parameters | ||||||||||||||||||
| Working temperature | -20℃ ~ +60℃ (Refer to the Derating Curve) | |||||||||||||||||
| Storage temperature | -35 ℃ ~ +70 ℃ | |||||||||||||||||
| Relative humidity | ≤ 95% (N.C.) | |||||||||||||||||
| Enclosure | IP20 | |||||||||||||||||
| Altitude | < 5000m (If the altitude exceeds 1000 meters, the rated power will be reduced according to IEC62040.) | |||||||||||||||||
| Parameter | IPT2000-12 | IPT2000-22 | IPT2000-42 | IPT3000-12 | IPT3000-22 | IPT3000-42 | IPT4000-42 | IPT5000-42 | ||||||||||
| Continuous output power | 2000W | 3000W | 4000W | 5000W | ||||||||||||||
| Surge power | 4000W@5S | 6000W@5S | 8000W@5S | |||||||||||||||
| Output voltage | 220VAC (±3%); 230VAC (-7%~+3%) | 220VAC (±3%); 230VAC (-7%~+3%) | ||||||||||||||||
| Output frequency | 50/60Hz ± 0.2% | 50/60Hz ± 0.2% | ||||||||||||||||
| Output wave | Pure Sine Wave | Pure Sine Wave | ||||||||||||||||
| Output distortion THD | THD ≤ 3% (Resistive load) | THD ≤ 3% (Resistive load) | ||||||||||||||||
| Load power factor | 0.2 ~ 1 (Load power ≤ Continuous output power) | 0.2 ~ 1 (Load power ≤ Continuous output power) | ||||||||||||||||
| Rated input voltage | 12VDC | 24VDC | 48VDC | 12VDC | 24VDC | 48VDC | 48VDC | |||||||||||
| Input voltage range | 10.8 ~ 16.0VDC | 21.6 ~ 32.0VDC | 43.2 ~ 64.0VDC | 10.8 ~ 16.0VDC | 21.6 ~ 32.0VDC | 43.2 ~ 64.0VDC | 43.2 ~ 64.0VDC | |||||||||||
| Rated output efficiency | > 88.0% | > 90.0% | > 92.5% | > 87.0% | > 90.0% | > 92.5% | > 91.0% | |||||||||||
| Max. output efficiency | > 94.0% (30% loads) |
> 93.0% (30% loads) |
> 94.5% (30% loads) |
> 94.0% (30% loads) |
> 94.0% (30% loads) |
> 94.5% (30% loads) |
> 94.0%(30% loads) | |||||||||||
| Idle current | < 0.2A | < 0.15A | < 0.1A | < 0.2A | < 0.15A | < 0.1A | < 0.1A | < 0.1A | ||||||||||
| No-load current | < 1.2A | < 1.0A | < 0.5A | < 1.6A | < 1.0A | < 0.5A | < 0.6A | < 0.8A | ||||||||||
| RS485 com. port | 5VDC/200mA | 5VDC/200mA | ||||||||||||||||
| Mechanical parameters | ||||||||||||||||||
| Input terminal | M10 | M6 | M6 | M10 | M6 | M6 | M6 | M6 | ||||||||||
| Dimension (L x W x H) | 420 × 228 × 118 mm |
421 × 228 × 118 mm |
421 × 228 × 118 mm |
557 × 228 × 118 mm |
521 × 270 × 143 mm |
491 × 228 × 118 mm |
516 × 228 × 118 mm |
531 × 228 × 118 mm |
||||||||||
| Mounting size | 395 × 145mm | 395 × 145mm | 395 × 145mm | 532 × 145mm | 495 × 145mm | 465 × 145mm | 490 × 145mm | 505 × 145mm | ||||||||||
| Mounting hole size | Φ6mm | Φ6mm | Φ6mm | Φ6mm | Φ6mm | Φ6mm | Φ6mm | Φ6mm | ||||||||||
| Net Weight | 7.8kg | 6.5kg | 6.5kg | 10.0kg | 8.5kg | 7.0kg | 8.0kg | 9.0kg | ||||||||||
| Environment parameters | ||||||||||||||||||
| Working temperature | -20℃ ~ +60℃ (Refer to the Derating Curve) | |||||||||||||||||
| Storage temperature | -35 ℃ ~ +70 ℃ | |||||||||||||||||
| Relative humidity | ≤ 95% (N.C.) | |||||||||||||||||
| Enclosure | IP20 | |||||||||||||||||
| Altitude | < 5000m (If the altitude exceeds 1000 meters, the rated power will be reduced according to IEC62040.) | |||||||||||||||||
| AC output Interface* | C China E Europe A Australia UK UK F France | |||||||||||||||||
Datasheet
EPEVER-DataSheet-IPT-220-230-240VAC
Manual
IPT-Manual-EN-V2.2
Product Highlights
Pure sine wave output
Input to output electrical isolation
Output power factor up to 1
Input Protection: Low-voltage, Over-voltage
Output Protection: Overload, Short circuit, Overheating
RS485 com. port to realize remote monitoring
External switch design, matched with EPEVER products, to expand inverter control function and reduce power consumption
Diversified AC output sockets
EN/IEC62109-1/2, EN61000-6-2/4, and FCC approved
solar inverter with battery price –
Do you know the unbelievable energy of solar photovoltaic cells? I did some study online as well as discovered that this technology can in fact aid produce electrical power! Would certainly like to hear your ideas on it.
solar rooftop systems –
Really insightful, thanks.
Chris Gallegos –
Very important details, Thanks.
Victor Berrocal –

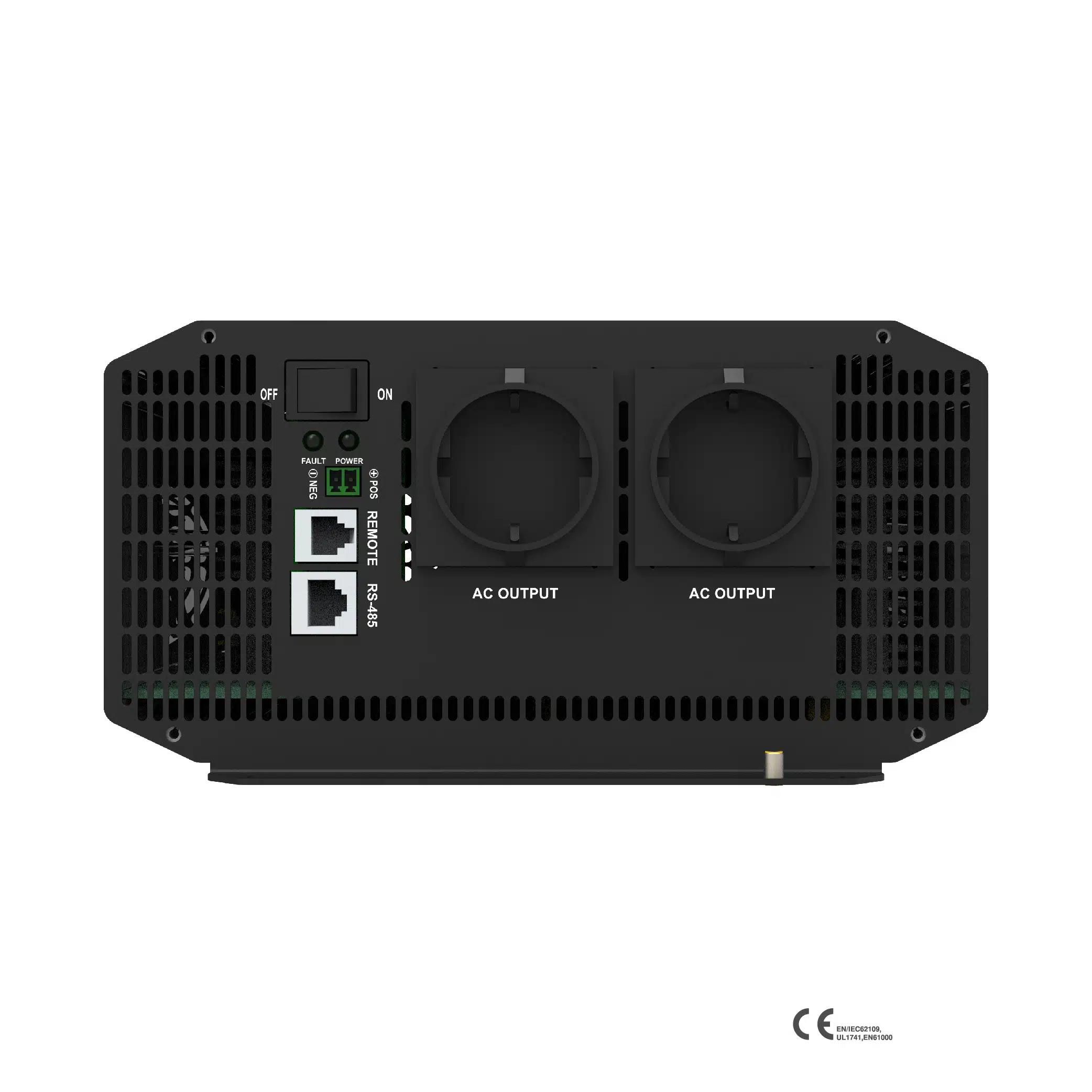

The +pos and -neg output are used to remotely activate the inverter, it is similar to pressing the ON-OFF switch that the inverter has.
