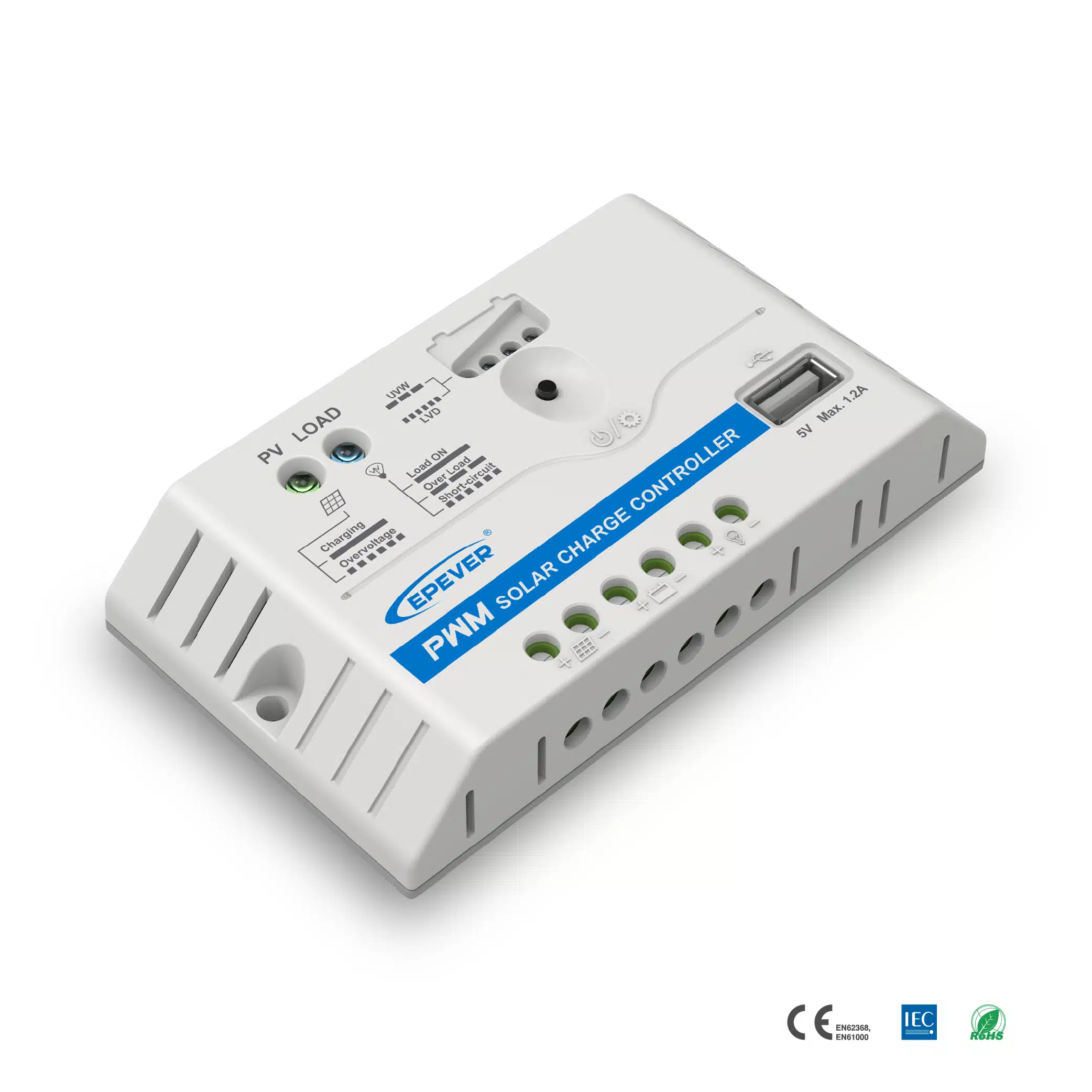

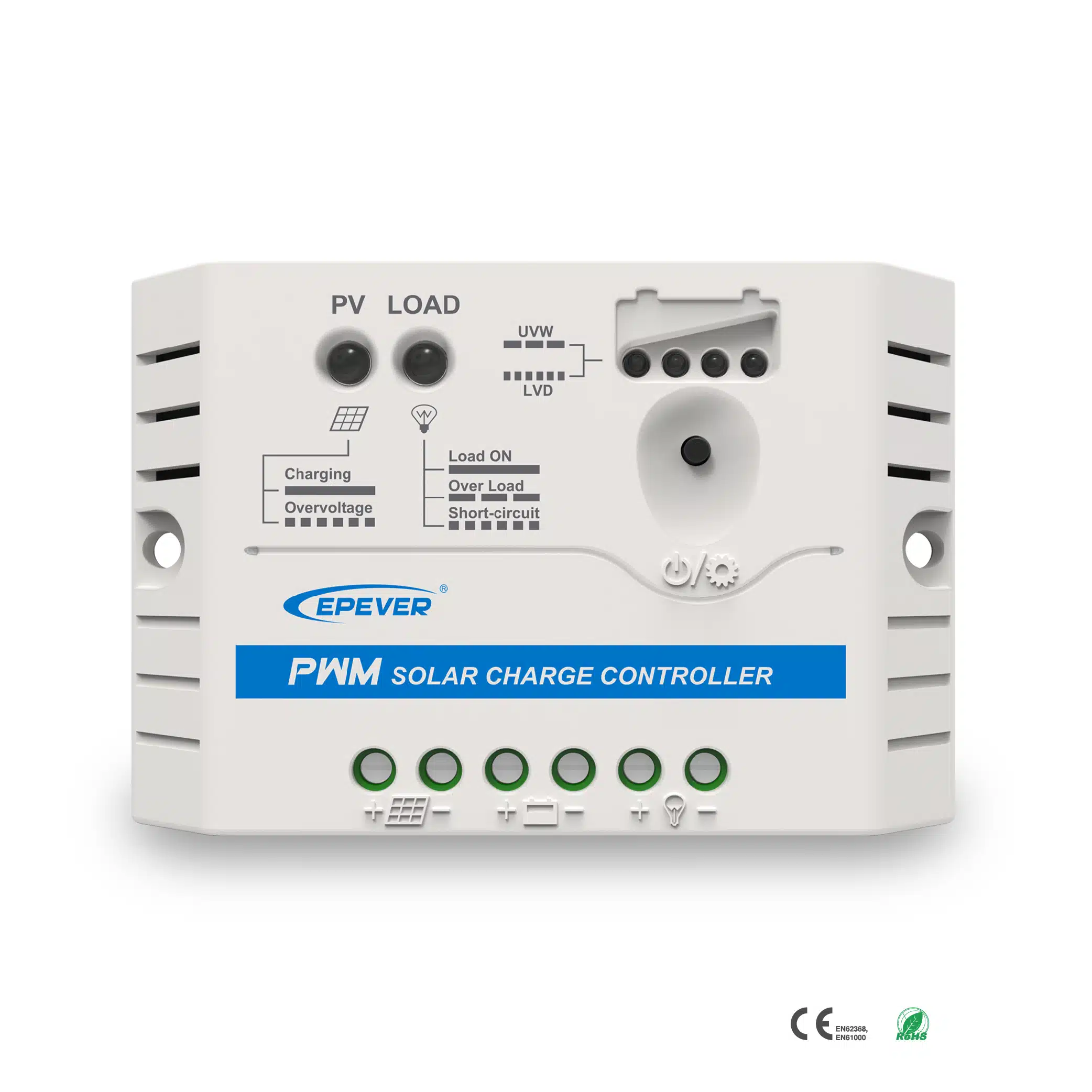

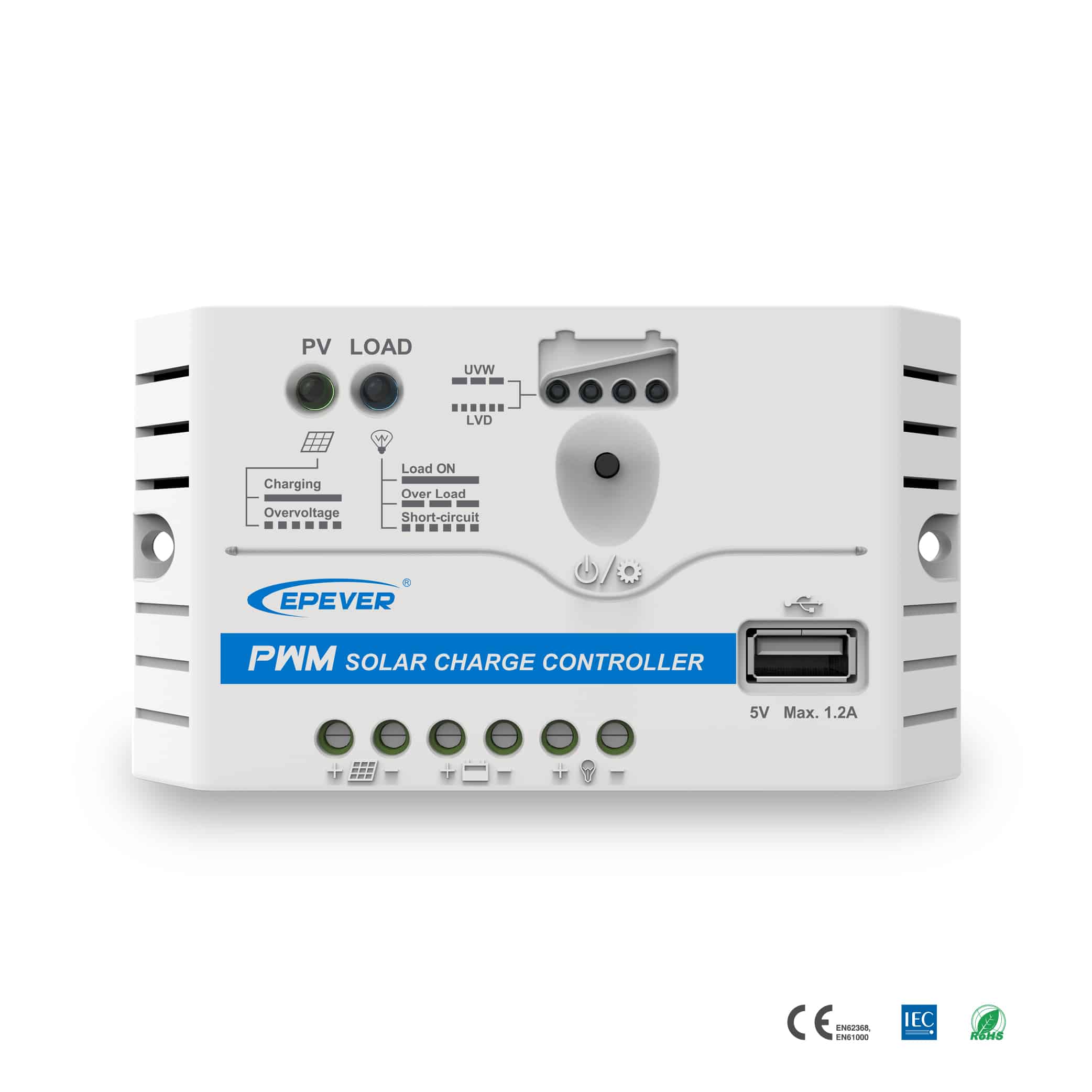

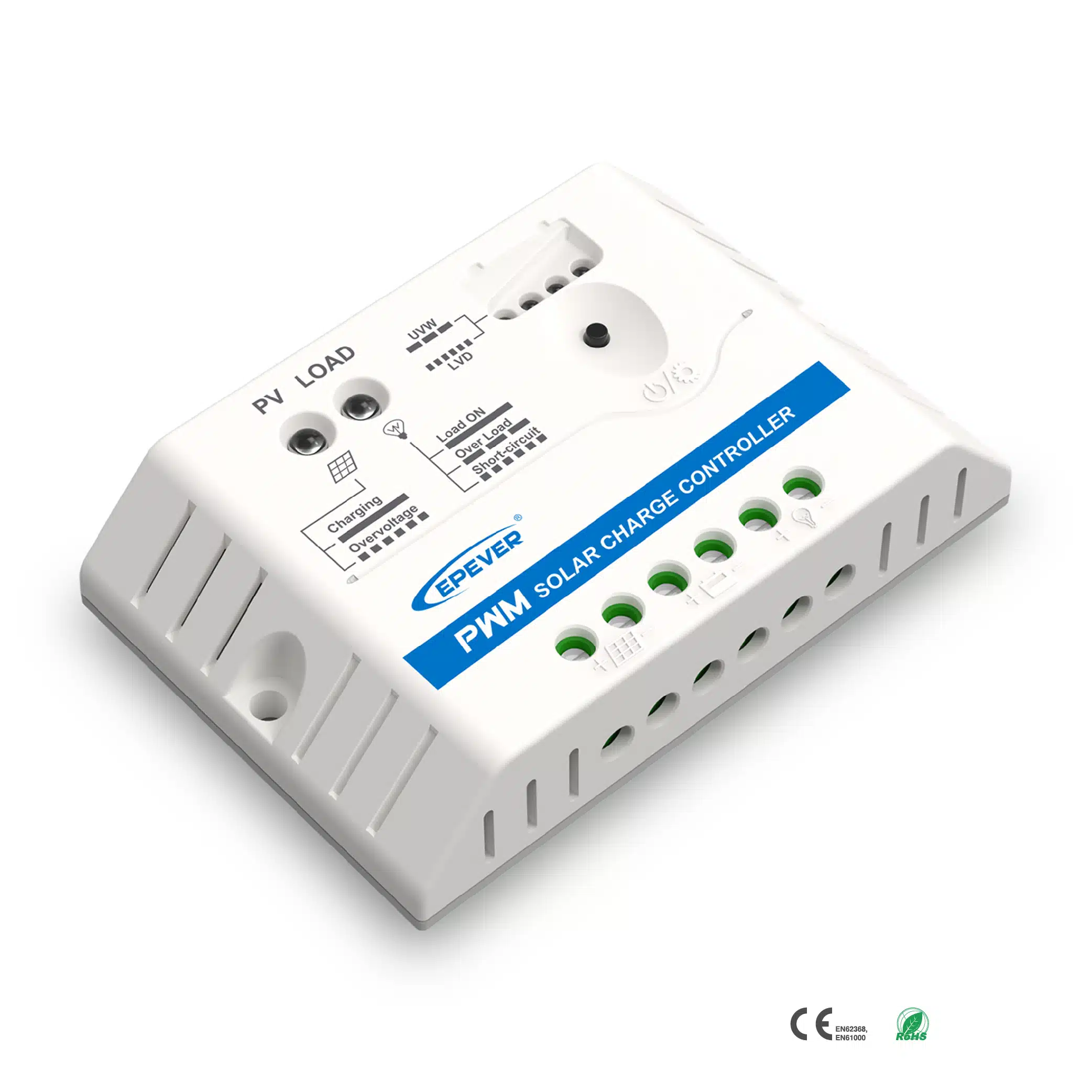

LS-E(EU) Series(5A~30A) PWM Charge Controller
With LED indicator and +5V/1.2A USB terminal output.
LandStar E(EU) series is a reliable, stable, and economical solar charge controller, easy to operate. Based on the LS-E series, the LS-EU series adds a +5V/1.2A USB terminal output which can charge mobile phones, power DC fans, and other DC electronic devices.
| Model | LS1024E | LS2024E | LS0512EU | LS1012EU | LS1024EU | LS2024EU | LS3024EU |
| Nominal system voltage | 12/24VDC Auto | 12/24VDC Auto | 12VDC | 12VDC | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto |
| Battery type | Sealed(Default)/Gel/Flooded | ||||||
| Battery input voltage range | 8～32V | 8～32V | 8～16V | 8～16V | 8～32V | 8～32V | 8～32V |
| Rated charge current | 10A | 20A | 5A | 10A | 10A | 20A | 30A |
| Rated discharge current | 10A | 20A | 5A | 10A | 10A | 20A | 30A |
| Max. PV open circuit voltage | 50V | 50V | 30V | 30V | 50V | 50V | 50V |
| Equalization voltage | Sealed:14.6V,Flooded:14.8V | ||||||
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V | ||||||
| Float voltage | Gel/Sealed/Flooded:13.8V | ||||||
| Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V | ||||||
| Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V | ||||||
| Self-consumption | 12V≤5mA; 24V≤7mA | ||||||
| Temperature compensation | -5mV/℃/2V | ||||||
| Relative humidity | ≤95%,(N.C.) | ||||||
| Enclosure | IP30 | IP30 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Grounding | Common Positive | ||||||
| Operating temperature range | -35℃～50℃ | ||||||
| Dimensions(LxWxH)(mm) | 101.2×67×21.8 | 128×85.6×34.8 | 109.7×65.5×20.8 | 120.3×67×21.8 | 120.3×67×21.8 | 148×85.6×34.8 | 148×106.8×43.7 |
| Weight | 0.08kg | 0.15kg | 0.09kg | 0.10kg | 0.10kg | 0.18kg | 0.29kg |
Datasheet
EPEVER-Datasheet-LandStar E(EU)
Manual
LS-E-EU-Manual-EN-V4.2
Certificates
Certificate EMC LandStar- EU
Certificates
Certificate ROHS LandStar- EU
Certificates
Certificate EN60950 LandStar- EU
Product Highlights
Series PWM charging mode
LED indicator indicates battery situation
Battery temperature compensation function
Extensive electronic protection
USB ports available (LS-EU series only)
User friendly design buttons
Industrial quality standard design
LS-E(EU)series supports "Manual mode" only (default is ON when power-up). The load will be turned ON and OFF manually.
