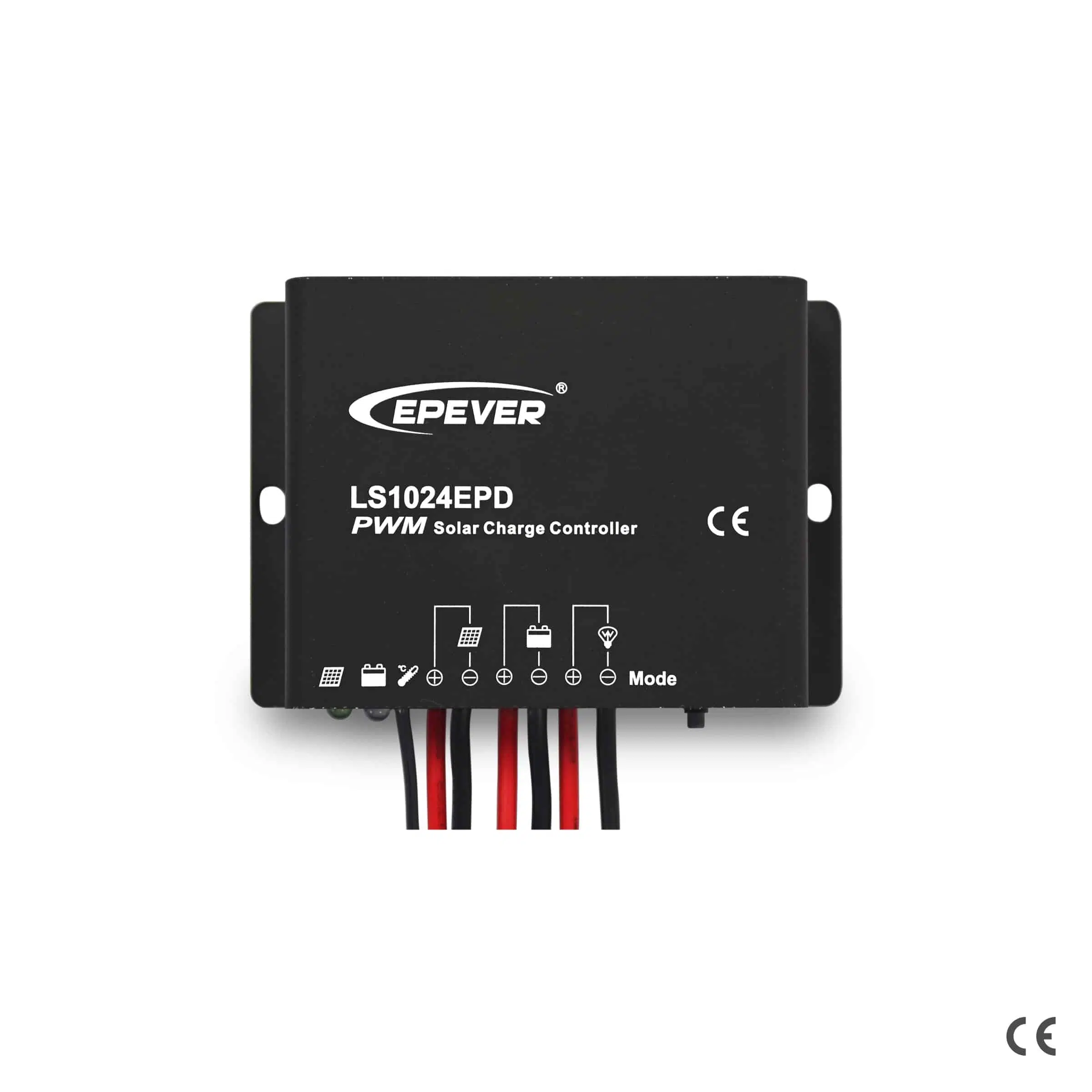

LS-EPD Series(10/20A) PWM Charge Controller
LS-EPD charge controller๏ผwith digital tube menu control and waterproof design.
LS-EPD series adopts a digital tube menu control design. The waterproof design is mainly considered to be used in harsh environments. It is widely applied to folding panels, outdoor camping, field automatic detection equipment, traffic lights, solar street lights, courtyard light systems, etc.,
| Model | LS1024EPD | LS2024EPD |
| Nominal system voltage | 12/24VDC Auto | |
| Battery type | Sealed battery | |
| Battery input voltage range | 8๏ฝ32V | |
| Rated charge current | 10A | 20A |
| Rated discharge current | 10A | 20A |
| Max. PV open circuit voltage | 50V | |
| Equalization voltage | 14.8V(12V);29.6V(24V) | |
| Boost voltage | 14.4V(12V);28.8V(24V) | |
| Float voltage | 13.7V(12V);27.4V(24V) | |
| Low voltage reconnect voltage | 12.6V(12V);25.2V(24V) | |
| Low voltage disconnect voltage | 11.2V(12V);22.4V(24V) | |
| Self-consumption | 12V:โค4.58mA๏ผ24V:โค6.01mA | |
| Temperature compensation | -5mA/โ/2V(25โ๏ผ | |
| Enclosure | IP67 | |
| Grounding | Common Positive | |
| Operating temperature range | -35โ๏ฝ+50โ | |
| Dimensions(LxWxH)(mm) | 108.5ร75ร25.6 | |
| Net Weight | 410g | 435g |
Datasheet
EPEVER-Datasheet-LS-EPD
Manual
LS-EPD-Manual-EN-V2.2
Certificates
Certificate EMC LandStar-EPD
Certificates
Certificate ROHS LandStar-EPD
Certificates
Certificate LVD LandStar-EPD
Certificates
Certificate IP67 LandStar-EPD
Product Highlights
Series PWM charging mode
Multiple load control modes
Extensive electronic protection
Battery type: sealed battery
LED indicators for situation indication and programming
Fully encapsulated PCB, IP67 protection
Adopt high quality international brand components
When LS-EPD is in "Test Mode", the load output will be turned ON immediately when PV is lower than 5V (5V for 12V system, x2 for 24V system). There is no delay to turn ON the load.
