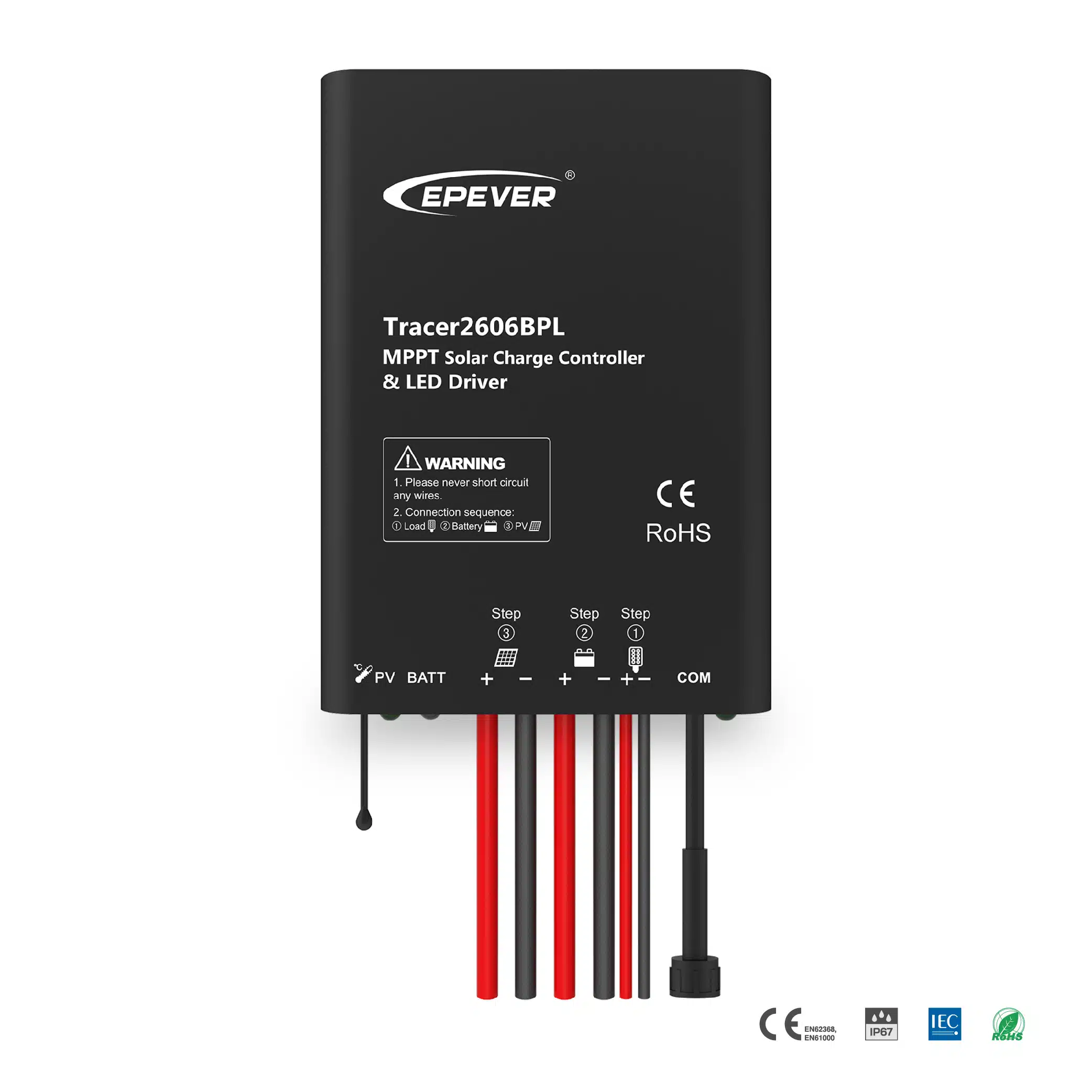

Tracer BPL Series(10~20A) IOT MPPT Solar Controller & LED Driver
Tracer-BPL has built-in LED driver and can realize remote monitoring via IoT.
The Tracer-BPL series MPPT solar charge controller combines solar charge controller and LED constant current driver into one unit. It has multiple load control modes which are ideal for various solar LED Lighting applications, especially when a dimming function is needed. This series adopts the advanced MPPT (Maximum Power Point Tracking) charging methods which will results up to 30% charging efficiency increase compared with the PWM charge controllers. Thanks to the RS485 communication, the Tracer-BPL has the ability to realize remote monitoring via IoT.
| Item | Tracer2606BPL | Tracer3906BPL | Tracer5206BPL | Tracer2610BPL | Tracer3910BPL | Tracer5210BPL | |
| Nominal system voltage | 12/24VDCย Auto(Lithium batteriesย cannotย identify system voltageย automatically) | ||||||
| Battery input voltage range | 9~32VDC | ||||||
| Rated charge currentย | 10A | 15A | 20A | 10A | 15A | 20A | |
| Rated charge power | 130W/12V;260W/24V | 200W/12V;400W/24V | 260W/12V;520W/24V | 130W/12V; 260W/24V |
200W/12V; 400W/24V |
260W/12V;520W/24V | |
| Max. PV open circuit voltage | 60V (at minimum operating environment temperature) 46V( at 25โย environment temperature) |
100V (at minimum operating environment temperature) 92V (at 25โย environment temperature) |
|||||
| MPP Voltage range | ( Battery voltage+2V) ~ 36V | (Battery voltage+2V) ~ 72V | |||||
| Max. output current | 3.3A | 4.5A | 6.6A | 3.3A | 4.5A | 6.6A | |
| Max. output powerย | 100W | 130W | 200W | 100W | 130W | 200W | |
| Output voltage range | (Max. battery voltage+2V)ย ~ย 58V | (Max. battery voltage+2V)ย ~ย 80V | |||||
| Load open circuit voltage | 58V | 80V | |||||
| Load over voltage protection | 63V | 100V | |||||
| Maximum output efficiency | 96% | ||||||
| Output current control accuracy | โค2% | ||||||
| Battery Type | Lead-acidย battery:ย Sealed(Default) / Gel / Flooded/User;ย Lithium battery:ย LiFePO4/ย Li-NiCoMn/ User | ||||||
| Lead-acid | Equalize Charging Voltage | Sealed:ย 14.6V/Gel๏ผNo / Flooded:ย 14.8V/User:9-17Vย (ร2/24V) | |||||
| Boost Charging Voltage | Sealed:ย 14.4V/Gel๏ผ14.2V/Flooded:ย 14.6V/User:9-17Vย (ร2/24V) | ||||||
| Float Charging Voltage | Sealed/Gel/Flooded:ย 13.8V/User:ย 9-17Vย (ร2/24V) | ||||||
| Low Voltage Reconnect Voltage | Sealed/Gel/Flooded:ย 12.6V/User:ย 9-17Vย (ร2/24V) | ||||||
| Low Voltage Disconnect Voltage | Sealed/Gel/Flooded:ย 11.1V/User:ย 9-17Vย (ร2/24V) | ||||||
| Lithium | Boost Charging Voltage | LiFePO4:14.5V/ย Li-NiCoMn:ย 12.5V / User:ย 9-17Vย (ร2/24V) | |||||
| Low Voltage Reconnect Voltage | LiFePO4:12.8V /ย Li-NiCoMn:ย 10.5V / User:ย 9-17Vย (ร2/24V) | ||||||
| Low Voltage Disconnect Voltage | LiFePO4:11.1V /ย Li-NiCoMn:ย 9.3V / User:ย 9-17Vย (ร2/24V) | ||||||
| Self-consumption | โค15mA/12V;ย โค22mA/24V | ||||||
| Temperature compensationย coefficient | -3mV/โ/2V(Lithium batteriesย don't have temperature compensation coefficient) | ||||||
| Communication | RS485 | ||||||
| Environment temperature | -40โ๏ฝ+60โ | ||||||
| Enclosure | IP67 | ||||||
| Dimension (L x W x H) | 124ร89ร30mm | 150ร93.5ร32.7mm | 153ร105ร52.1mm | 124ร89ร30mm | 150ร93.5ร32.7mm | 153ร105ร52.1mm | |
| Mounting hole size | ฮฆ3.5mm | ||||||
| Mounting size (L x W) | 88ร76mm | 120ร83mm | 120ร94mm | 88ร76mm | 120ร83mm | 120ร94mm | |
| Power cable | PV/BAT: 14AWG(2.5mm2) LOAD: 18AWG(1.0mm2) |
PV/BAT: 12AWG(4mm2) LOAD: 16AWG(1.5mm2) |
PV/BAT: 14AWG(2.5mm2) LOAD: 18AWG(1.0mm2) |
PV/BAT: 12AWG(4mm2) LOAD: 16AWG(1.5mm2) |
|||
| Net weight | 0.54kg | 0.73kg | 1.18kg | 0.54kg | 0.73kg | 1.18kg | |
Datasheet
EPEVER-Datasheet-Tracer-BPL
Manual
Tracer-BPL-Manual-EN-V3.6
Certificates
Certificate EMC Tracer-BPL
Certificates
Certificate IEC Tracer-BPL
Certificates
Certificate IP67 Tracer-BPL
Certificates
Certificate EN LVD Tracer-BPL
Certificates
Certificate ROHS Tracer-BPL
Product Highlights
MPPT charging mode
LED load dimmer function
Support lead-acid and lithium-ion batteries
Lithium battery self-activating function
Intelligent power derating to ensure 365 days lighting on
Multiple load control modes
Extensive electronic protection
RS485 communication port to realize IOT monitor
IP68 Ingress protection(1.5 meters, 72h)
