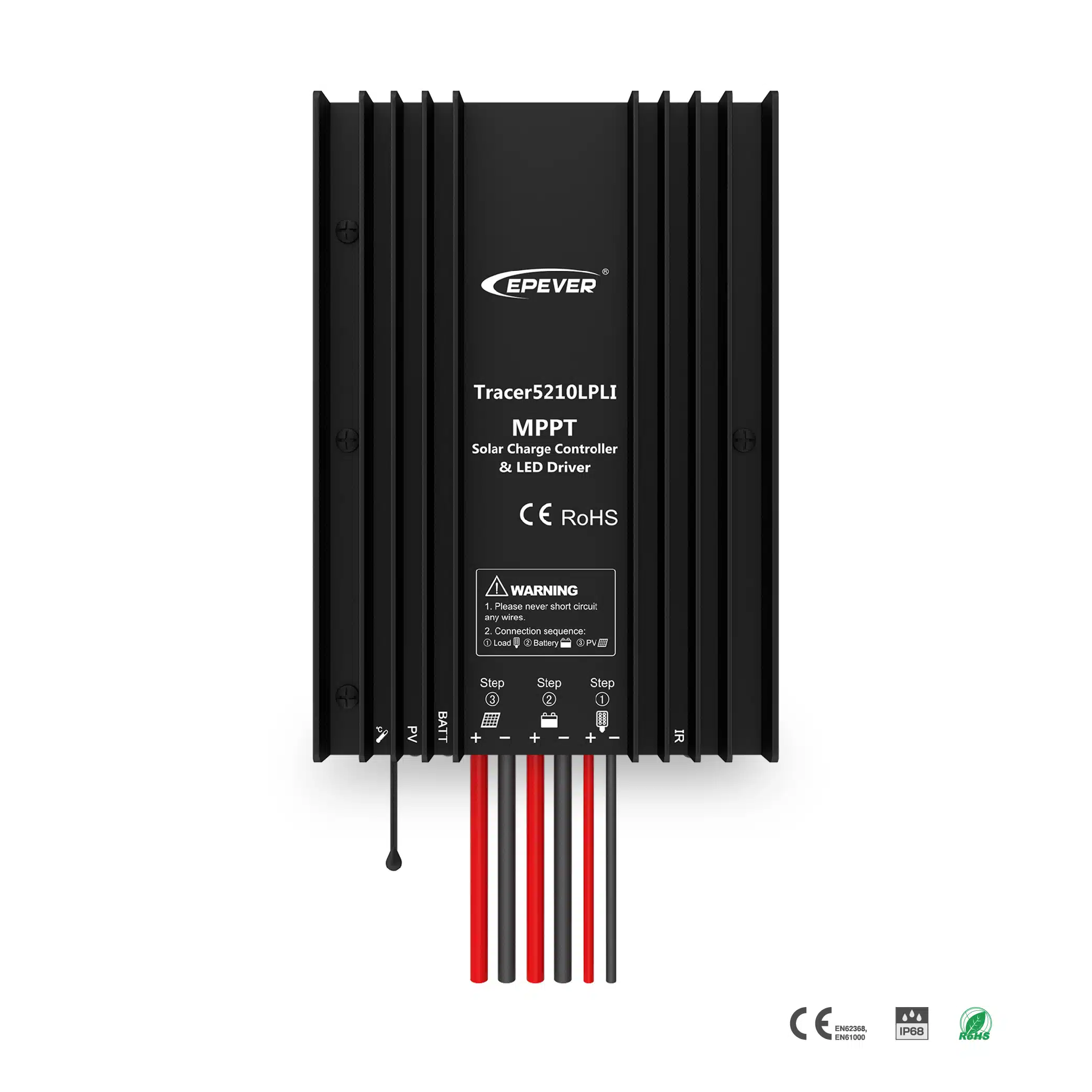

Tracer LPLI Series(10~20A) MPPT Solar Controller & LED Driver
Built-in LED driver,IP68 ingress protection and infared communication.
Tracer-LPLI series MPPT solar charge controller combines solar charge controller and LED constant current driver into one unit. It has multiple load control modes which are ideal for various solar LED Lighting applications, especially when a dimming function is needed. This series adopts the advanced MPPT (Maximum Power Point Tracking) charging methods which will result up to 30% charging efficiency increase compared with the PWM charge controllers.
| Item | Tracer1305LPLI | Tracer2606LPLI | Tracer3906LPLI | Tracer5206LPLI | Tracer2610LPLI | Tracer3910LPLI | Tracer5210LPLI | |
| Nominal system voltage | 12VDC | 12/24VDC | ||||||
| Battery input voltage range | 8.5๏ฝ16VDC | 8.5๏ฝ32VDC | ||||||
| Rated charge currentย | 10A/12V | 10A | 15A | 20A | 10A | 15A | 20A | |
| Rated charge power | 130W/12V | 130W/12V;ย 260W/24V | 200W/12V;ย 400W/24V | 260W/12V;ย 520W/24V | 130W/12V;ย 260W/24V | 200W/12V;ย 400W/24V | 260W/12V;ย 520W/24V | |
| Max. PV open circuit voltage | 50V (Min. Temp.) 45V(25โ) |
60V(at minimum operating environment temperature) 46V(at 25โย environment temperature) |
100V(at minimum operating environment temperature) 92V(at 25โย environment temperature) |
|||||
| MPP Voltage range | (ย Battery voltage+2V)๏ฝ36V | (ย Battery voltage+2V)๏ฝ72V | ||||||
| Max. output current | 3.3A | 3.3A | 4.5A | 6.6A | 3.3A | 4.5A | 6.6A | |
| Max. output powerย | 100W | 100W | 130W | 200W | 100W | 130W | 200W | |
| Output voltage range | (ย Max.ย battery voltage+2V)๏ฝ46V | (ย Max.ย battery voltage+2V)๏ฝ58V | (ย Max.ย battery voltage+2V)๏ฝ80V | |||||
| Load open circuit voltage | 46V | 58V | 80V | |||||
| Load over-voltage protection | 50V | 63V | 100V | |||||
| Maximum output efficiency | 96% | |||||||
| Output current control accuracy | โค2% | |||||||
| Battery Type | Lead-acid battery:ย Sealed(default)/Gel/Flooded/User; Lithium battery:LiFePO4/Li-NiCoMn/User | |||||||
| Lead-acid | Equalizeย Chargingย Voltage | Sealed:14.6V;ย Flooded:14.8V;ย User:9-17Vย (24Vsystemร2) | ||||||
| Boostย Charging Voltage | Sealed:14.4V;ย Gel:14.2V;ย Flooded:14.6V;ย User:9-17V(24Vsystemร2) | |||||||
| Float Charging Voltage | Sealed/Gel/Flooded:13.8V;ย User:9-17V(24Vsystemร2) | |||||||
| Low Voltage Reconnect Voltage | Sealed/Gel/Flooded:12.6V;ย User:9-17V(24Vsystemร2) | |||||||
| Low Voltage Disconnect Voltage | Sealed/Gel/Flooded:11.1V;ย User:9-17V(24Vsystemร2) | |||||||
| Lithium | Boost Charging Voltage | LiFePO4(4s):14.5V;ย Li-NiCoMn(3s):12.5V; User:9-17V(24Vsystemร2) | ||||||
| Low Voltage Reconnect Voltage | LiFePO4(4s):12.8V;ย Li-NiCoMn(3s):10.5V; User:9-17V(24Vsystemร2) | |||||||
| Low Voltage Disconnect Voltage | LiFePO4(4s):11.1V;ย Li-NiCoMn(3s):9.3V; User:9-17V(24Vsystemร2) | |||||||
| Self-consumption | โค15mA/12V; โค22mA/24V | |||||||
| Communication | IR communication | |||||||
| Work temperature range | -40โ๏ฝ+60โ | |||||||
| Enclosure | IP68(1.5m,72h) | |||||||
| Dimension (L x W x H) | 124ร89ร30mm | 150ร93.5ร32.7mm | 153ร105ร52.1mm | 124ร89ร30mm | 150ร93.5ร32.7mm | 153ร105ร52.1mm | ||
| Mounting hole size | ฮฆ3.5mm | |||||||
| Mounting size (L x W) | 88ร76mm | 120ร83mm | 120ร94mm | 88ร76mm | 120ร83mm | 120ร94mm | ||
| Power cable | PV/BAT:14AWG(2.5mm2) LOAD:18AWG(1.0mm2) |
PV/BAT:12AWG(4mm2) LOAD:16AWG(1.5mm2) | PV/BAT:14AWG(2.5mm2) LOAD:18AWG(1.0mm2) |
PV/BAT:12AWG(4mm2) LOAD:16AWG(1.5mm2) | ||||
| Net weight | 0.52kg | 0.52kg | 0.71kg | 1.18kg | 0.52kg | 0.71kg | 1.18kg | |
Datasheet
EPEVER-Datasheet-Tracer-LPLI
Manual
Tracer-LPLI-Manual-EN-V2.6
Certificates
Certificate EMC Tracer-LPLI
Certificates
Certificate IEC 60950-1 Tracer-LPLI
Certificates
Certificate IP68 Tracer-LPLI
Certificates
Certificate EN60950 Tracer-LPLI
Certificates
Certificate ROHS Tracer-LPLI
Product Highlights
Infrared wireless communication design
MPPT charging mode
Support lead-acid and lithium-ion batteries
Lithium battery self-activating function
Advanced intelligent power derating function
Multiple load control modes
Automatic load test feature during installation
Extensive electronic protection
IP68 protection class (1.5 meters, 72h)
โ Make sure the LED street lights do not have a built-in LED driver. โก Make sure the rated output voltage of the charger is higher than the rated LED light voltage โข Make sure the rated output power of the charger is not lower than the rated power of the LED lights. โฃ The output current of the charge controller is not bigger than the rated current of the LED lights.
