Tracer-CPN Solar Charge Controller
- 7 June 2023
- 1917 views
- No Comments
Advanced Technology for Optimal Solar Power Performance
As the demand for solar power grows, a dependable and efficient solar charge controller is crucial for optimizing your solar power system. EPEVER introduces the Tracer-CPN 5V/12VDC solar charge controller, a new series offering advanced features and enhanced performance.
The Tracer-CPN comes with a built-in Bluetooth module for easy parameter monitoring and adjustment via the EPEVER APP.
It also includes a self-activating low-temperature protection function for lithium batteries. Let’s explore its key features and highlights.
Efficient Power Tracking with Advanced MPPT System

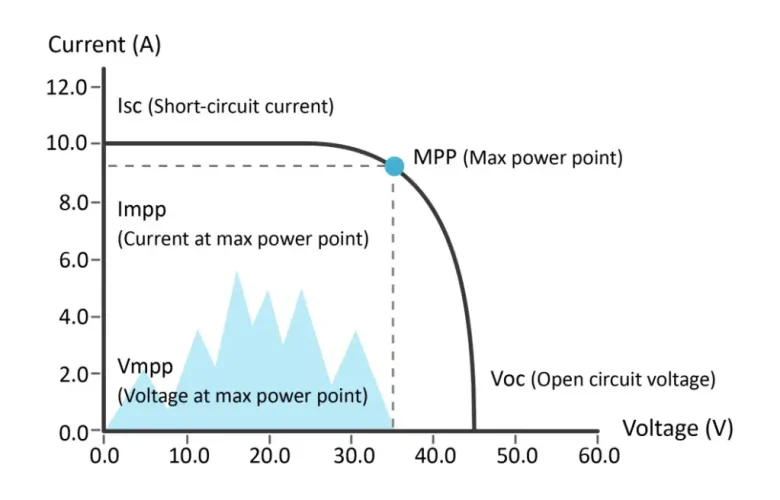

The Tracer-CPN boasts an advanced maximum power point tracking (MPPT) system, which significantly improves energy conversion efficiency – up to 30% higher than conventional PWM charging. With an MPPT tracking efficiency of 99%, this solar charge controller ensures optimal performance for your solar panels. Additionally, its “MPPT charging conversion efficiency” reaches up to 98%, making it an ideal choice for users seeking high power conversion efficiency.
Wide Battery Compatibility: Support for Multiple Battery Types

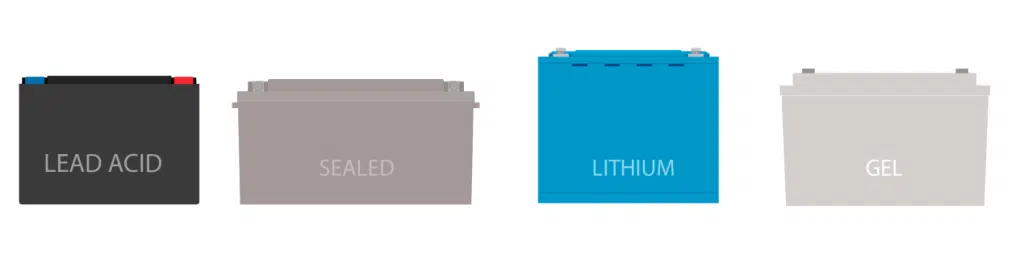

The Tracer-CPN supports various battery types, including lithium-ion, lead-acid, gel, and sealed.

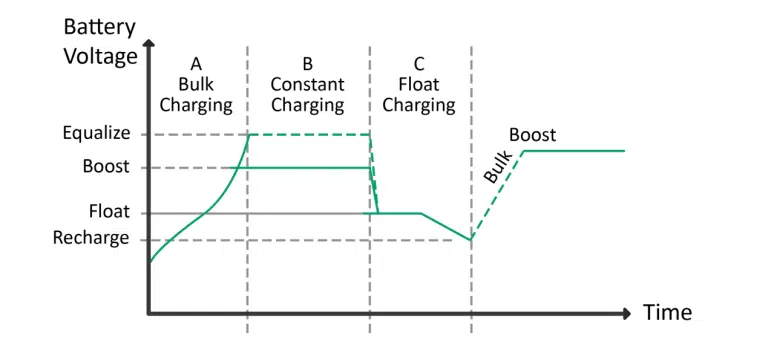

Its three-stage charging mode – Bulk, Boost/Equalize, and Float – provides optimal charging and maintenance for your batteries.
Shared Negative Electrode Design

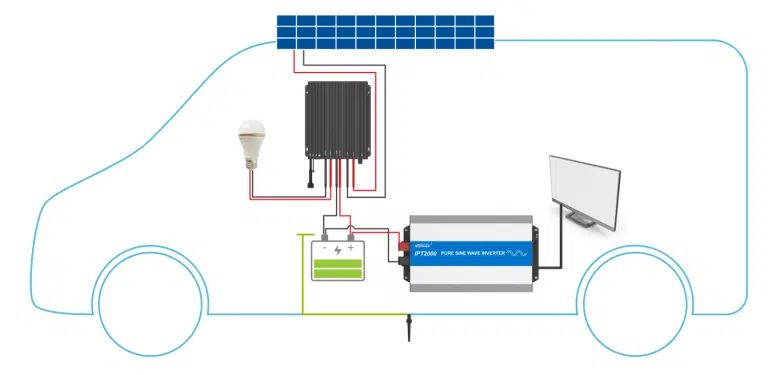

The shared negative electrode design enables the Tracer-CPN to cater to diverse applications, such as RVs, yachts, camping, outdoor and field monitoring, and water conservancy monitoring.
This feature is particularly useful in systems with multiple solar panels or batteries connected in series or parallel.
Connectivity: Bluetooth and Modbus Communication

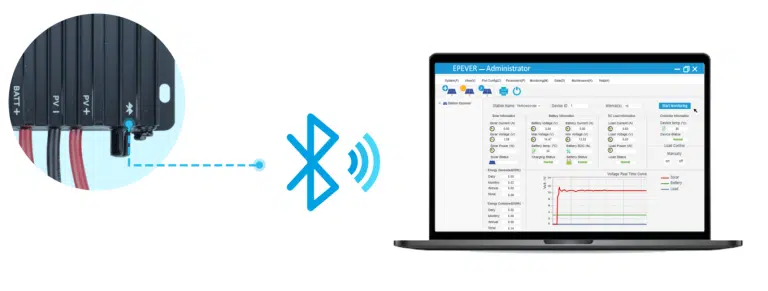

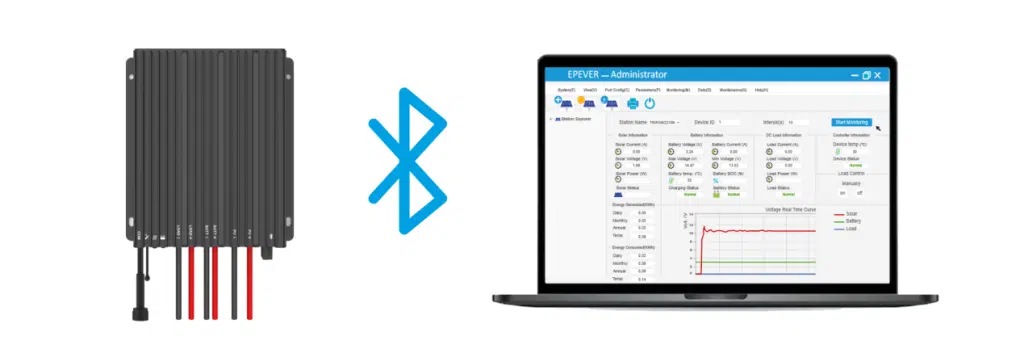

With built-in Bluetooth connectivity, the Tracer-CPN allows seamless parameter monitoring and modification through the EPEVER APP, eliminating the need for an additional Bluetooth module. The device also incorporates a secure Modbus communication protocol with a waterproof RS485 interface at 5V DC for reliable communication and enhanced protection. The interface is isolated for added security.
Construction: Robust and Durable Design

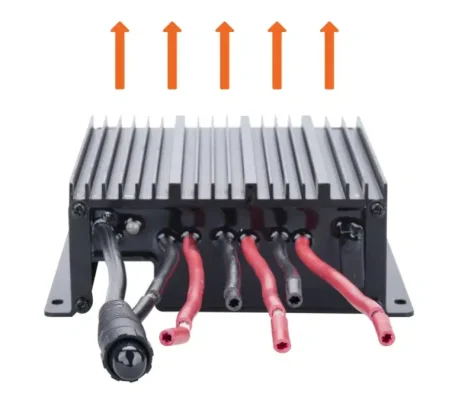

Designed for durability, the Tracer-CPN features an aluminum alloy heat dissipation enclosure and is rated IP68, with 1.5 meters of ingress protection for 72 hours. This ensures dependable operation across various environments. Its low noise and power consumption design guarantee quiet performance and energy efficiency.
Reliable and Safe Operation
The Tracer-CPN delivers reliable protection for your battery and load during disconnection, maintaining a constant equalization voltage output for both the battery and load. This prevents potential damage to the battery and load system.
Enhanced Design for Easy Installation and Improved Performance

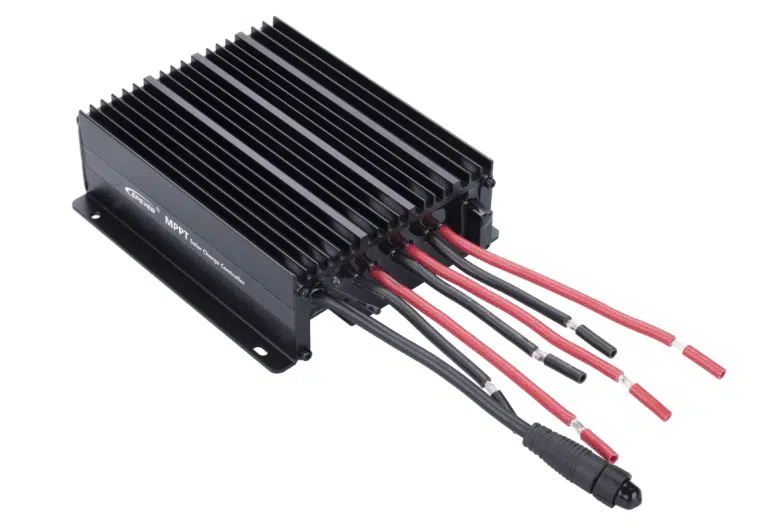

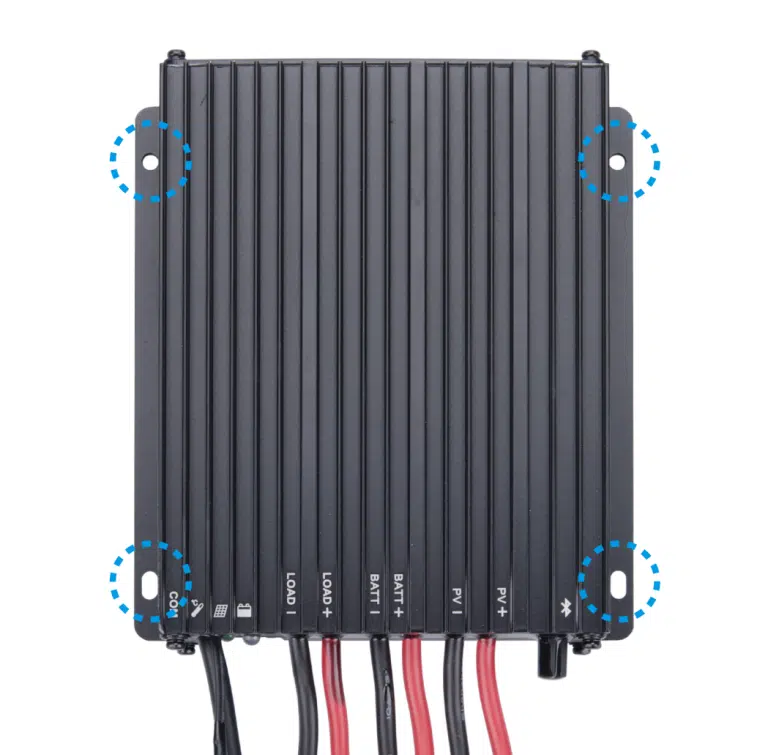

The Tracer-CPN showcases an upgraded cover design with upper and lower covers, a fixed circuit board, and ceramic heat dissipation material for superior thermal capacity. The circuit design includes fixing screws for increased lead pulling capability, while exposed mounting holes simplify installation.
Comprehensive Protective Functions
The Tracer-CPN is equipped with extensive electronic protection features, including overcharge, over-discharge, short circuit, overload, and reverse polarity protection.
Product specification
| Item | Tracer5206CPN/Tracer5206CPN (BLE) | Tracer7810CPN/Tracer7810CPN (BLE) | |
| Rated system voltage | 12/24VDC Auto( Lithium battery cannot automatically identify system voltage) | ||
| Battery work voltage range | 8 ~ 32VDC | ||
| Rated charge/discharge current | 20A | 30A | |
| Rated charge power | 260W/12V; 520W/24V | 390W/12V; 780W/24V | |
| Max. PV open circuit voltage | 60V (at minimum operating environment temperature) 46V( at 25℃ environment temperature ) | 100V (at minimum operating environment temperature) 92V( at 25℃ environment temperature ) | |
| MPP Voltage range | (Battery voltage +2V) ~ 36V | (Battery voltage +2V) ~ 72V | |
| Battery Type | Lead-acid battery: Sealed(Default) / Gel / Flooded/User; Lithium battery:LiFePO4/ Li-NiCoMn/User | ||
| Lead-acid | Equalize Charging Voltage | Sealed: 14.6V, Gel: No, Flooded: 14.8V, User: 9-17V (×2/24V) | |
| Boost Charging Voltage | Sealed: 14.4V, Gel: 14.2V, Flooded: 14.6V, User: 9-17V (×2/24V) | ||
| Float Charging Voltage | Sealed/Gel/Flooded: 13.8V, User: 9-17V (×2/24V) | ||
| Low Voltage Reconnect Voltage | Sealed/Gel/Flooded: 12.6V, User: 9-17V (×2/24V) | ||
| Low Voltage Disconnect Voltage | Sealed/Gel/Flooded: 11.1V, User: 9-17V (×2/24V) | ||
| Lithium | Boost Charging Voltage | LiFePO4: 14.5V, Li-NiCoMn: 12.5V, User: 9-17V (×2/24V) | |
| Low Voltage Reconnect Voltage | LiFePO4: 12.8V, Li-NiCoMn: 10.5V, User: 9-17V (×2/24V) | ||
| Low Voltage Disconnect Voltage | LiFePO4: 11.1V, Li-NiCoMn: 9.3V, User: 9-17V (×2/24V) | ||
| Self-consumption | ≤10mA(12V); ≤7mA(24V) | ≤15mA(12V); ≤9mA(24V) | |
| Temperature compensation coefficient | -3mV/℃/2V (Lithium batteries don’t have temperature compensation coefficient) | ||
| Communication | RS485/BLE | ||
| Work temperature | -40℃～+50℃ (Above 45℃, please operate in derating) | ||
| Enclosure | IP68 | ||
| Dimension (L x W x H) | Tracer5206CPN: 147mm × 130mm × 50mm Tracer5206CPN(BLE): 157mm × 130mm × 50mm | Tracer7810CPN: 155mm × 141mm × 51.5mm Tracer7810CPN(BLE): 165mm × 141mm × 51.5mm | |
| Mounting hole size | Φ4.5mm | Φ4.5mm | |
| Mounting size (L x W) | 121mm × 120mm | 132mm × 120mm | |
| Power cable (PV/BAT/LOAD) | PV:11AWG, BAT/LOAD: 10AWG | PV:11AWG, BAT/LOAD: 10AWG | |
| Net weight | 1.30kg | 1.59kg | |
